Power Distribution System





BCM (BODY CONTROL MODULE)

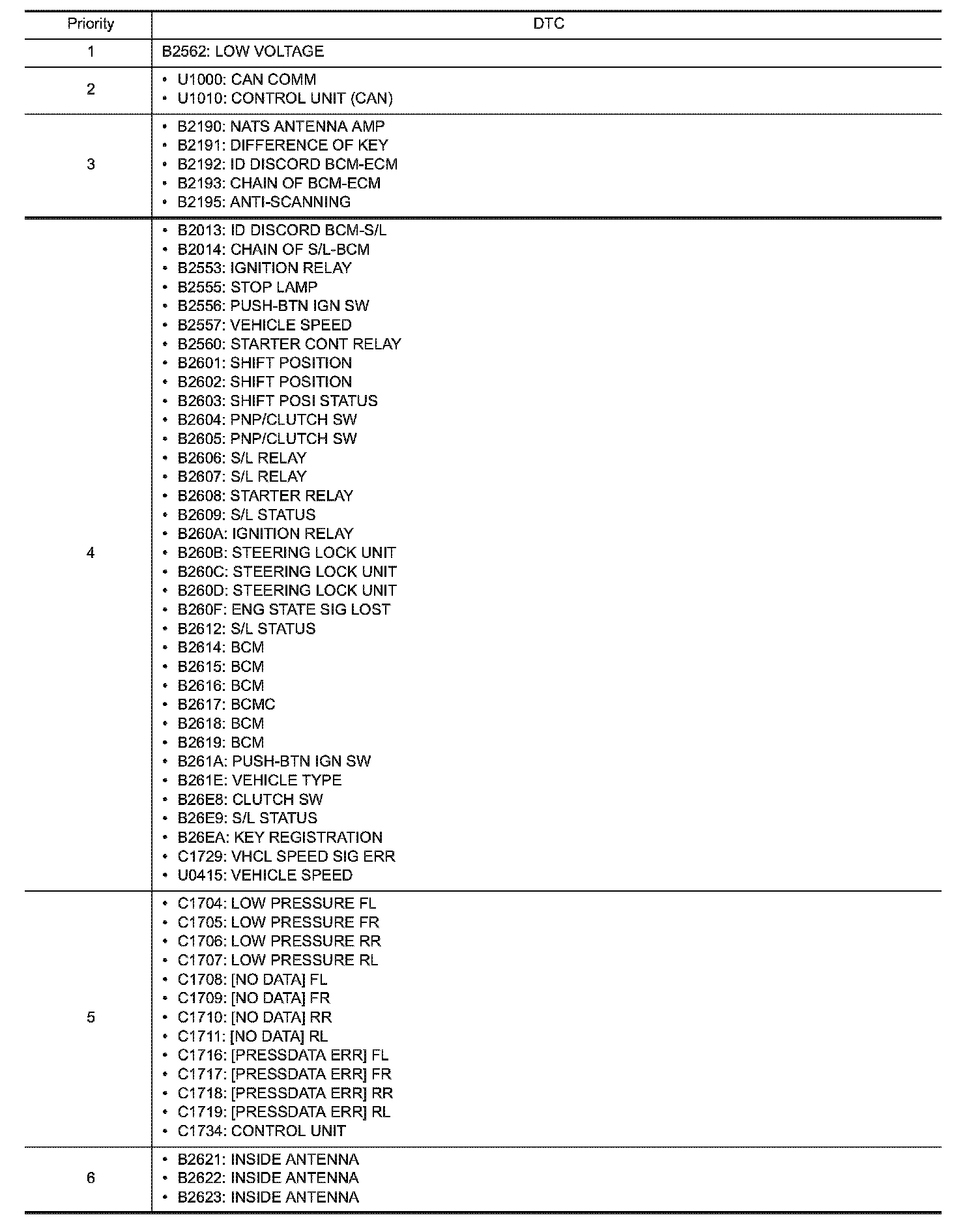

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
