P0615

P0615 STARTER RELAY





Description
TCM prohibits cranking other than at "P" or "N" position.




DTC Logic

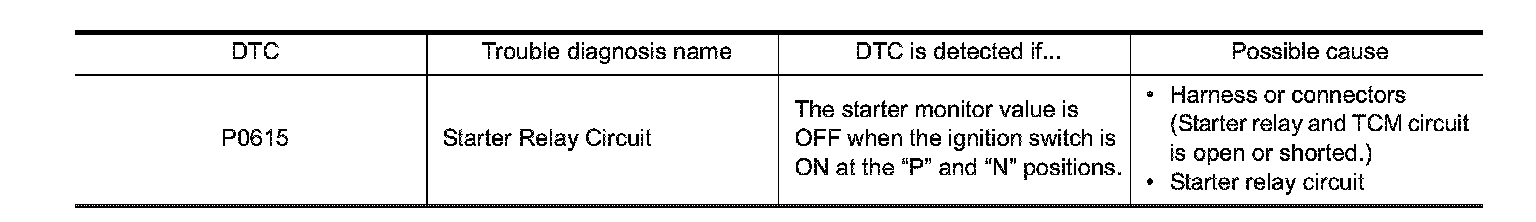

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.
2.CHECK DTC DETECTION
With CONSULT-III
1. Shift the selector lever to "P" and "N" positions.
2. Turn ignition switch ON and wait 2 seconds or more.
3. Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "P0615" detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK STARTER RELAY SIGNAL
1. Turn ignition switch ON.

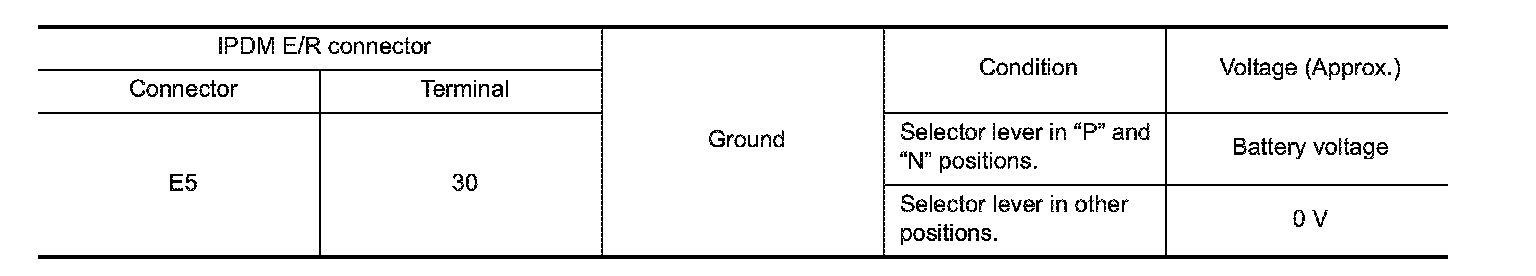

2. Check voltage between IPDM E/R connector terminal and ground.





Is the inspection result normal?
YES - Check starter relay circuit. [1][2]Electrical Diagrams.
NO - GO TO 2.
2. CHECK HARNESS BETWEEN A/T ASSEMBLY AND IPDM E/R (PART 1)
1. Turn ignition switch OFF.
2. Disconnect A/T assembly connector and IPDM E/R connector.

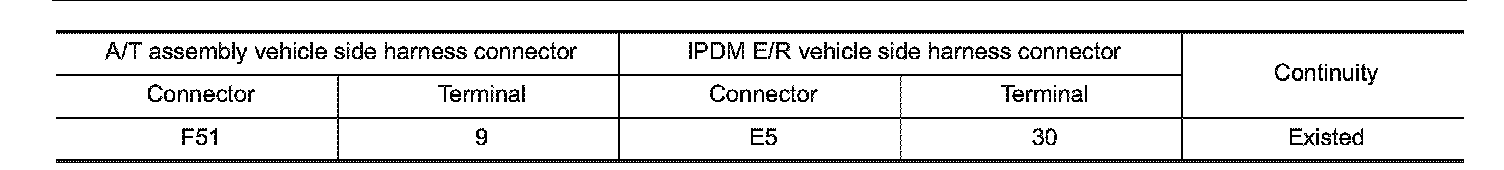

3. Check continuity between A/T assembly vehicle side harness connector terminal and IPDM E/R vehicle side harness connector terminal.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace damaged parts.
3.CHECK HARNESS BETWEEN A/T ASSEMBLY AND IPDM E/R (PART 2)

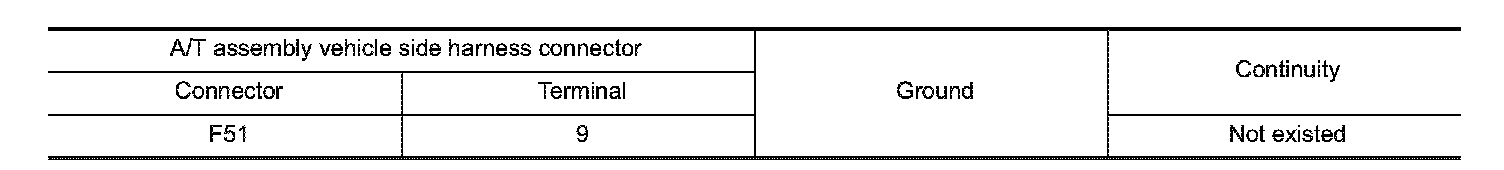

Check continuity between A/T assembly vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace damaged parts.
4.CHECK JOINT CONNECTOR
1. Remove joint connector. Exploded View.

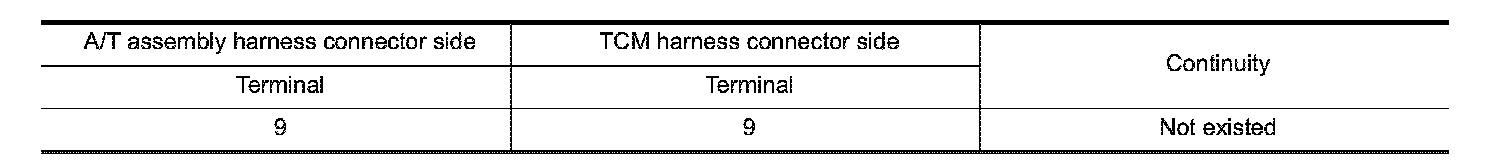

2. Check the continuity between joint connector terminals.





Is the inspection result normal?
YES - GO TO 5.
NO - Repair or replace damaged parts.
5.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
YES - Replace control valve & TCM. Removal And Installation.
NO - Repair or replace damaged parts.
