P0524
P0524 ENGINE OIL PRESSURE
DTC Logic
DTC DETECTION LOGIC
NOTE:
If DTC P0524 is displayed with DTC P0075 or P0081, first perform the trouble diagnosis for DTC P0075, P0081. P0075
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING-I
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10 V and 16 V at idle.
- GO TO 2.
2.PRECONDITIONING-II
Check oil level and oil pressure. Inspection.
Is the inspection result normal?
YES - GO TO 3.
NO - Go to Inspection.
3.PERFORM DTC CONFIRMATION PROCEDURE
1. Select "DATA MONITOR" mode with CONSULT-III.

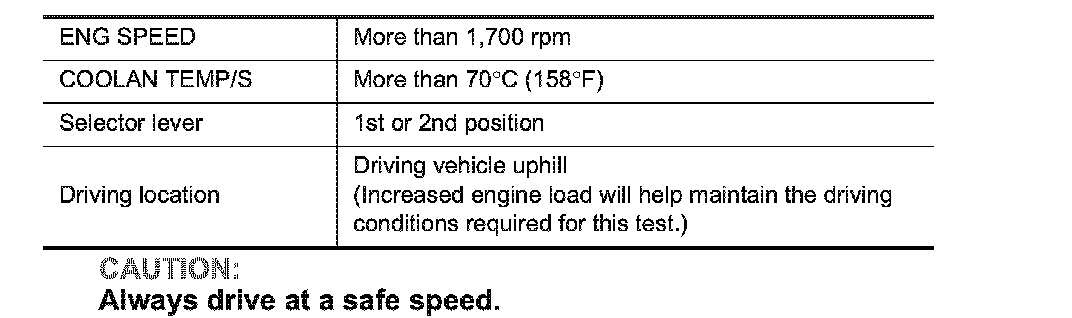

2. Maintain the following conditions for at least 20 consecutive seconds.
CAUTION:
Always drive at a safe speed.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES - Go to SEE Diagnosis Procedure
NO - INSPECTION END
Diagnosis Procedure
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illuminated.
Is oil pressure warning lamp illuminated?
YES - Go to Inspection.
NO - GO TO 2.
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
P0021.
Is the inspection result normal?
YES - GO TO 3.
NO - Replace malfunctioning intake valve timing control solenoid valve. Exploded View.
3.CHECK CRANKSHAFT POSITION SENSOR (POS)
P0335.
Is the inspection result normal?
YES - GO TO 4.
NO - Replace crankshaft position sensor (POS). Exploded View.
4.CHECK CAMSHAFT POSITION SENSOR (PHASE)
P0340.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace malfunctioning camshaft position sensor (PHASE). Exploded View.
5.CHECK CAMSHAFT (INTAKE)
Check the following.
- Accumulation of debris to the signal plate of camshaft front end
- Chipping signal plate of camshaft front end
Is the inspection result normal?
YES - GO TO 6.
NO - Remove debris and clean the signal plate of camshaft front end or replace camshaft. Disassembly And Assembly.
6.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
YES - Check timing chain installation. Removal And Installation.
NO - GO TO 7.
7.CHECK LUBRICATION CIRCUIT

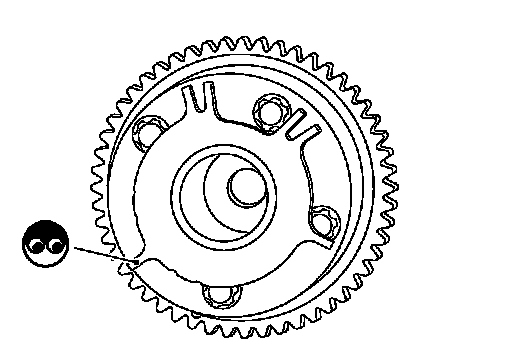

Perform "Inspection of Camshaft Sprocket (INT) Oil Groove". Inspection.
Is the inspection result normal?
YES - GO TO 8.
NO - Clean lubrication line.
8.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
Component Inspection
1.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I
1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.

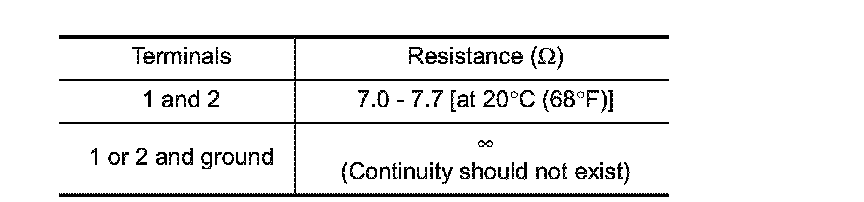

3. Check resistance between intake valve timing control solenoid valve terminals as per the following.
Is the inspection result normal?
YES - GO TO 2.
NO - Replace malfunctioning intake valve timing control solenoid valve. Exploded View.
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II
1. Remove intake valve timing control solenoid valve.

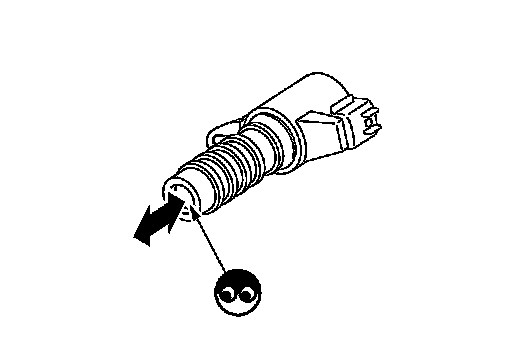

2. Provide 12 V DC between intake valve timing control solenoid valve terminals 1 and 2, and then interrupt it. Make sure that the plunger moves as shown in the figure.
CAUTION:
Never apply 12 V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control solenoid valve is removed.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace malfunctioning intake valve timing control solenoid valve. Exploded View.
