C1A33

C1A33 CAN TRANSMISSION ERROR





Description
ICC sensor integrated unit transmits the signal required by the ICC system control to ECM via CAN communication.




DTC Logic

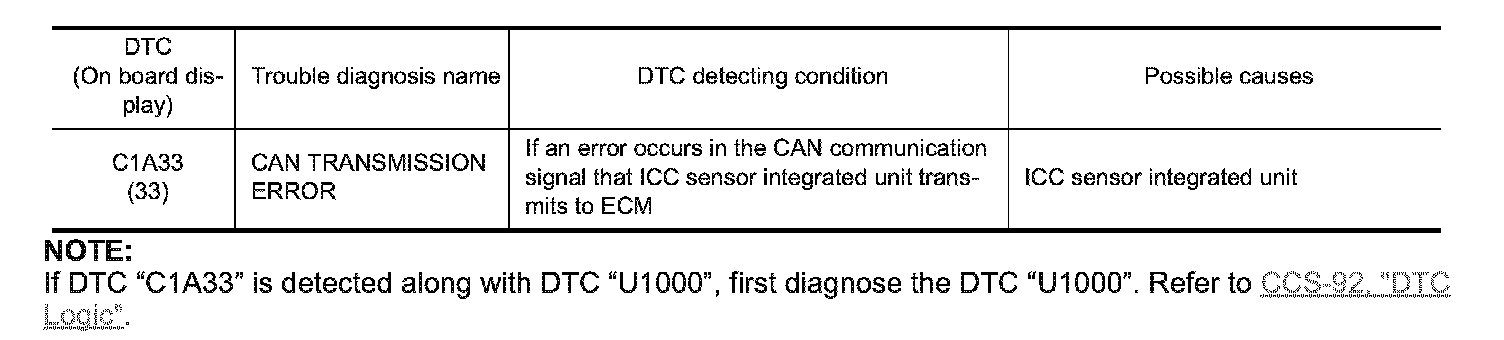

DTC DETECTION LOGIC






NOTE:
If DTC "C1A33" is detected along with DTC "U1000", first diagnose the DTC "U1000". Cruise Control.

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A33" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A33" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1A33" in "Self Diagnostic Result" of "ICC/ADAS".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. Cruise Control.
NO - Replace the ICC sensor integrated unit. Exploded View.




Special Repair Requirement

DESCRIPTION
Perform the action test after adjusting the laser beam aiming of ICC sensor integrated unit when the following operation is performed.
- Removal and installation of ICC sensor integrated unit
- Replacement of ICC sensor integrated unit

SPECIAL REPAIR REQUIREMENT
1.LASER BEAM AIMING ADJUSTMENT OF ICC SENSOR INTEGRATED UNIT
Adjust the laser beam aiming of the ICC sensor integrated unit. Description.
- GO TO 2.
2.CHECK ICC SYSTEM
1. Erase the "Self Diagnostic Result", and then perform "All DTC Reading" again after performing the action test. ( Description for action test.)
2. Check that the ICC system is normal.
- WORK END
