C1A26

C1A26 ECD MODE MALFUNCTION





Description
ECD (ELECTRONICALLY CONTROLLED DECELERATION)
- Receives deceleration degree commandment value signal from ICC sensor integrated unit, and controls brake fluid pressure with the motor [built in ABS actuator and electric unit (control unit)].
- ECD control-related signals are transmitted by ABS actuator and electric unit (control unit) to ICC sensor integrated unit via CAN communication.




DTC Logic

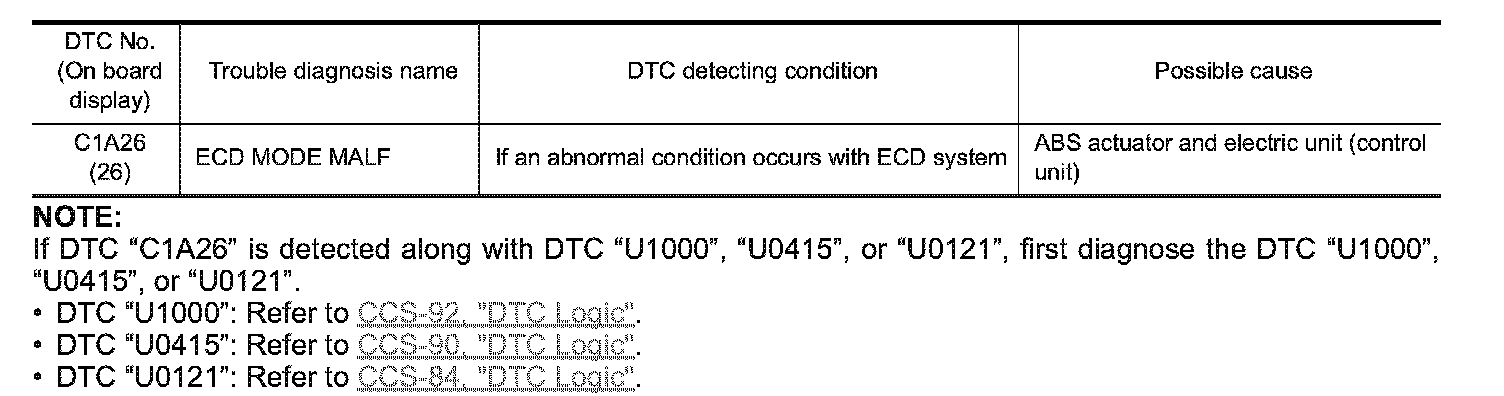

DTC DETECTION LOGIC






NOTE:
If DTC "C1A26" is detected along with DTC "U1000", "U0415", or "U0121", first diagnose the DTC "U1000", "U0415", or "U0121".
- DTC "U1000": Cruise Control.
- DTC "U0415": VDC CAN 1.
- DTC "U0121": U0121.

DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Start the engine.
2. Wait for approximately 1 minute after turning the MAIN switch of ICC system ON.
3. Perform "All DTC Reading" with CONSULT-III.
4. Check if the "C1A26" is detected as the current malfunction in "Self Diagnostic Result" of "ICC/ADAS".
Is "C1A26" detected as the current malfunction?
YES - SEE Diagnosis Procedure.
NO - Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000", "U0415", or "U0121" is detected other than "C1A26" in "Self Diagnostic Result" of "ICC/ADAS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - GO TO 2.
2.PERFORM SELF-DIAGNOSIS OF ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Check if any DTC is detected in "Self Diagnostic Result" of "ABS".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Testing and Inspection.
NO - Replace ICC sensor integrated unit. Exploded View.




Special Repair Requirement

DESCRIPTION
Perform the action test after adjusting the laser beam aiming of ICC sensor integrated unit when the following operation is performed.
- Removal and installation of ICC sensor integrated unit
- Replacement of ICC sensor integrated unit

SPECIAL REPAIR REQUIREMENT
1.LASER BEAM AIMING ADJUSTMENT OF ICC SENSOR INTEGRATED UNIT
Adjust the laser beam aiming of the ICC sensor integrated unit. Description.
- GO TO 2.
2.CHECK ICC SYSTEM
1. Erase the "Self Diagnostic Result", and then perform "All DTC Reading" again after performing the action test. ( Description for action test.)
2. Check that the ICC system is normal.
- WORK END
