C1126

C1120, C1122, C1124, C1126 IN ABS SOL





Description
The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the signals transmitted by the ABS actuator and electric unit (control unit).




DTC Logic

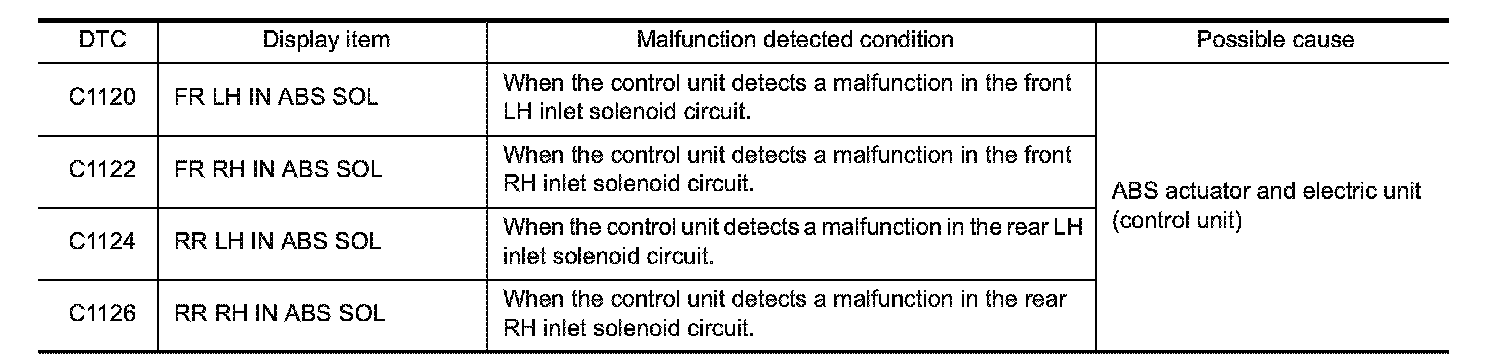

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
1. Turn the ignition switch ON.
2. Perform self-diagnosis for "ABS" with CONSULT-III.
Is DTC "C1120", "C1122", "C1124" or "C1126" detected?
YES - Proceed to diagnosis procedure. SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK SOLENOID POWER SUPPLY
1. Turn the ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) harness connector.
3. Check the 30A fuse (L).

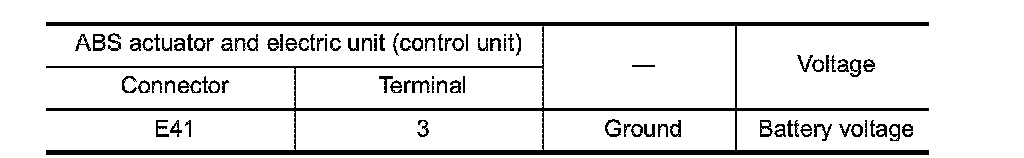

4. Check the voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Perform the trouble diagnosis for battery power supply circuit. .
2.CHECK SOLENOID GROUND

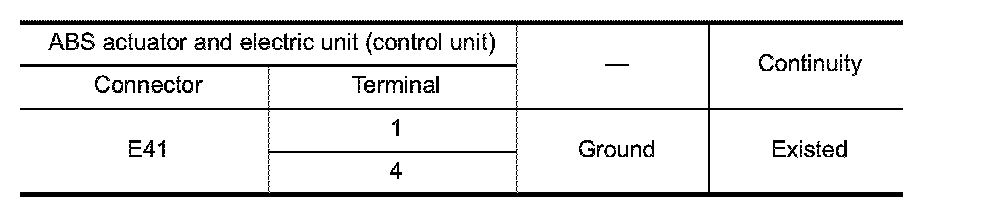

Check the continuity between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Exploded View VDC/TCS/ABS.
NO - Repair or replace error-detected parts.




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Special Repair Requirement
- END
