B26EA

B26EA KEY REGISTRATION





Description
When the registered Intelligent Key is carried, the door lock/unlock operation and the push-button ignition switch operation become possible.




DTC Logic

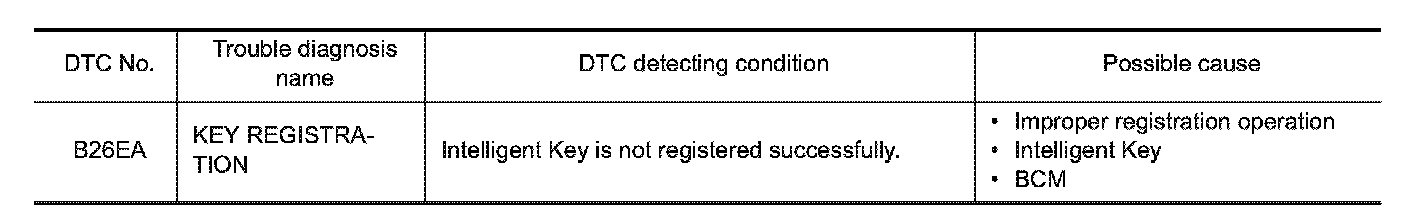

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Perform initialization using CONSULT-III. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM INITIALIZATION
1. Perform initialization using CONSULT-III. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - GO TO 2.
NO - INSPECTION END
2. REPLACE INTELLIGENT KEY
1. Replace Intelligent Key. Reregister all Intelligent Keys
2. Perform initialization using CONSULT-III. For initialization, refer to "CONSULT-III Operation Manual
NATS-IVIS/NVIS".
3. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Replace BCM. Removal And Installation.
NO - INSPECTION END
