B2606

B2606 STEERING LOCK RELAY





Description
The steering lock relay ON signal is transmitted to IPDM E/R by BCM via CAN communication.
IPDM E/R turns the steering lock relay ON and transmits the release of the steering to BCM.




DTC Logic

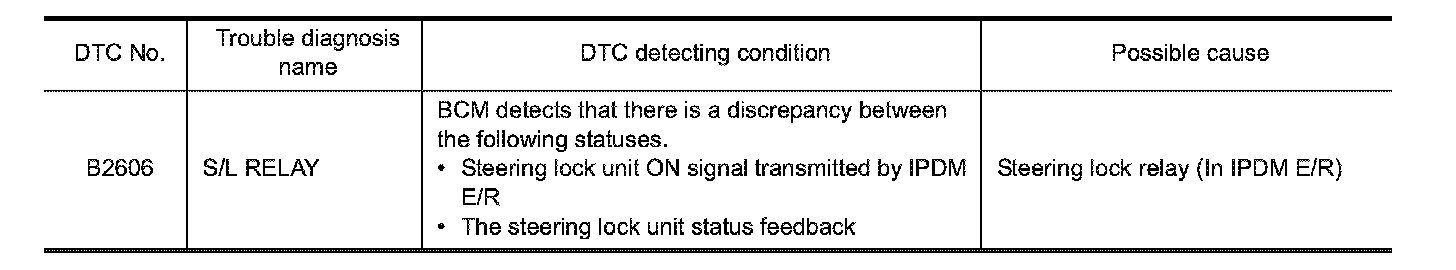

DTC DETECTION LOGIC

NOTE:
- If DTC B2606 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Body Control System.
- If DTC B2606 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Body Control System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC WITH IPDM E/R
Check "Self-diagnosis result" using CONSULT-III. Testing and Inspection.
Is the inspection result normal?
YES - GO TO 2.
NO - Replace IPDM E/R. Service and Repair.
2.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
