B2453

B2453 BR STROKE SEN CIRC





Description
- It changes voltage according to brake pedal depressed amount and sends the signal to pre-crash seat belt control unit.
- There are 2 signals (brake pedal stroke sensor 1 and 2) sent from the brake pedal stroke sensor. Pre-crash seat belt control unit judges the stroke amount and the speed of the brake pedal according to the voltage of the signal sent by each side.




DTC Logic

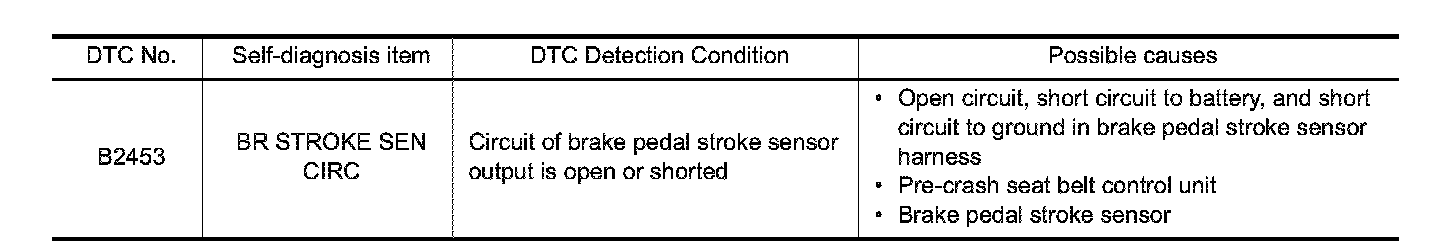

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.SELF-DIAGNOSIS WITH PRE-CRASH SEAT BELT CONTROL UNIT
1. Turn ignition switch ON.
2. Check "Self-diagnostic result" with CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK PRE-CRASH SEAT BELT CONTROL UNIT INPUT SIGNAL
1. Turn ignition switch ON.
2. Select "B PEDAL SIG1" and "B PEDAL SIG2" in "DATA MONITOR" mode with CONSULT-III.

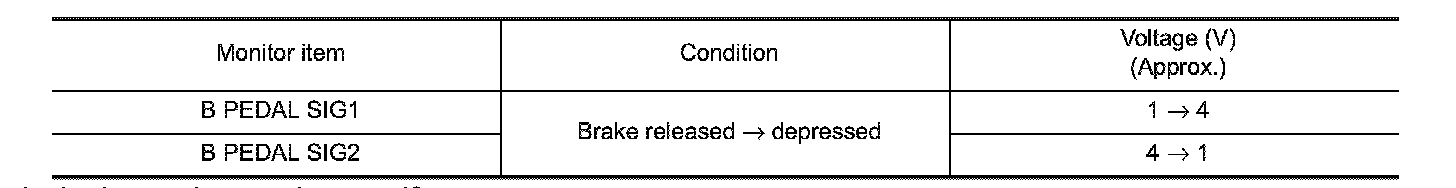

3. Check "B PEDAL SIG1" and "B PEDAL SIG2" indication under the following conditions.





Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 2.
2.CHECK BRAKE PEDAL STROKE SENSOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect brake pedal stroke sensor connector.

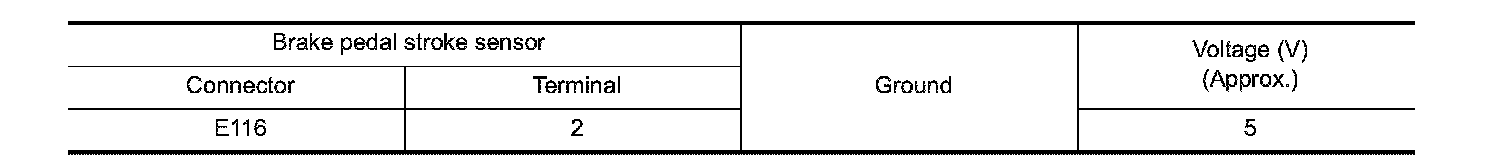

3. Check voltage between brake pedal stroke sensor harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 4.
3.CHECK BRAKE PEDAL STROKE SENSOR CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.

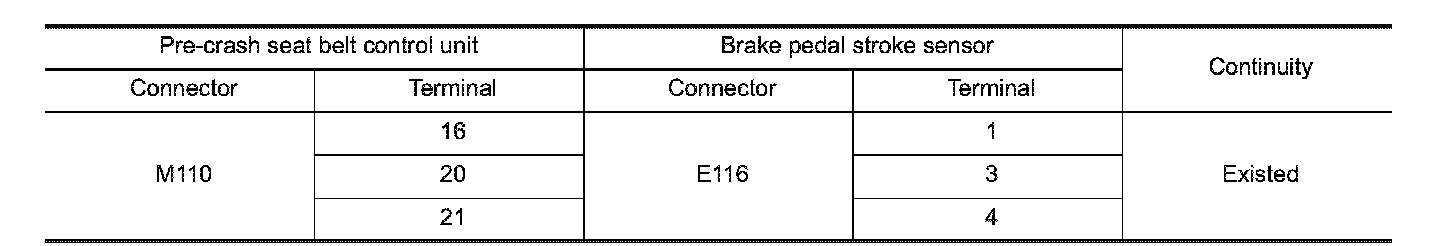

2. Check continuity between pre-crash seat belt control unit harness connector and brake pedal stroke sensor harness connector.

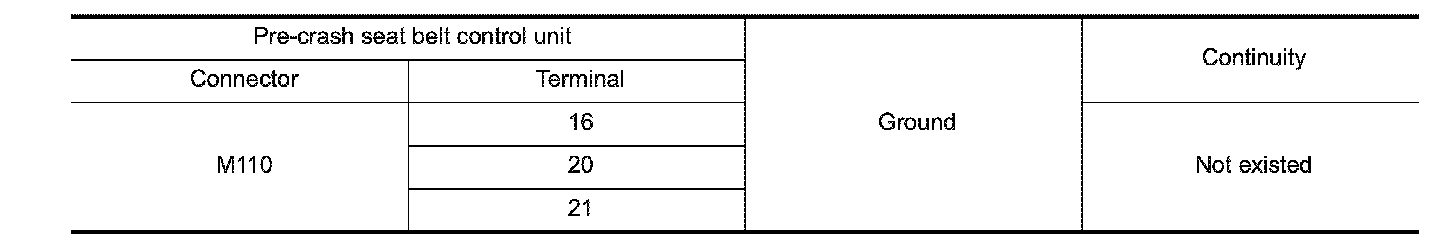

3. Check continuity between pre-crash seat belt control unit harness connector and ground.





Is the inspection result normal?
YES - SEE Component Inspection.
NO - Repair or replace harness between pre-crash seat belt control unit and brake pedal stroke sensor.
4.CHECK BRAKE PEDAL STROKE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect pre-crash seat belt control unit connector.

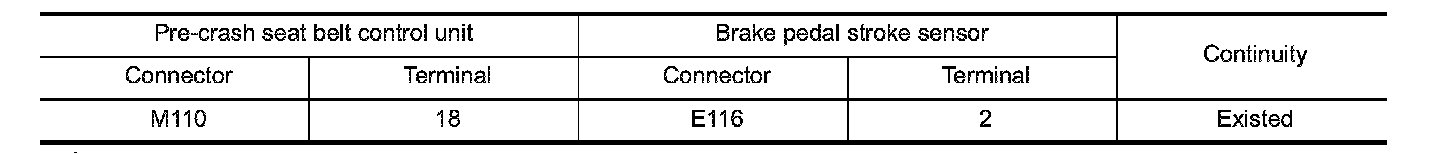

2. Check continuity between pre-crash seat belt control unit harness connector and brake pedal stroke sensor harness connector.





3. Check continuity between pre-crash seat belt control unit and ground.





Is the inspection result normal?
YES - Replace pre-crash seat belt control unit. Removal And Installation.
NO - Repair or replace harness between pre-crash seat belt control unit and brake pedal stroke sensor.
5.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END




Component Inspection
1.CHECK BRAKE PEDAL STROKE SENSOR
1. Turn ignition switch OFF.
2. Disconnect brake pedal stroke sensor connector.

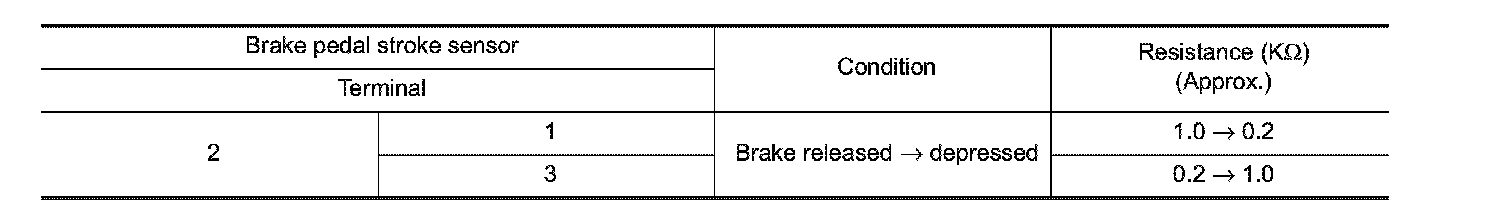

3. Check that continuity between brake pedal stroke sensor when performing the brake operation.





Is the inspection result normal?
YES - Brake pedal stroke sensor system is normal.
NO - Replace brake pedal stroke sensor. Removal And Installation.
