B2195

B2195 ANTI-SCANNING





Description
When ignition switch is turned ON, BCM performs ID verification with ECM. If ID verification that is out of the specified specification is detected, BCM prohibits further ID verification and engine cranking.




DTC Logic

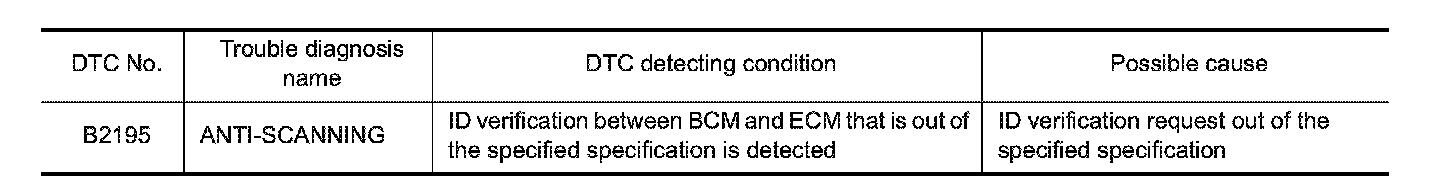

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULT-1
1. Perform "Self-diagnosis result" of BCM using CONSULT-III.
2. Erase DTC.
3. Perform DTC Confirmation Procedure. SEE DTC Logic.
Is DTC 2195 detected?
YES - GO TO 2.
NO - INSPECTION END
2.CHECK EQUIPMENT OF THE VEHICLE
Check that unspecified accessory part related to engine start is not installed.
Is unspecified accessory part related to engine start installed?
YES - GO TO 3.
NO - Replace BCM. Removal And Installation.
3.CHECK SELF-DIAGNOSIS RESULT-2
1. Obtain the customers approval to remove unspecified accessory part related to engine start, and then remove it.
2. Perform "Self-diagnosis result" of BCM using CONSULT-III.
3. Erase DTC.
4. Perform DTC Confirmation Procedure. SEE DTC Logic.
Is DTC 2195 detected?
YES - Replace BCM. Removal And Installation.
NO - INSPECTION END
