B2191

B2191 DIFFERENCE OF KEY





Description
Performs ID verification through BCM and Intelligent Key when push-button ignition switch is pressed.
Prohibits the release of steering lock (models with steering lock unit) or start of engine when an unregistered
ID of Intelligent Key is used.




DTC Logic

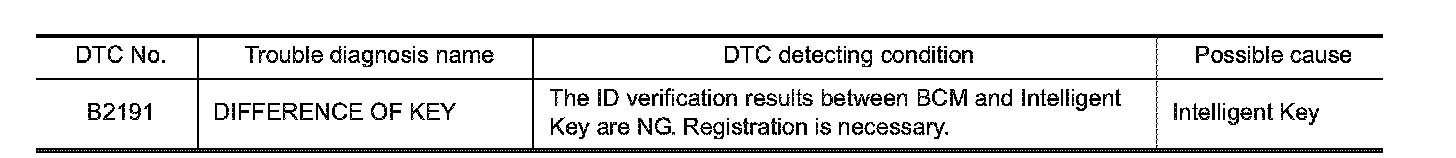

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Press the push-button ignition switch.
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM INITIALIZATION
Perform initialization using CONSULT-III. Reregister all Intelligent Keys.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Can the system be initialized and can the engine be started with reregistered Intelligent Key?
YES - INSPECTION END
NO - GO TO 2.
2.REPLACE INTELLIGENT KEY
1. Replace Intelligent Key.
2. Perform initialization using CONSULT-III.
For initialization and registration of Intelligent Key, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Can the system be initialized and can the engine be started with reregistered Intelligent Key?
YES - INSPECTION END
NO - GO TO 3.
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
