B210E

B210E STARTER RELAY





Description
Located in IPDM E/R, the starter relay runs the starter motor. The starter relay is turned ON by the BCM when the ignition switch is in the START position. IPDM E/R transmits the starter relay ON signal to BCM via CAN communication.




DTC Logic

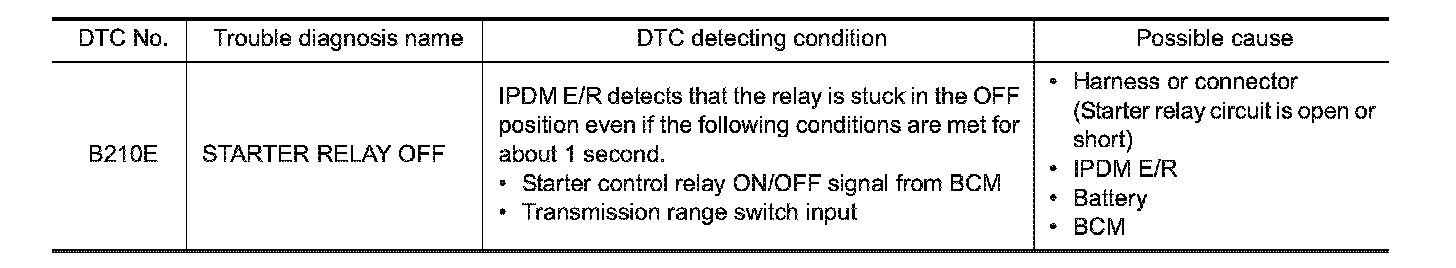

DTC DETECTION LOGIC

NOTE:
- If DTC B210E is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. IPDM E/R.
- If DTC B210E is displayed with DTC B2110 for IPDM E/R, first perform the trouble diagnosis for DTC B2110. B2110.
- When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the DTC B210F may be detected.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions and wait 1 second or more.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK STARTER RELAY OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect BCM connector.

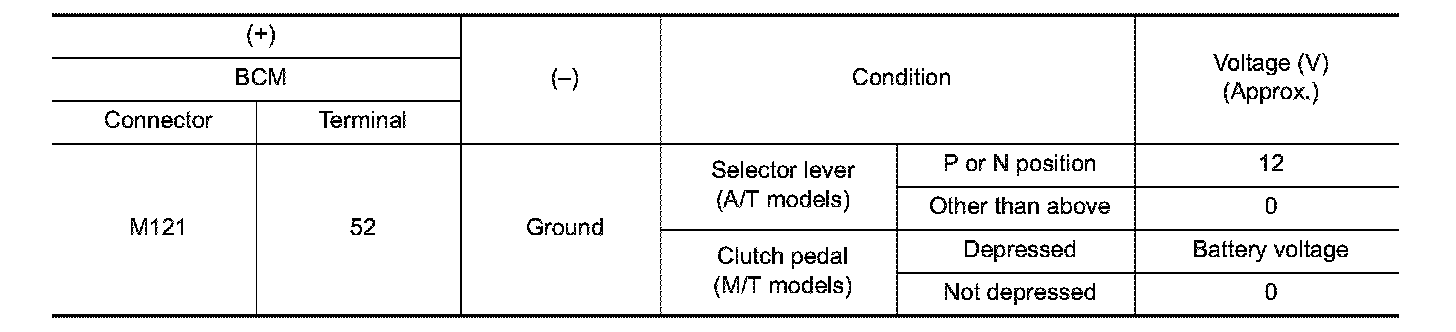

3. Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK STARTER RELAY OUTPUT SIGNAL CIRCUIT
1. Disconnect IPDM E/R connector.

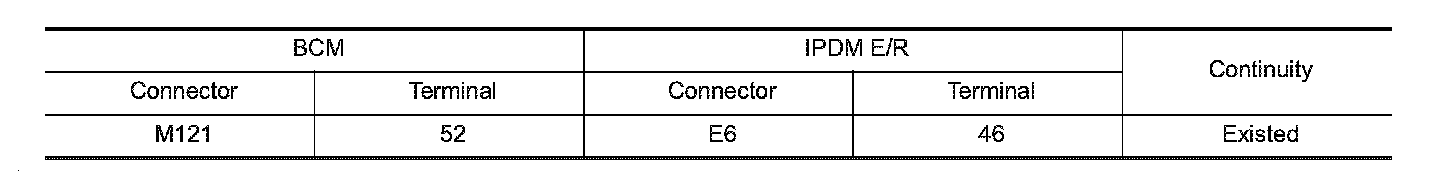

2. Check continuity between BCM harness connector and IPDM E/R harness connector.

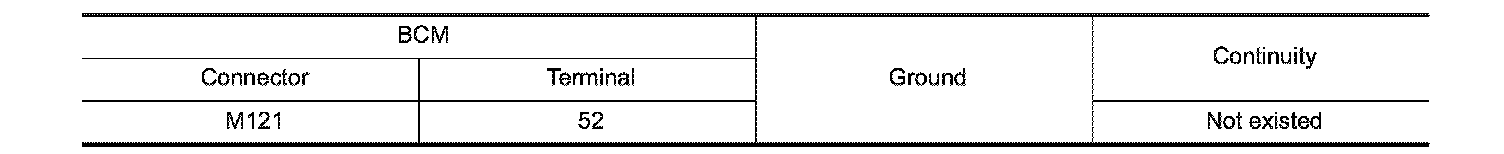

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Service and Repair.
NO - Repair or replace harness.
3.CHECK STARTER RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

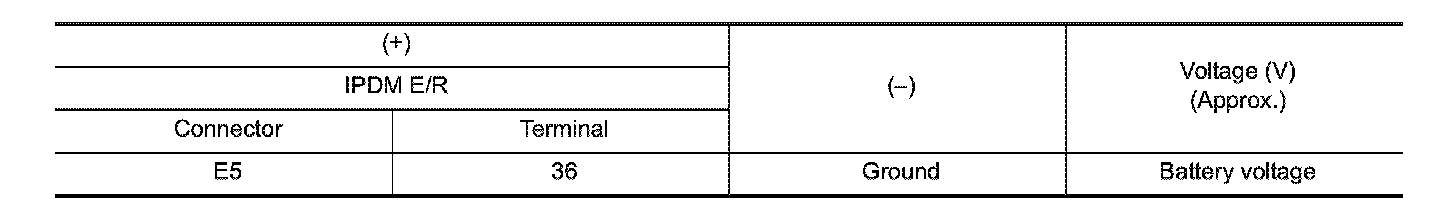

3. Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Check harness for open or short between IPDM E/R and battery. IPDM E/R (Intelligent Power Distribution Module Engine Room).
4.REPLACE BCM
1. Replace BCM. Special Repair Requirement.
2. Perform DTC CONFIRMATION PROCEDURE. SEE DTC Logic.
Is the inspection result normal?
YES - INSPECTION END
NO - Replace IPDM E/R. Service and Repair.
