B2013

B2013 STEERING LOCK UNIT





Description
BCM performs the ID verification with the steering lock unit and releases the steering lock if both BCM and steering lock unit ID are same. BCM starts the communication with the steering lock unit when Intelligent Key is carried into the passenger compartment and the push-button ignition switch is pressed.




DTC Logic

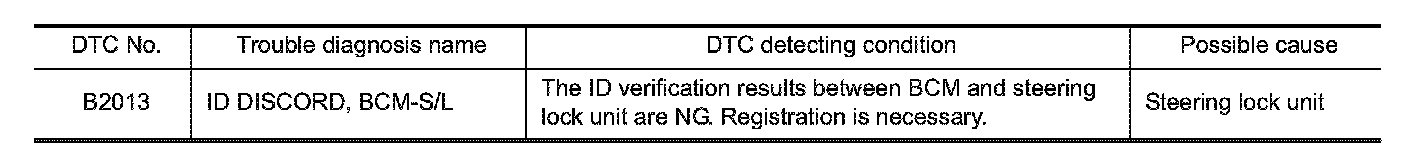

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Lock steering.
2. Press the push-button ignition switch.
3. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM INITIALIZATION
Perform initialization using CONSULT-III.
For initialization, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Does steering lock operate?
YES - INSPECTION END
NO - GO TO 2.
2.REPLACE STEERING LOCK UNIT
1. Replace steering lock unit.
2. Perform initialization using CONSULT-III.
For initialization, refer to "CONSULT-III Operation Manual NATS-IVIS/NVIS".
Does steering lock operate?
YES - INSPECTION END
NO - GO TO 3.
3.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
