B1702

B1702 RETRACTABLE HARD TOP CONTROL UNIT





DTC Logic

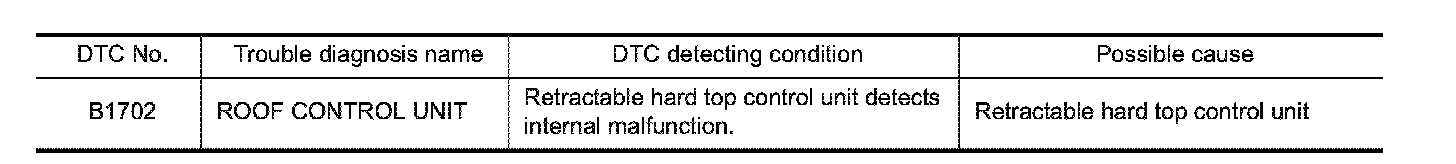

DTC DETECTION LOGIC

NOTE:
If two or more DTCs are detected, Retractable Hard Top Control Unit, and determine trouble diagnosis order.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check "Self-Diagnostic Result" of "RETRACTABLE HARD TOP" using CONSULT-III.
Is DTC detected?
YES - SEE Diagnosis Procedure.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK SELF DIAGNOSTIC RESULT
1. Turn ignition switch OFF.
2. Replace retractable hard top control unit. Service and Repair.
3. Perform DTC Confirmation Procedure. SEE DTC Logic.
- INSPECTION END
