Rear Final Drive R200





REAR FINAL DRIVE ASSEMBLY


System Diagram

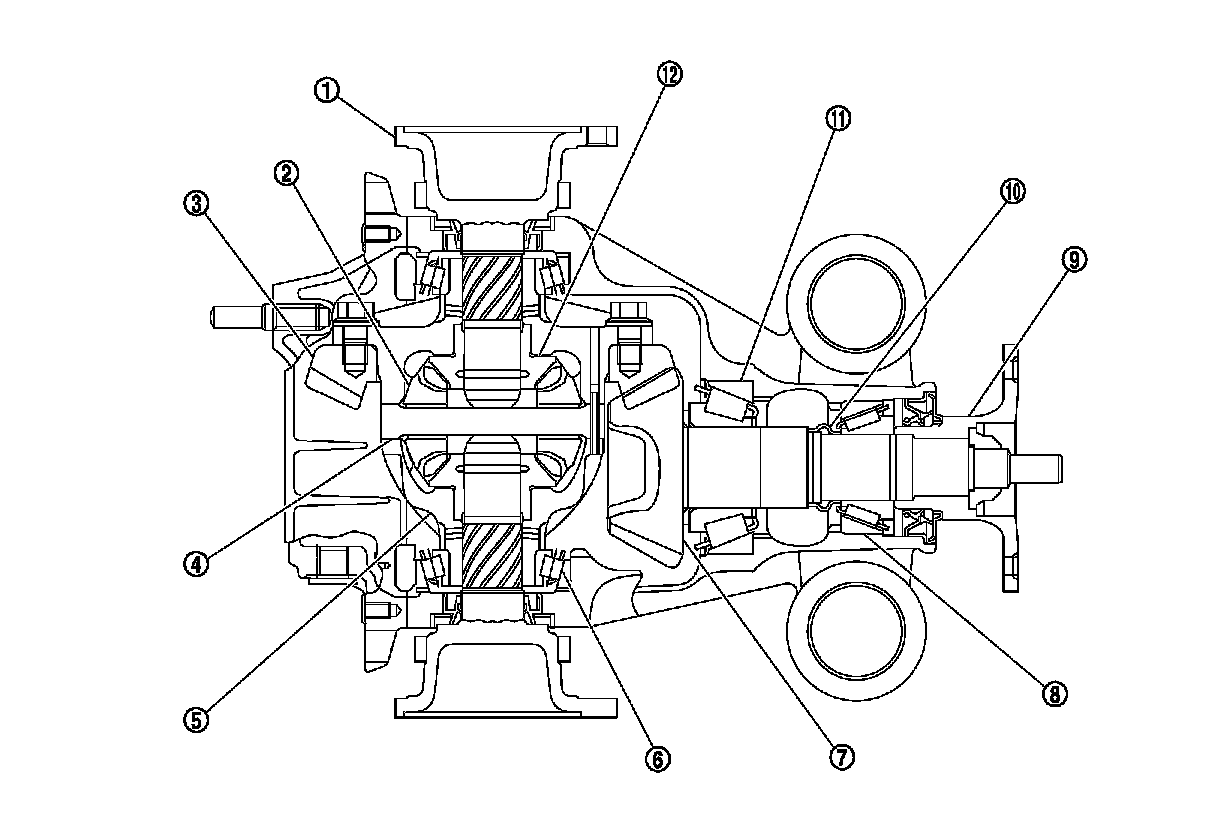

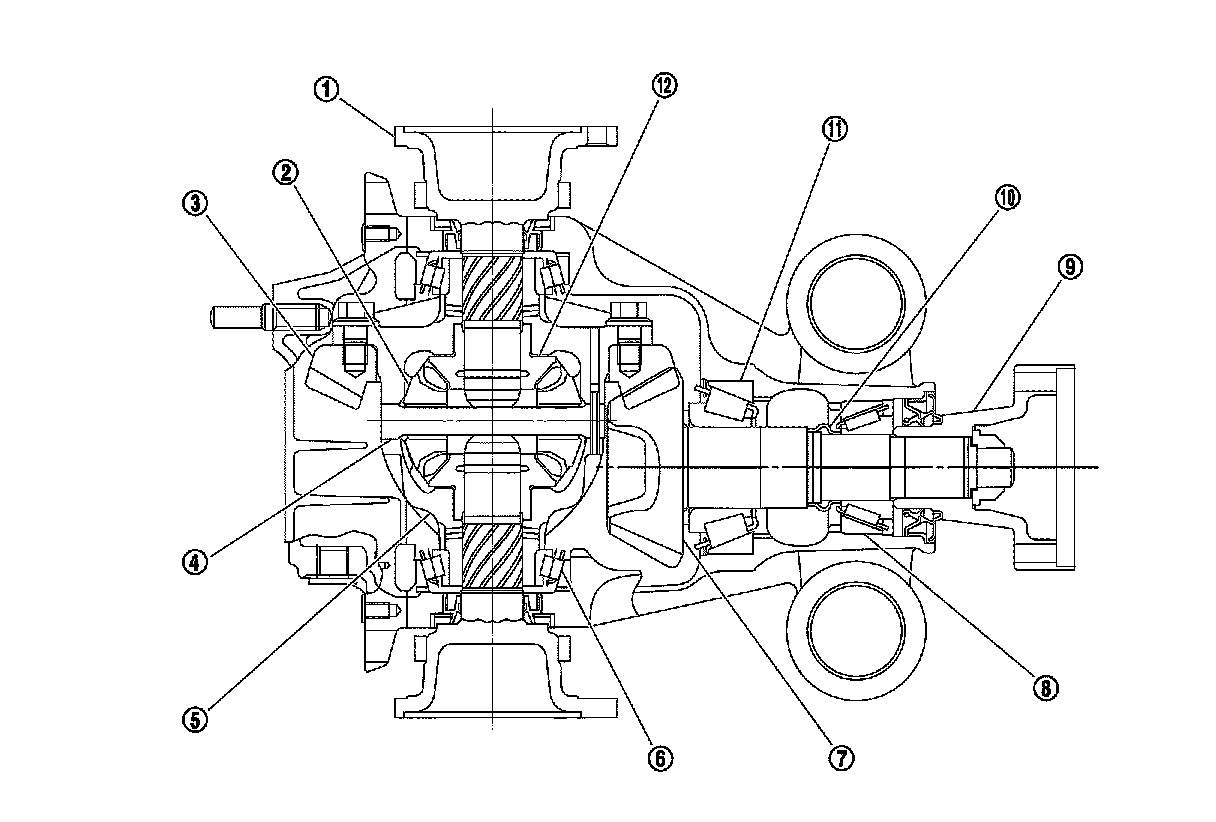

CROSS-SECTIONAL VIEW

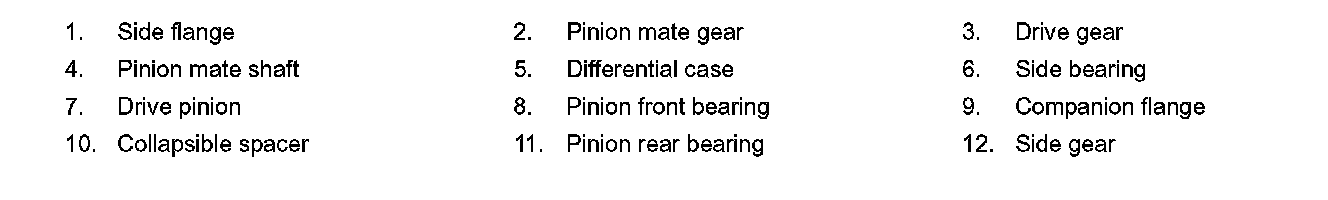

2WD










AWD
