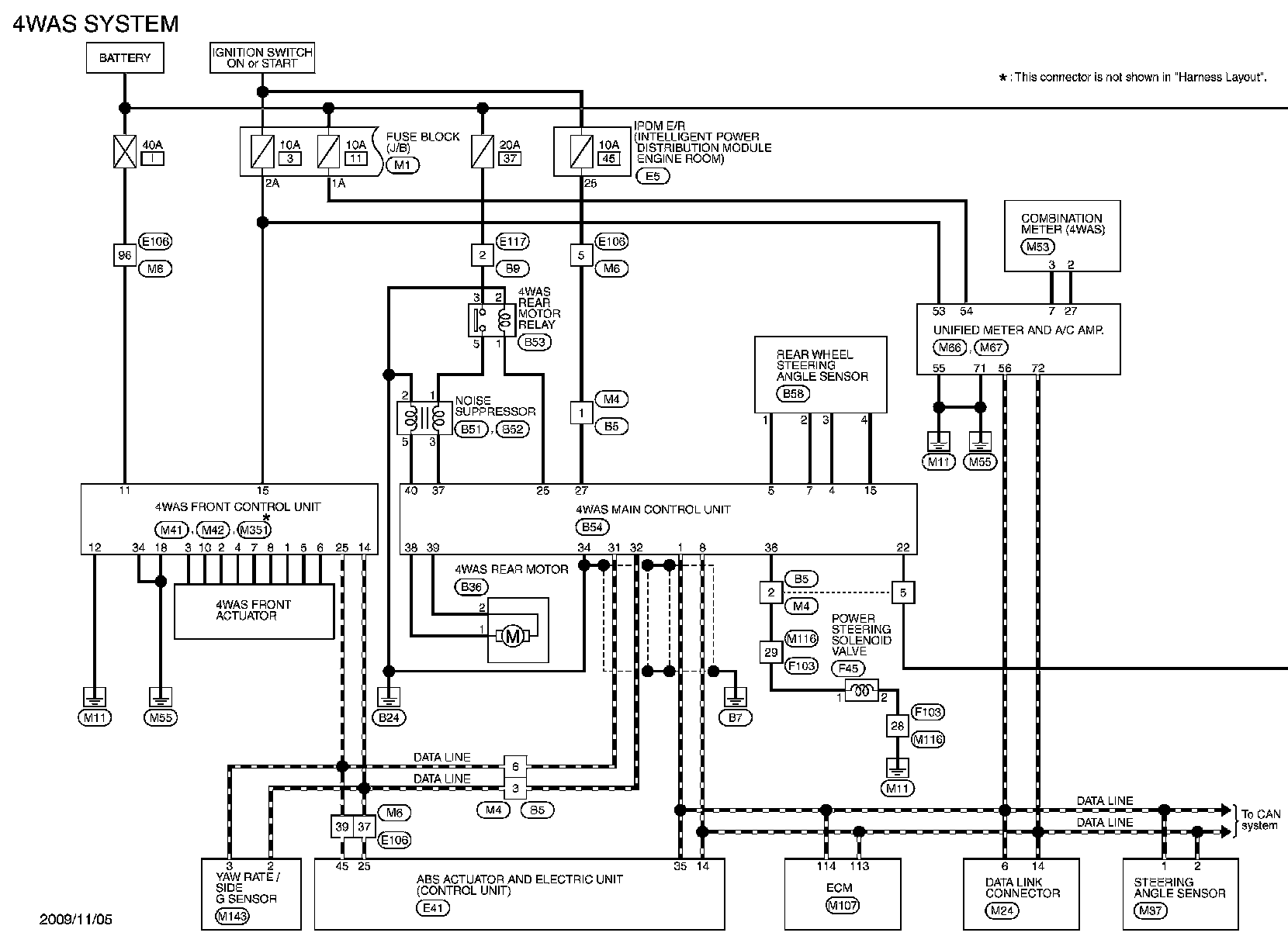

4WAS System





4WAS FRONT CONTROL UNIT

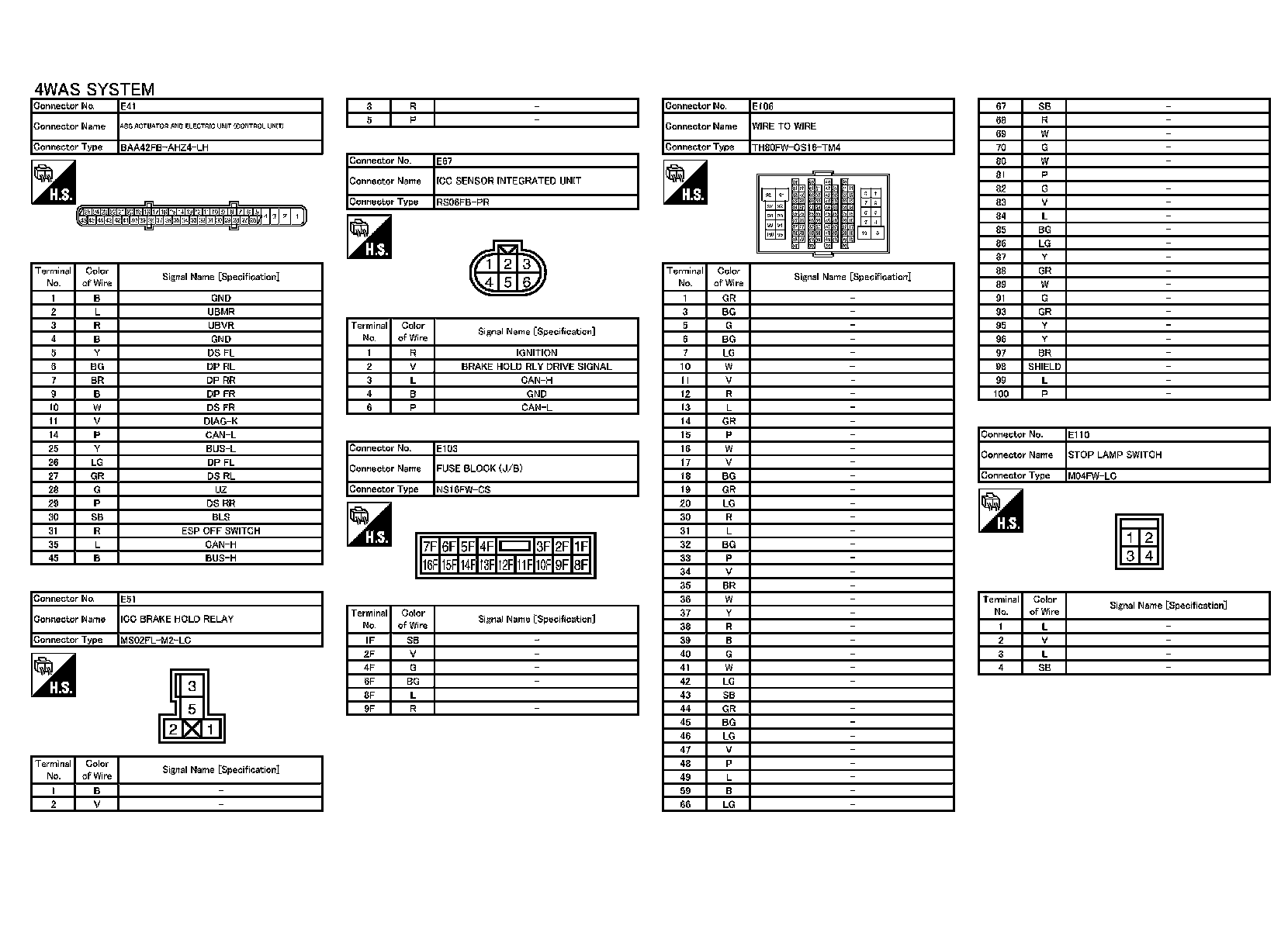

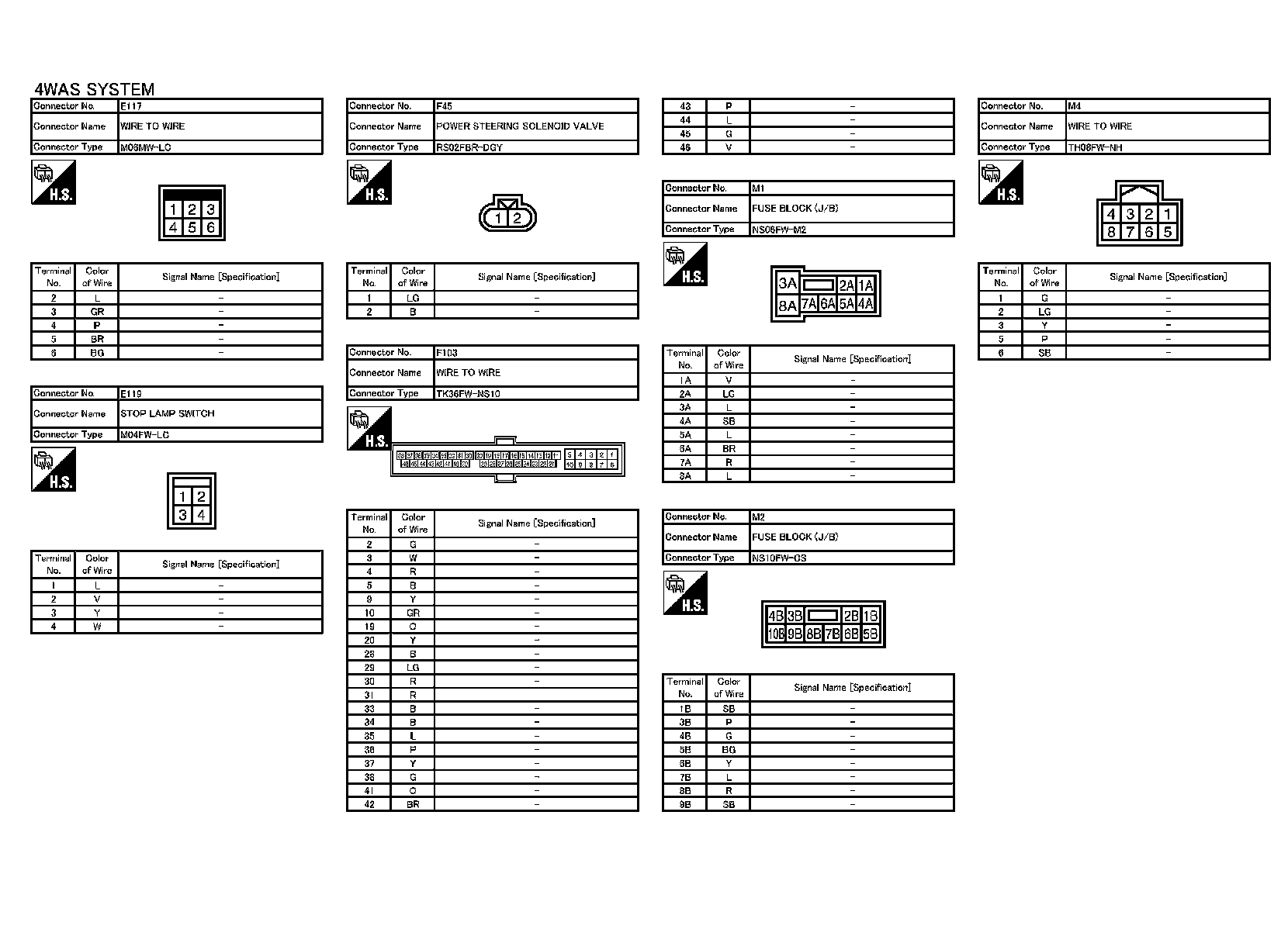

Wiring Diagram - 4WAS SYSTEM -









































4WAS MAIN CONTROL UNIT

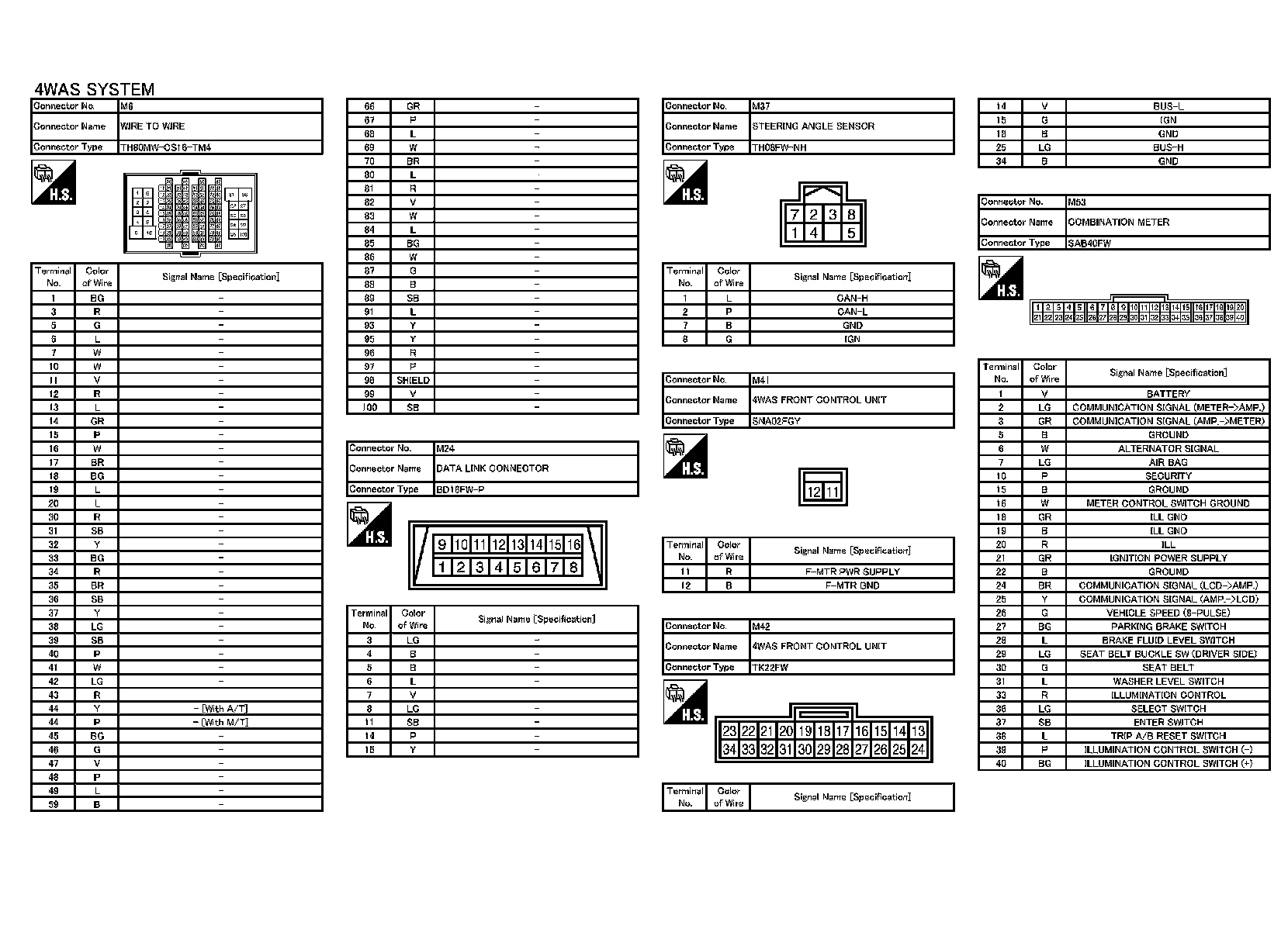

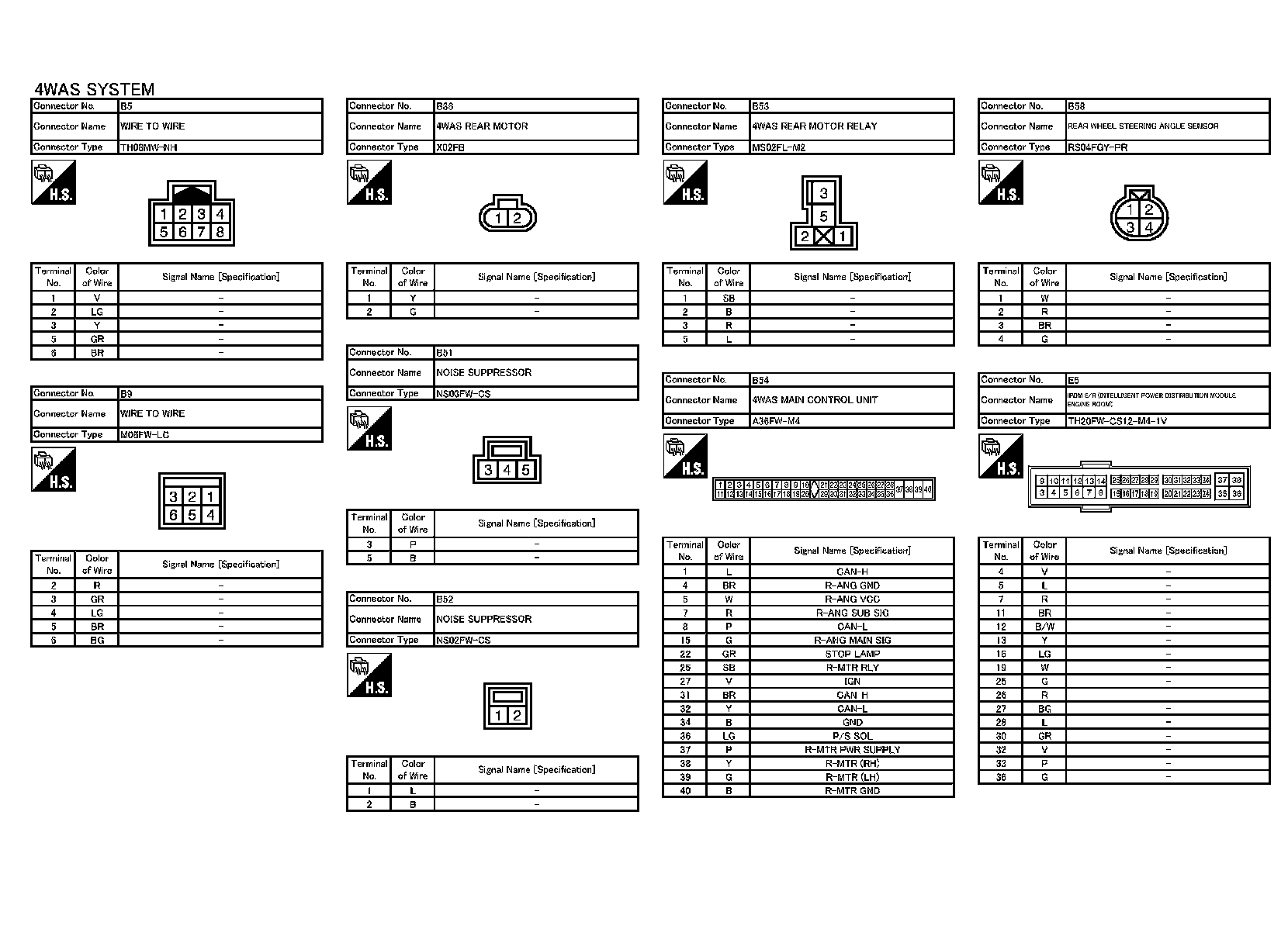

Wiring Diagram - 4WAS SYSTEM -
