Diagnosis Procedure

ABS WARNING LAMP

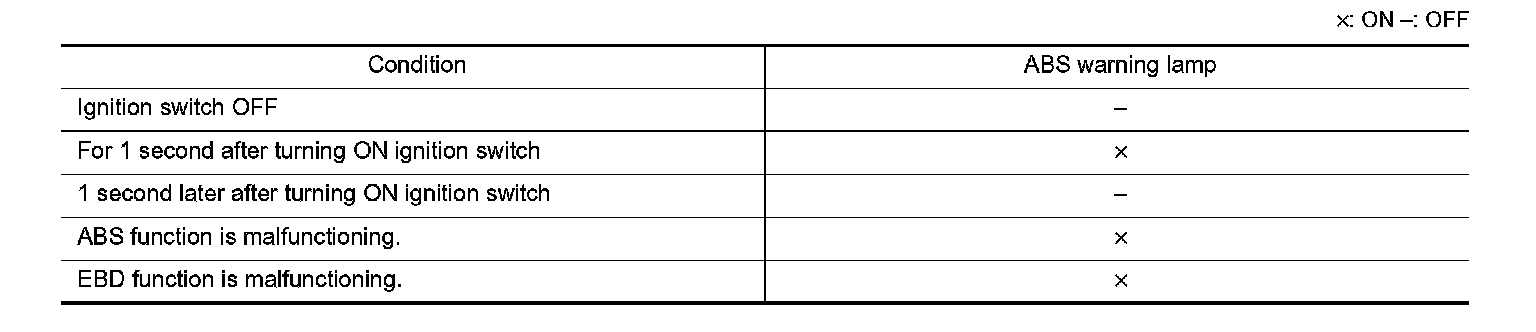

Description









ABS WARNING LAMP


Diagnosis Procedure

1.CHECK SELF-DIAGNOSIS
Perform self-diagnosis for "ABS" with CONSULT-III.
Is the inspection result normal?
YES - GO TO 2.
NO - Check items displayed by self-diagnosis.
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. CONSULT-III Function.
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit).
NO - Repair or replace combination meter.
