Diagnosis Procedure

PARKING BRAKE SWITCH


Description

The parking brake switch converts the status of the parking brake lever (M/T models) or the parking brake pedal (A/T models) to an electric signal and transmits it to the ABS actuator and electric unit (control unit).




PARKING BRAKE SWITCH


Diagnosis Procedure

1.CHECK PARKING BRAKE SWITCH
Check parking brake switch. Component Inspection.
Is the inspection result normal?
YES - GO TO 2.
NO - Replace parking brake switch.
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. CONSULT-III Function.
Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace combination meter.
3.CHECK DATA MONITOR

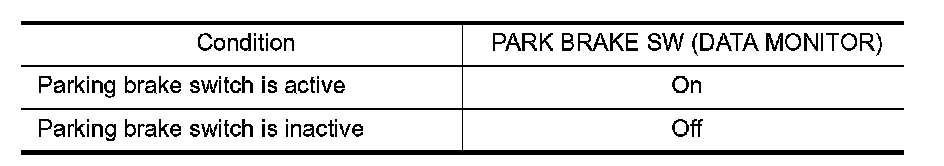

Select "ABS", "DATA MONITOR" and "PARK BRAKE SW" in order with CONSULT-III, and perform the parking brake switch inspection.





Is the inspection result normal?
YES - INSPECTION END
NO - Check unified meter and A/C amp. .
