Removal and Installation

FLOOR TRIM


Removal and Installation


REMOVAL
1. Remove front seat assembly (LH/RH). Removal and Installation.
2. Remove rear seat cushion. Removal and Installation.
3. Remove accelerator pedal pad. Removal and Installation.

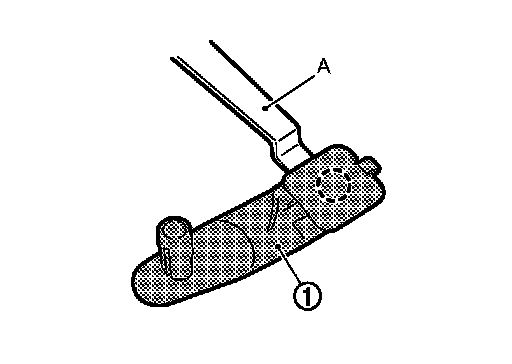

4. Disengage clip of floor hook (1) with remover tool (A).

Circle : Clip

5. Remove foot grille. Foot Grille.
6. Remove front seat belt floor anchor bolt (LH/RH). Exploded View.
7. Remove center console assembly. A/T Models (A/T models). M/T Models (M/T models).
8. Remove instrument lower cover, instrument driver panel, instrument assist lower panel and instrument side panel (LH/RH). (A/T models). M/T Models (M/T models).
9. Remove YAW RATE/G-SENSOR (1). Removal and Installation.





10. Remove diagnosis sensor unit (2). Removal and Installation.
11. Remove console rear bracket (3). A/T Models (A/T models). M/T Models (M/T models).
12. Remove floor harness mounting clamps (A).
13. Remove dash side finisher (LH/RH), front kicking plate inner (LH/RH) and body side welt (LH/RH). Removal and Installation.
14. Remove floor trim fixing clips and fixing nuts.

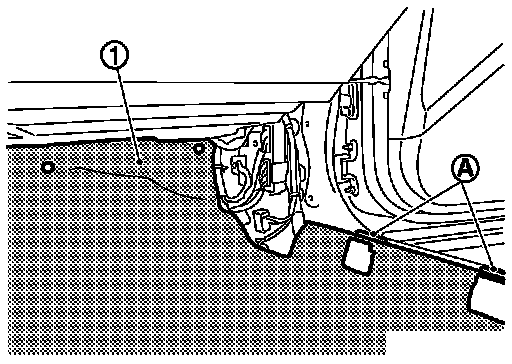

15. Remove floor trim from floor trim fixing clips (A) and remove floor carpet (1).

INSTALLATION
Install in the reverse order of removal.
