FRONT WIPER AND WASHER SYSTEM SYMPTOMS
WITHOUT
RAIN SENSOR
: Symptom Table
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform the diagnosis by DTC if DTC is detected.

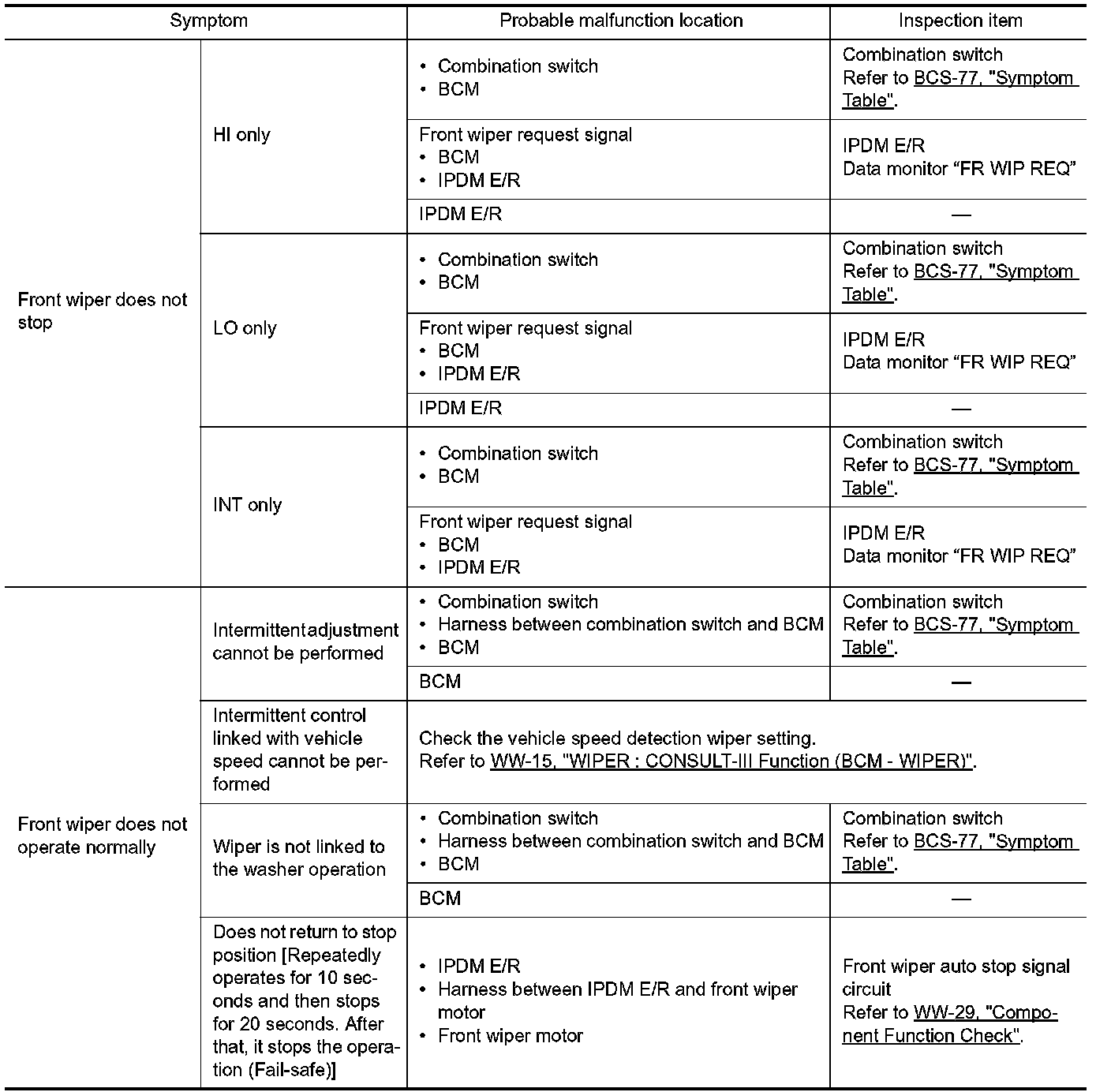

Symptom Table - Without Rain Sensor (Part 1):

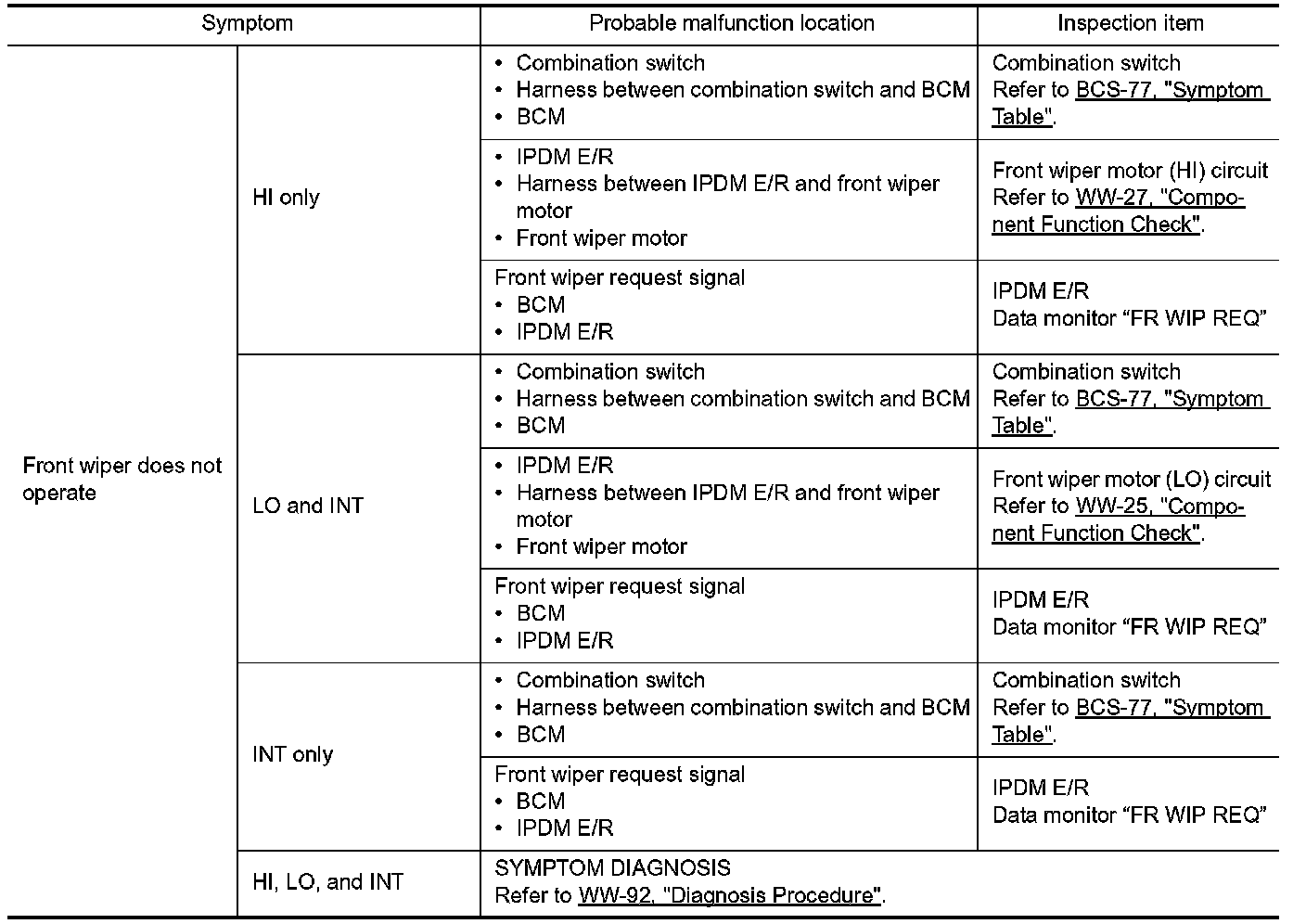

Symptom Table - Without Rain Sensor (Part 2):
