QUARTER WINDOW GLASS


Removal and Installation


REMOVAL
1. Fully open the roof.
2. Fully open trunk lid assembly.
3. Fully open quarter window glass.
4. Remove rear seat cushion and rear seatback. Removal and Installation.
5. Remove body side weather-strip. Removal and Installation.
6. Remove rear side finisher. Removal and Installation.
7. Remove rear side finisher bracket. Removal and Installation.
8. Remove partially trunk lid weather-strip. Removal and Installation.





9. Operate rear quarter window glass motor switch to raise or lower the quarter window glass until the glass mounting bolts can be seen.

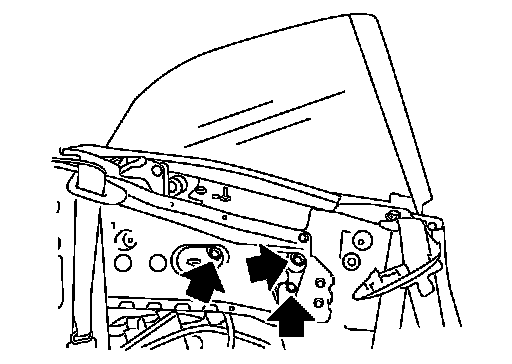

Black arrow : Bolt

10. Remove quarter window glass mounting bolts.

NOTE:
Hold securely quarter window glass when removing the quarter window glass mounting bolts.

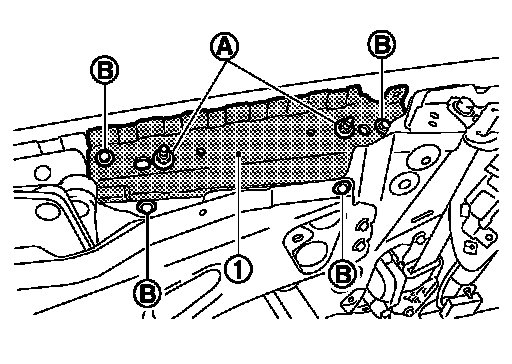

11. Remove the rear reinforcement bracket (1).
- Remove quarter window glass regulator mounting nuts (A).
- Remove rear reinforcement bracket mounting bolts (B).
12. Remove quarter window glass from the regulator assembly.





13. Remove the quarter window glass regulator assembly.
1. Disconnect harness connector (A).
2. Remove sealing screen (1) with a cutter knife.

NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.
3. Remove regulator assembly fixing nut cover (2).

CAUTION:
Never drop water the water coming from drain hose on parts when removing drain hose from sealing screen.

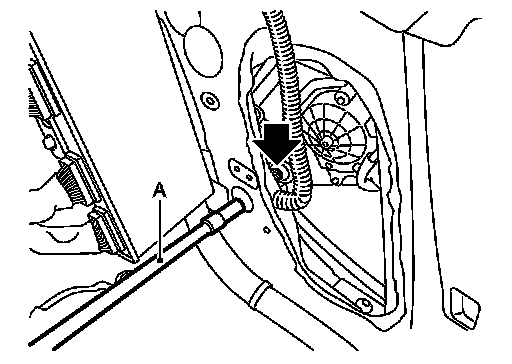

4. Remove quarter window glass regulator assembly fixing nut as shown in the figure with socket wrench (A).

Black arrow : Bolt

5. Remove the quarter window glass regulator assembly from the body panel.

INSTALLATION
Install in the reverse order of removal.

INSPECTION AFTER REMOVAL





Check that the quarter window glass regulator assembly for the following. If a failure is detected, replace or grease it.
- Wire wear
- Quarter window glass regulator assembly deformation
- Grease body condition on each sliding part

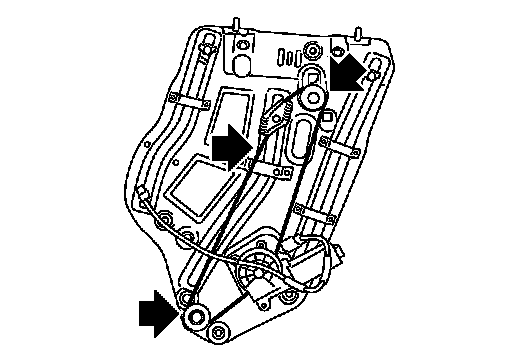

The arrows in the figure show body grease application points of the body grease.
