Component Inspection

DOOR KEY CYLINDER SWITCH


Component Inspection


COMPONENT INSPECTION
1.CHECK DOOR KEY CYLINDER SWITCH
1. Turn ignition switch OFF.
2. Disconnector driver side door lock assembly (key cylinder switch) connector.

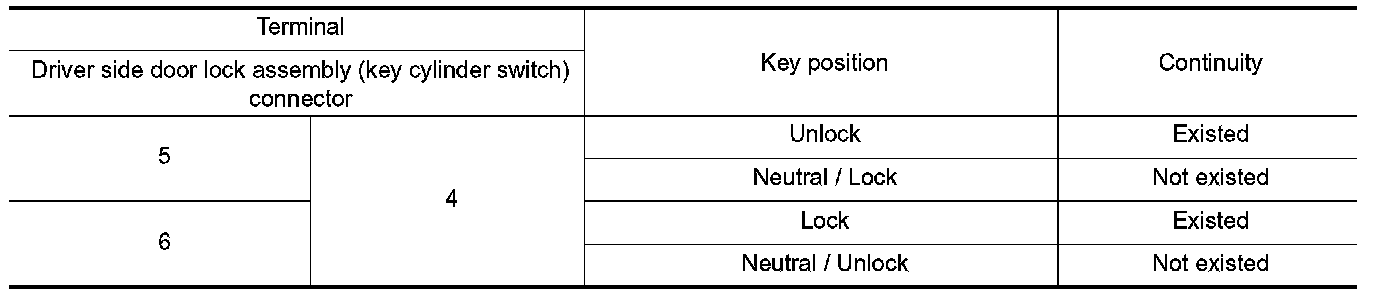

3. Check driver side door lock assembly (key cylinder switch).






Is the inspection result normal?
YES - Key cylinder switch is OK.
NO - Replace driver side door lock assembly (key cylinder switch). Removal and Installation.
