Component Inspection (Stop Lamp Switch)





SHIFT LOCK SYSTEM


WITHOUT ICC : Component Inspection (Stop Lamp Switch)

1.CHECK STOP LAMP SWITCH

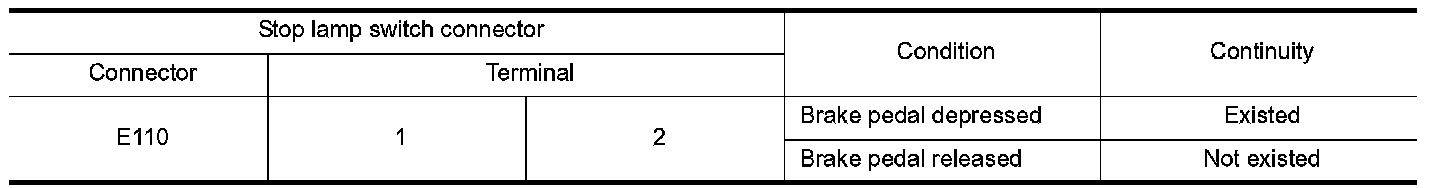

Check continuity between stop lamp switch connector terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace stop lamp switch. Exploded View.
