Assembly

MAIN DRIVE GEAR


Assembly

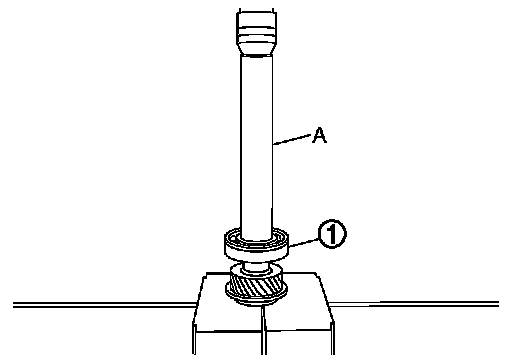

1. Install main drive gear bearing (1) to main drive gear with a pressing machine using the drift (A) [SST: KV32102700 ( - )].

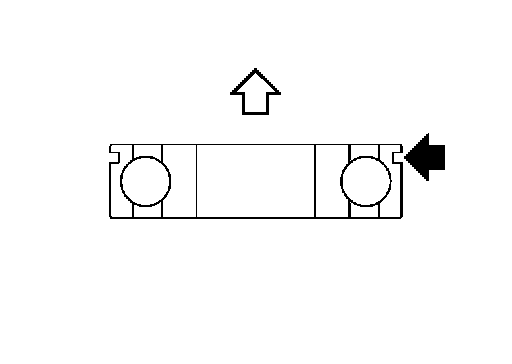

CAUTION:





Be careful with the orientation of main drive gear bearing.

White arrow: Snap ring side

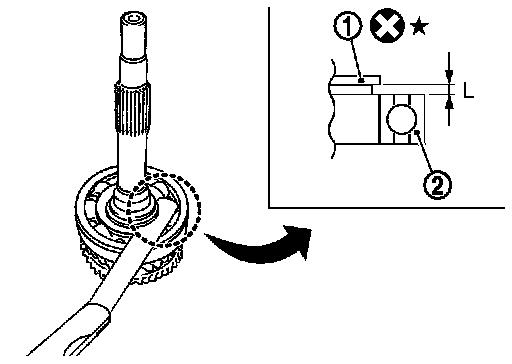

2. Select and install snap ring (1) to main drive gear so that the end play "L" is adjusted to the standard value. For selecting snap ring, refer to the latest parts information.

2 : Main drive gear bearing

End play "L" : Refer to TM-102, "End Play". End Play

3. Apply gear oil to main pilot bearing and 5th baulk ring.
4. Install main pilot bearing, pilot bearing spacer, and 5th baulk ring to main drive gear.

NOTE:

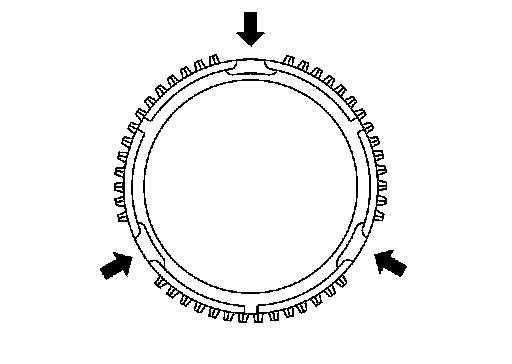

5th and 6th baulk rings have three spaces that four gear teeth are missing as shown in the figure.
