Removal and Installation

FRONT OIL SEAL


Removal and Installation


REMOVAL
1. Drain gear oil. Draining.
2. Remove transmission assembly. Transmission Assembly.

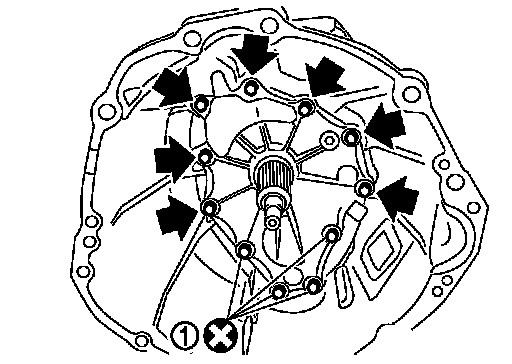

3. Remove mounting bolts ( ) and sealing bolts (1).
4. Remove front cover and front cover gasket from transmission case.

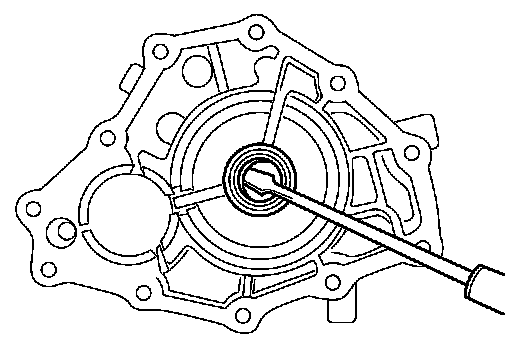

5. Remove front oil seal from front cover using a flat-bladed screwdriver.

CAUTION:
Never damage front cover.

INSTALLATION

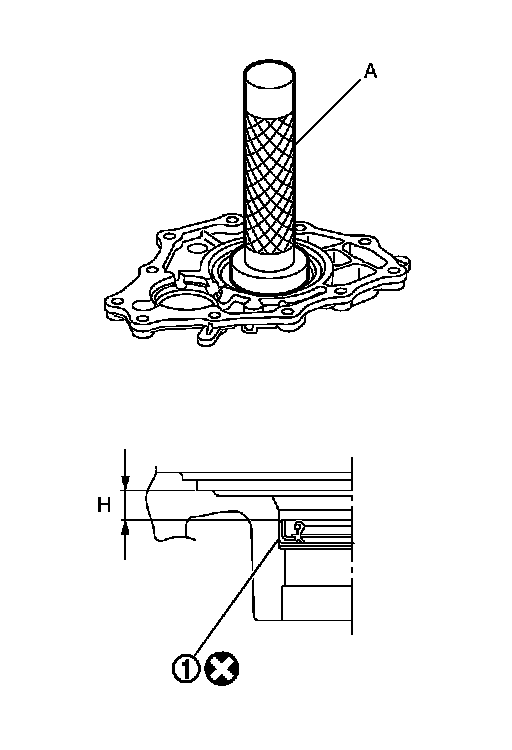

1. Install front oil seal (1) to front cover using the drift (A) [SST:
KV38102100 (J-25803-01)].

Dimension "H" : 8.55 - 9.55 mm (0.3366 - 0.3760 in)

CAUTION:
Never incline front oil seal.
2. Install front cover gasket and front cover to transmission case.

CAUTION:
- Never reuse front cover gasket.
- Never damage front oil seal.
- Remove any moisture, oil, or foreign material adhering to both mating surfaces.

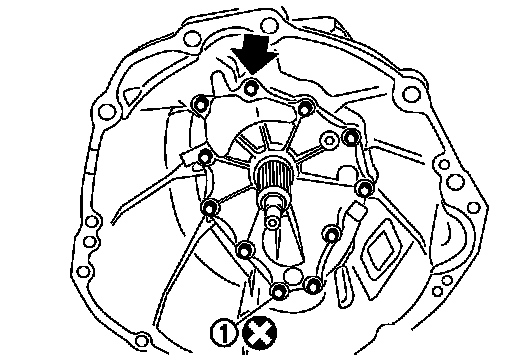

3. Temporarily tighten mounting bolt ( ) and sealing bolt (1).





4. Temporarily tighten mounting bolts ( ) and sealing bolts (1).

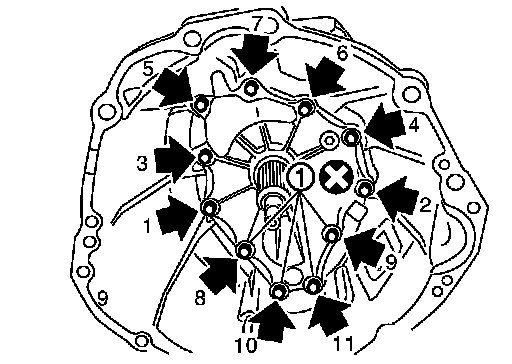

5. Tighten mounting bolts ( ) and sealing bolts (1) to the specified torque in the numerical order as shown in the figure.
6. Install transmission assembly. Transmission Assembly.
7. Refill gear oil. Refilling.
