Axle Shaft Assembly: Testing and Inspection

REAR DRIVE SHAFT


Inspection

- Check drive shaft mounting point and joint for looseness and other damage.
- Check boot for cracks and other damage.

CAUTION:
Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.





REAR DRIVE SHAFT


Inspection

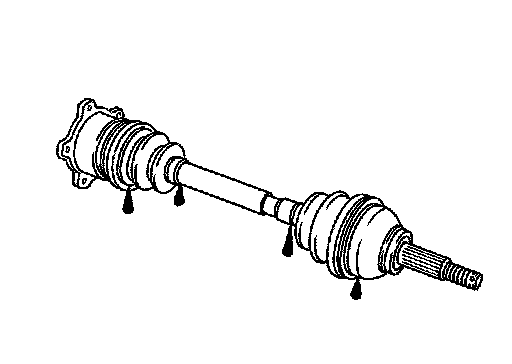

INSPECTION AFTER REMOVAL
- Move joint up/down, left/right, and in the axial direction. Check for any rough movement or significant looseness.





- Check boot for cracks or other damage, and also for grease leakage.
- If a malfunction is found, disassemble drive shaft, and then replace with new one.
