Removal and Installation Shock Absorber

REAR SHOCK ABSORBER


Removal and Installation


REMOVAL
1. Remove tires with power tool. Exploded View.
2. Set suitable jack under axle assembly to relieve the coil spring tension.
3. Gradually lower the jack and separate shock absorber (lower side) from axle housing.

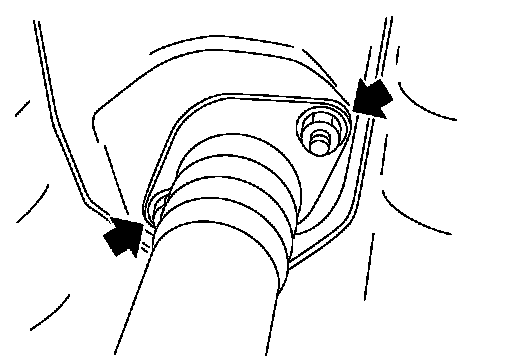

4. Remove shock absorber assembly mounting nuts (upper side)
( ), and then remove shock absorber assembly.

INSTALLATION
Note the following, and install in the reverse order of removal.
- Perform final tightening of bolts and nuts at the shock absorber lower side (rubber bushing), under unladen conditions with tires on level ground.
