Component Inspection

POWER STEERING SOLENOID VALVE


Component Inspection

1.CHECK POWER STEERING SOLENOID VALVE
1. Turn the ignition switch OFF.
2. Disconnect power steering solenoid valve harness connector.

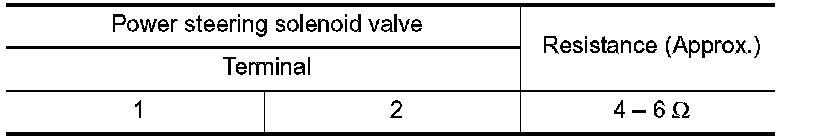

3. Check resistance between power steering solenoid valve connector terminals.





4. Check power steering solenoid valve by listening for its operation sound while applying battery voltage to power steering solenoid valve connector F45 terminals 1 (positive) and 2 (negative).
Is the inspection result normal?
YES - INSPECTION END
NO - Replace gear-sub assembly. Exploded View.
