Diagnosis Procedure

KEY SLOT


Description

- Detects whether Intelligent Key is inserted.
- Immobilizer antenna amp checks Intelligent Key transponder.




KEY SLOT


Diagnosis Procedure

1.CHECK FUSE
1. Turn ignition switch OFF.
2. Check 10 A fuse, [No.9, located in fuse block (J/B)].
Is the inspection result normal?
YES - GO TO 2.
NO - Replace the blown fuse after repairing the affected circuit if a fuse is blown.
2.CHECK KEY SLOT POWER SUPPLY CIRCUIT
1. Disconnect key slot connector.

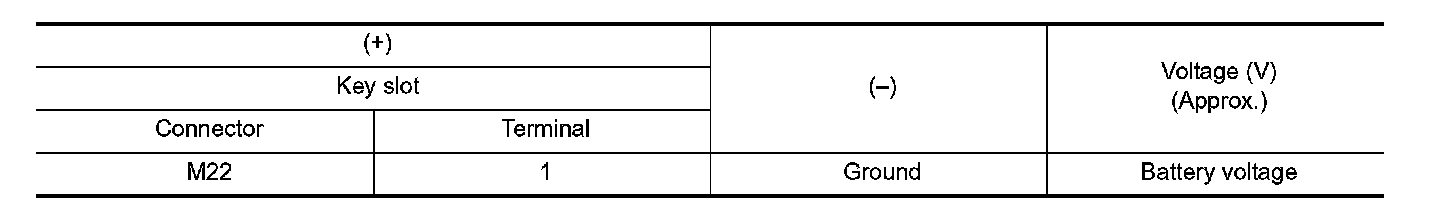

2. Check voltage between key slot harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK KEY SLOT CIRCUIT
1. Disconnect BCM connector.

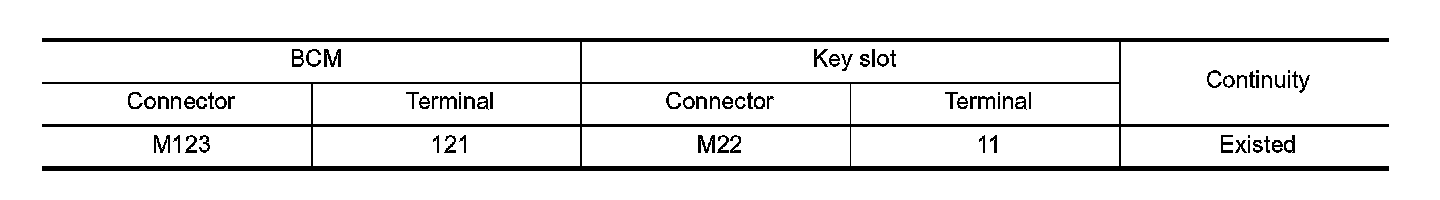

2. Check continuity between BCM harness connector and key slot harness connector.

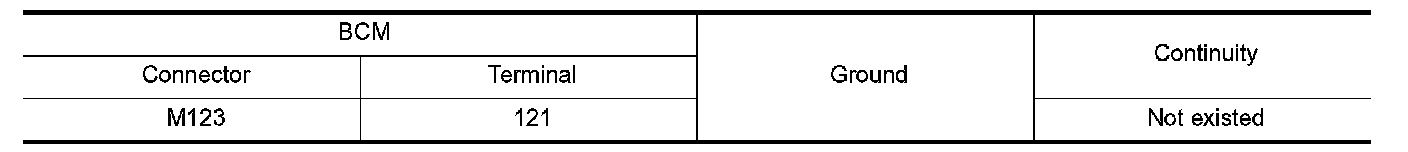

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK KEY SLOT
Component Inspection.
Is the inspection result normal?
YES - Replace BCM. Removal and Installation.
NO - Replace key slot. Removal and Installation.
