Component Inspection





KEY SLOT


Component Inspection

1.CHECK KEY SLOT
1. Turn ignition switch OFF.
2. Disconnect key slot connector.

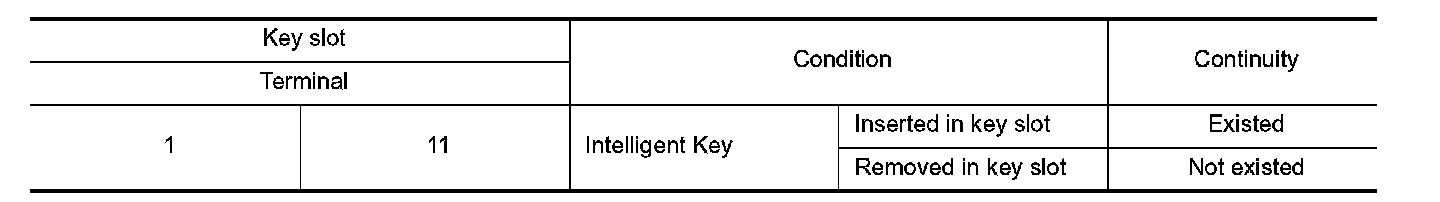

3. Check continuity between key slot terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace key slot. Removal and Installation.
