Removal and Installation

KEY SLOT


Removal and Installation


REMOVAL
1. Remove the instrument driver lower panel (2). A/T Models(A/T models), M/T Models (M/T models)..
2. Disconnect key slot connector.

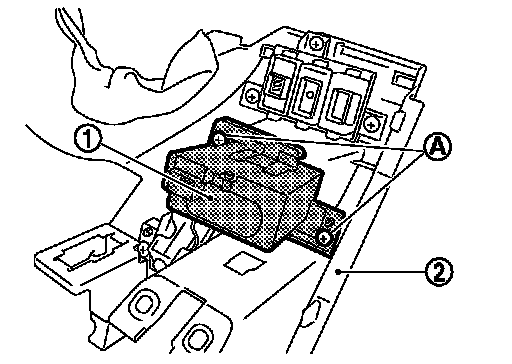

3. Remove the key slot mounting screw (A), and then remove key slot (1) from instrument driver lower panel (2).

INSTALLATION
Install in the reverse order of removal.
