Power Generation Voltage Variable Control System
Power Generation Voltage Variable Control System
POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

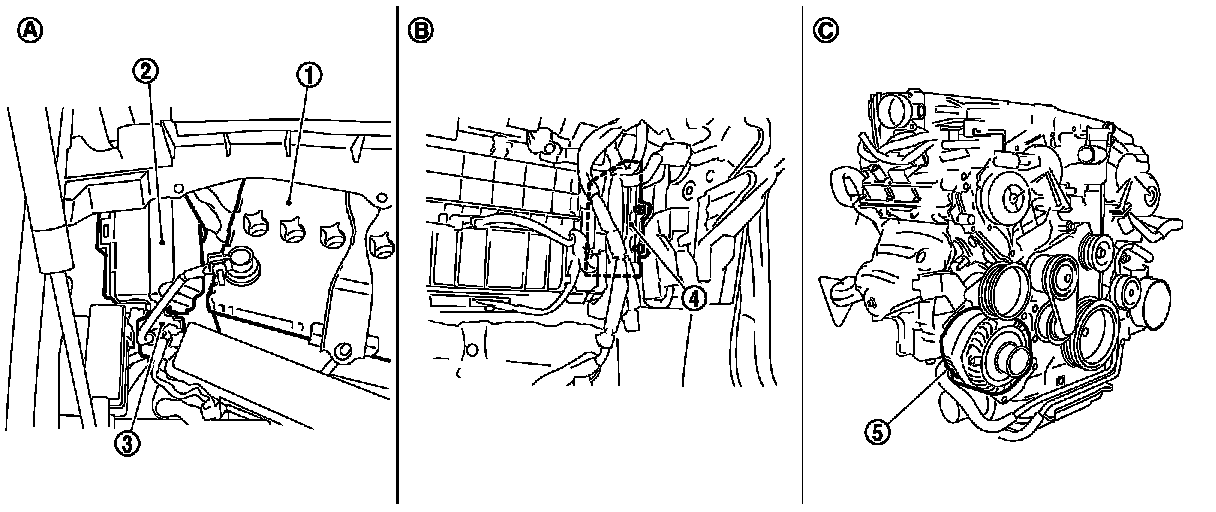

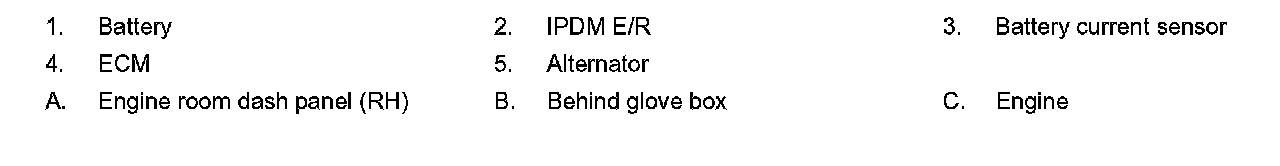

Component Parts Location
