Timing Cover

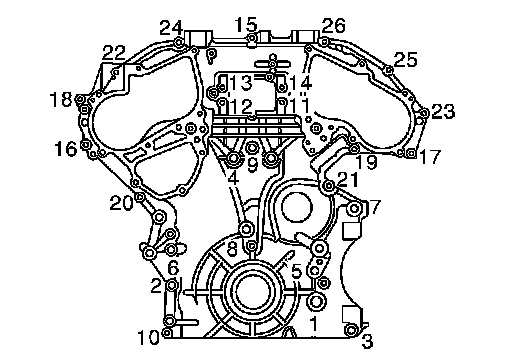

Timing cover
M10 bolts : 1, 2, 3, 4, 5, 6, 7
Torque 55.0 Nm (5.6 kg-m, 41 ft-lb)
M6 bolts : Except the above
Torque 12.7 Nm (1.3 kg-m, 9 ft-lb)
After all bolts are tightened, retighten them to the specified torque
Timing cover
M10 bolts : 1, 2, 3, 4, 5, 6, 7
Torque 55.0 Nm (5.6 kg-m, 41 ft-lb)
M6 bolts : Except the above
Torque 12.7 Nm (1.3 kg-m, 9 ft-lb)
After all bolts are tightened, retighten them to the specified torque
