Service Data





SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Head

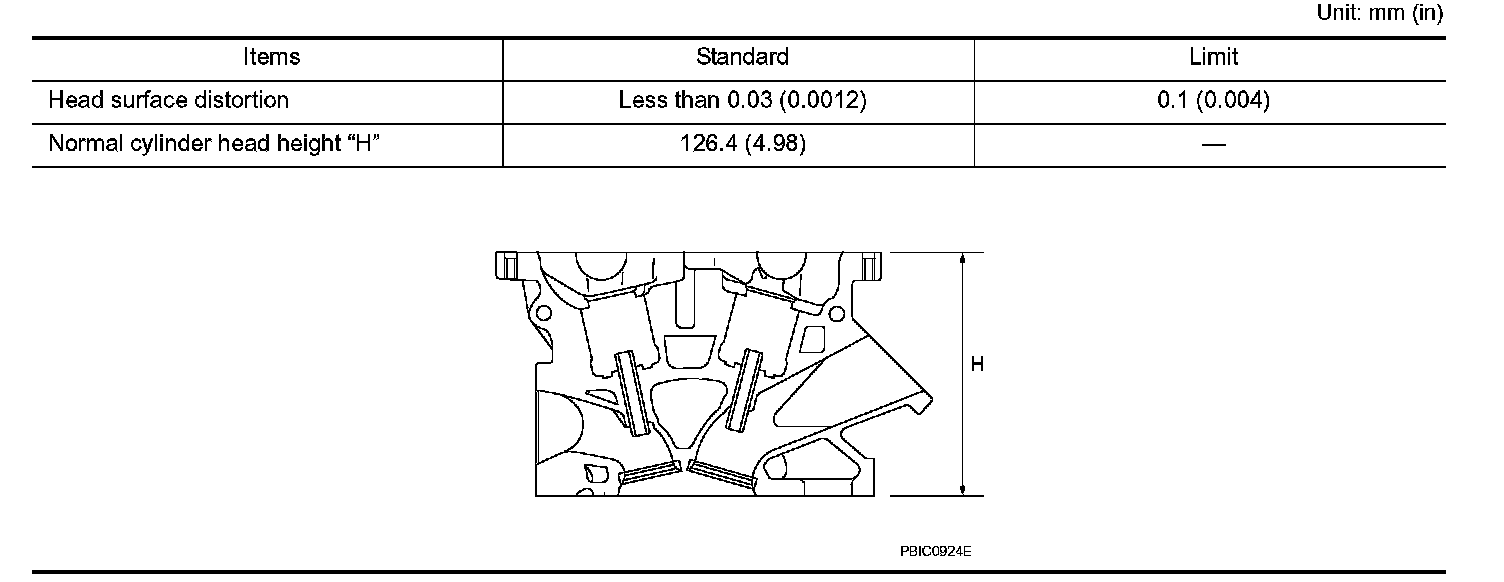

CYLINDER HEAD

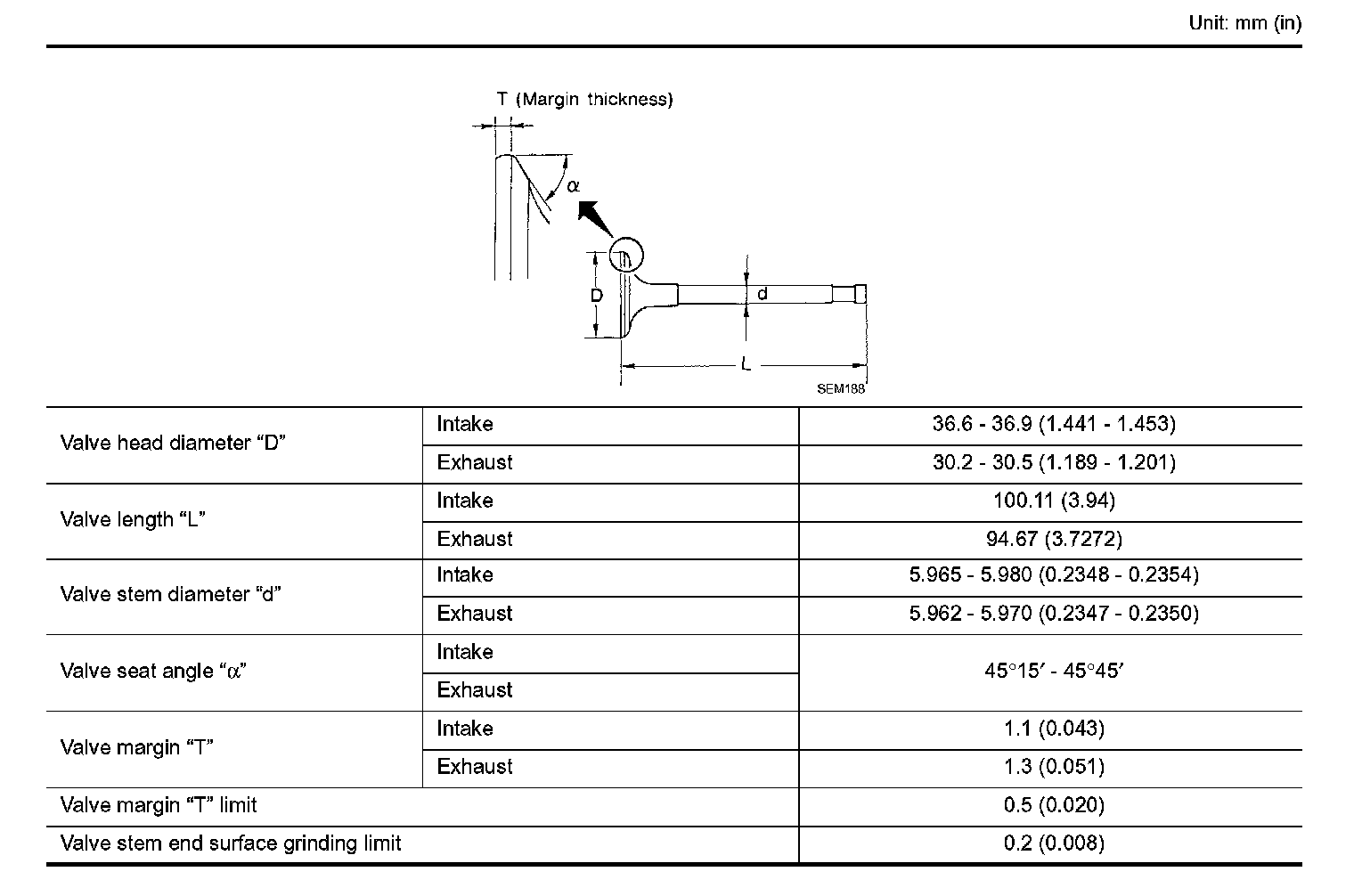

VALVE DIMENSIONS






VALVE GUIDE

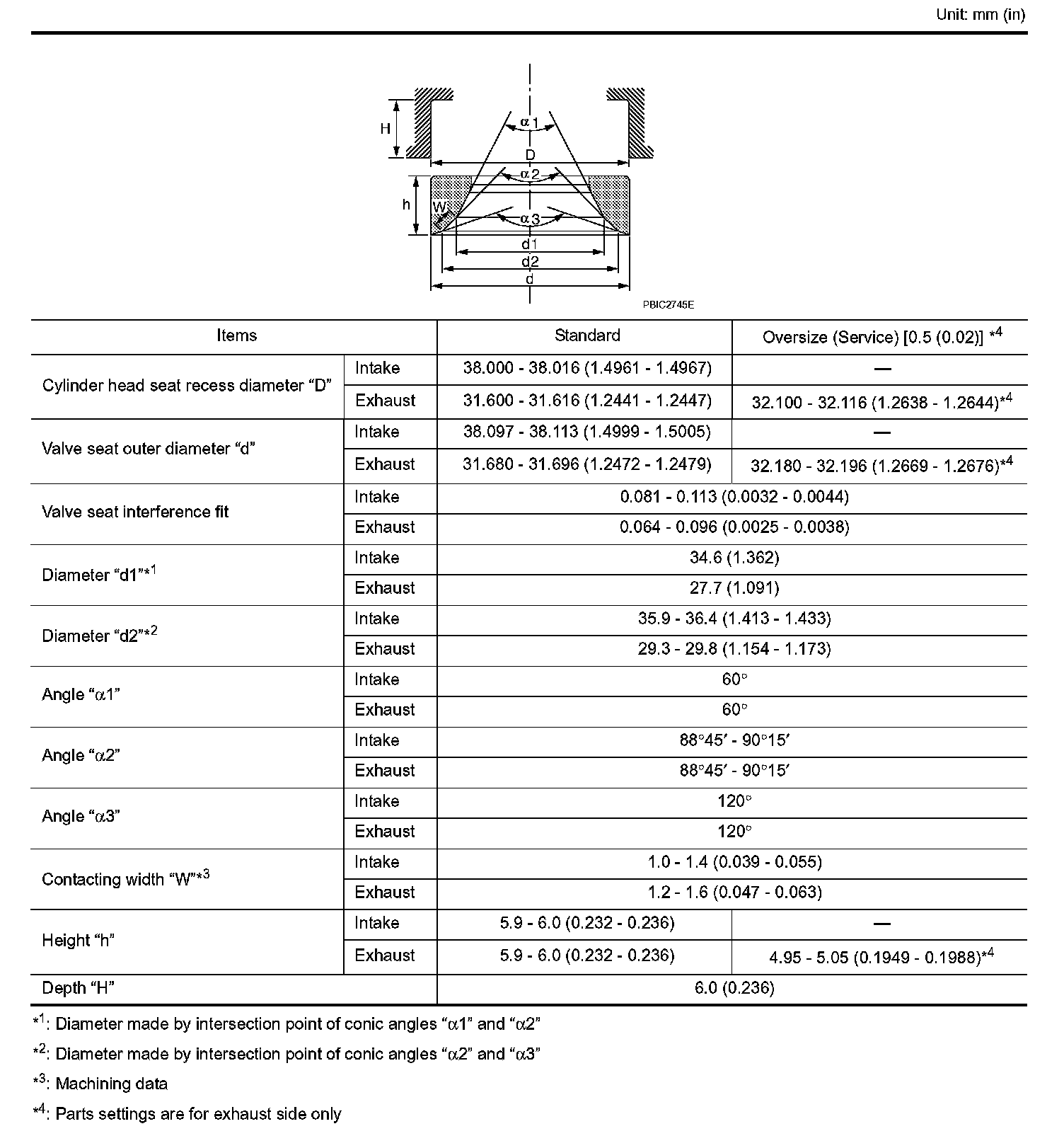

VALVE SEAT

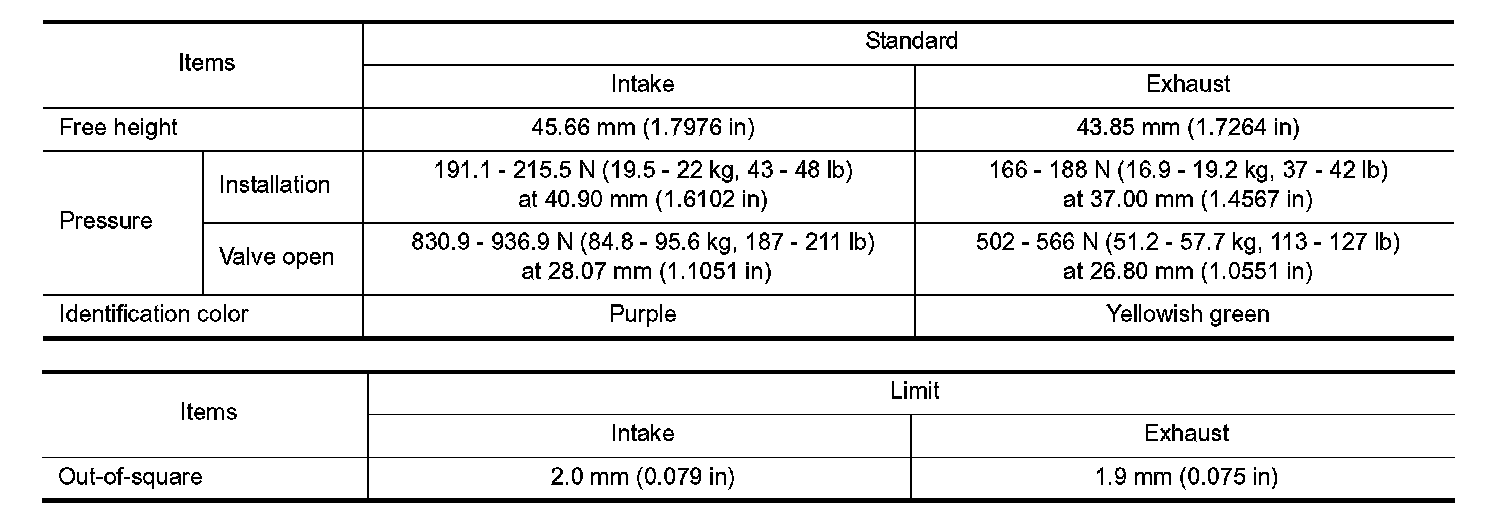

VALVE SPRING
