Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive/Propeller Shaft >> Rear Propeller Shaft 3S80A >> General Specifications

General Specifications





SERVICE DATA AND SPECIFICATIONS (SDS)


General Specifications

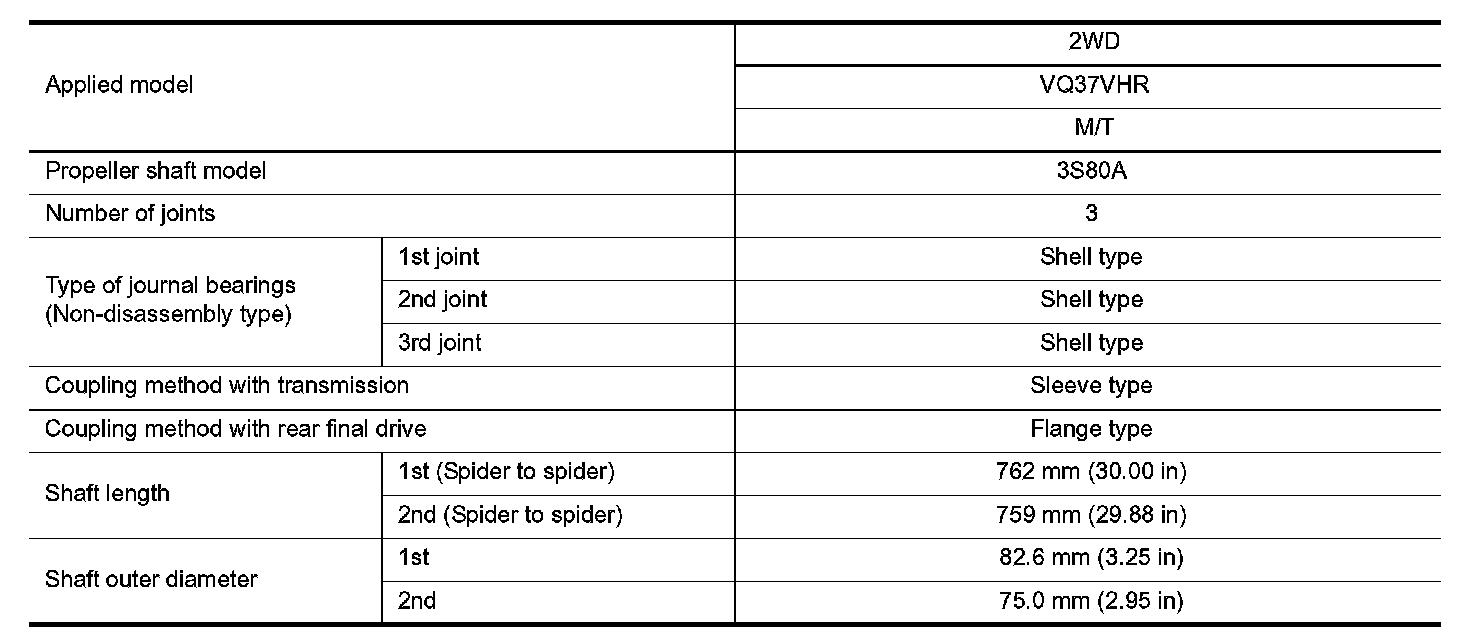

2nd joint connecting type : Flange connection

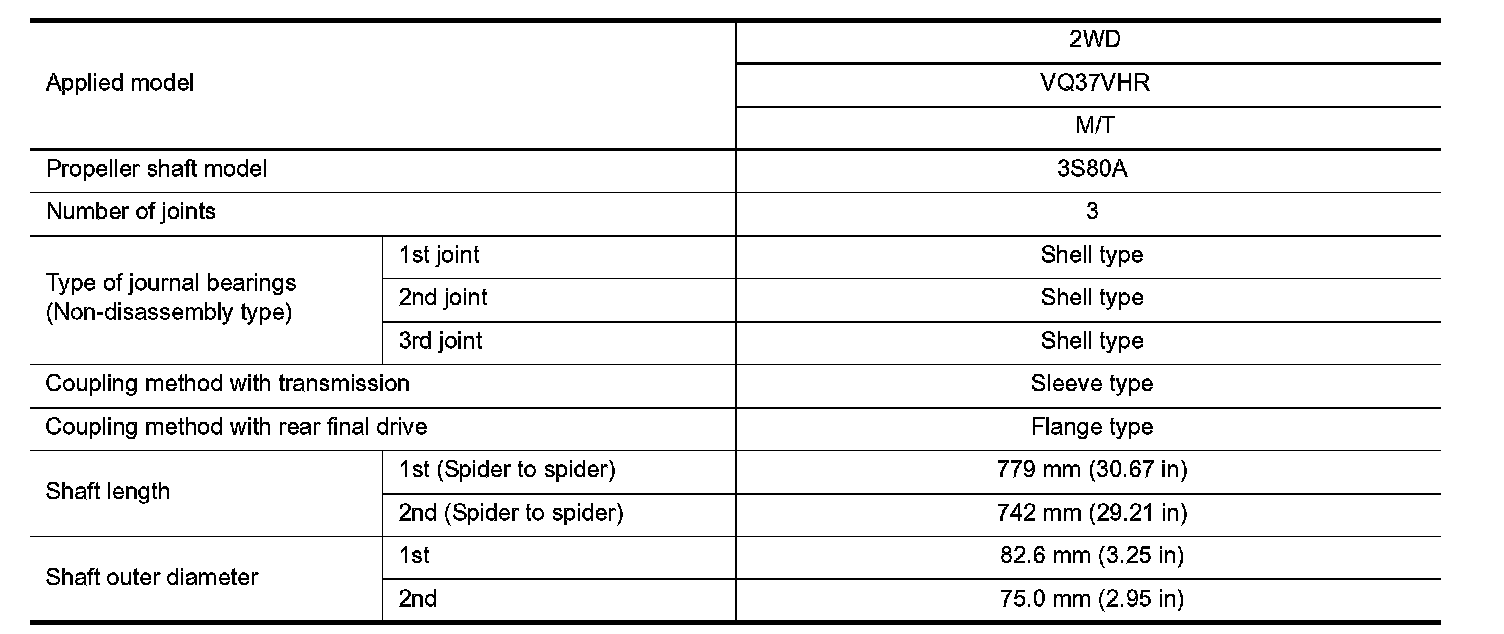

2nd joint connecting type : Stem connection
