Power Door Lock Switch: Service and Repair

DOOR SWITCH


Removal and Installation


REMOVAL

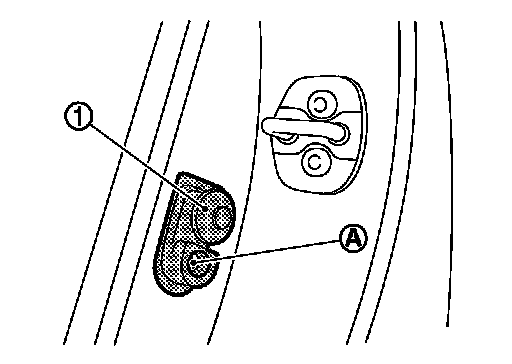

1. Remove the door switch mounting bolt (A), and then remove door switch (1).

INSTALLATION
Install in the reverse order of removal.
