Component Inspection (Shift Lock Relay)

SHIFT LOCK SYSTEM


WITH ICC : Component Inspection (Shift Lock Relay)

1.CHECK SHIFT LOCK RELAY

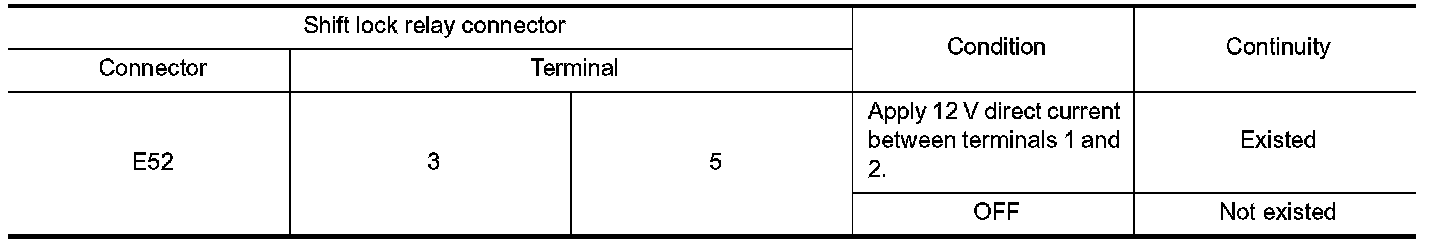

Check continuity between shift lock relay terminals.

CAUTION:
Connect the fuse between the terminals when applying the voltage.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace shift lock relay.
