Diagnosis Procedure

FUEL INJECTOR


Description

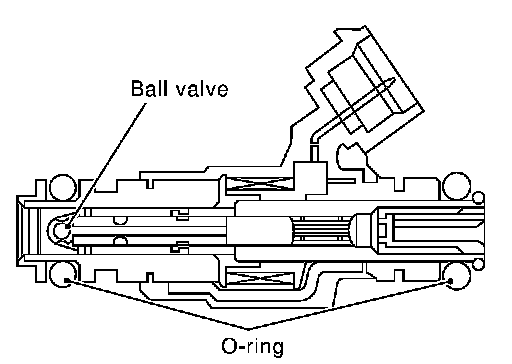

The fuel injector is a small, precise solenoid valve. When the ECM supplies a ground to the fuel injector circuit, the coil in the fuel injector is energized. The energized coil pulls the ball valve back and allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse duration. Pulse duration is the length of time the fuel injector remains open. The ECM controls the injection pulse duration based on engine fuel needs.




FUEL INJECTOR


Diagnosis Procedure

1.CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel injector harness connector.
3. Turn ignition switch ON.

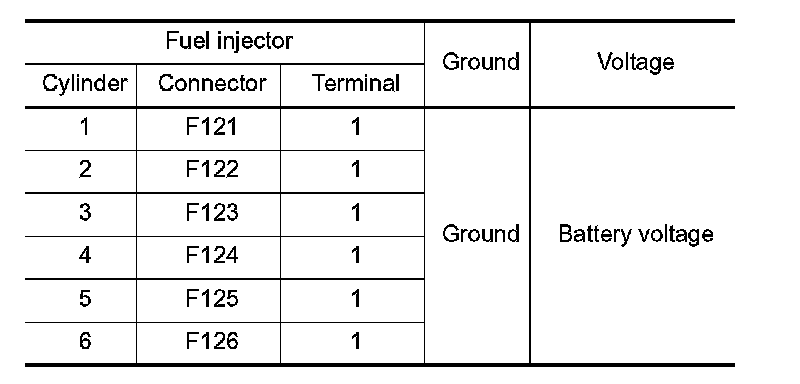

4. Check the voltage between fuel injector harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E3, F1
- Harness connectors F10, F120
- IPDM E/R harness connector E7
- 10 A fuse (No. 44)
- Harness for open or short between fuel injector and fuse
- Repair open circuit, short to ground or short to power in harness or connectors.
3.CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.

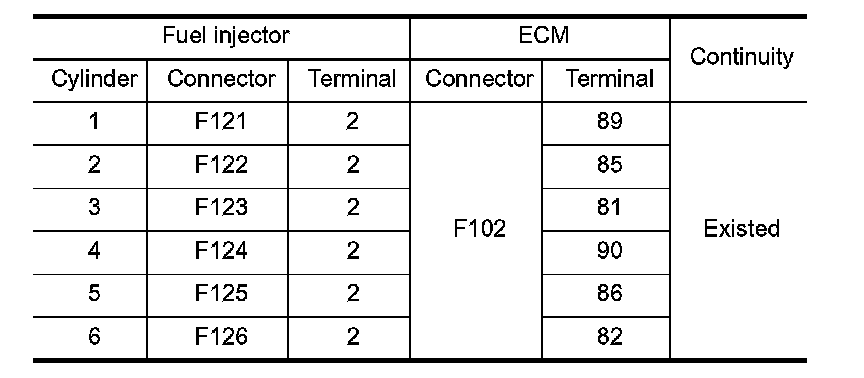

3. Check the continuity between fuel injector harness connector and ECM harness connector.





4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 4
4.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors F10, F120
- Harness for open or short between fuel injector and ECM
- Repair open circuit, short to ground or short to power in harness or connectors.
5.CHECK FUEL INJECTOR
Component Inspection.
Is the inspection result normal?
YES - GO TO 6.
NO - Replace malfunctioning fuel injector.
6.CHECK INTERMITTENT INCIDENT
Intermittent Incident.
Is the inspection result normal?
YES - Replace IPDM E/R.
NO - Repair open circuit, short to ground or short to power in harness or connectors.
