Removal and Installation

EVAP CANISTER


Removal and Installation


REMOVAL
1. Lift up the vehicle.
2. Remove EVAP canister fixing bolt.
3. Remove EVAP canister.

NOTE:
The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without removing the EVAP canister.

INSTALLATION
Install in the reverse order of removal.

NOTE:
Tighten EVAP canister fixing bolt to the specified torque.

DISASSEMBLY

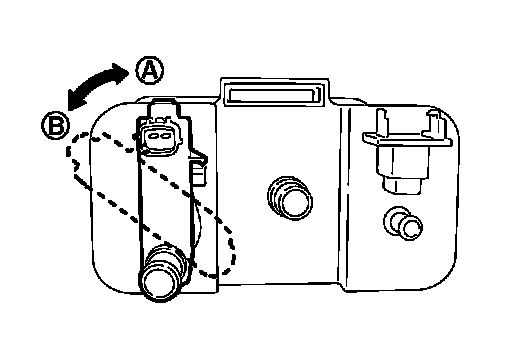

1. Turn EVAP canister vent control valve counterclockwise.

A : Lock
B : Unlock

2. Remove the EVAP canister vent control valve.

ASSEMBLY
Assemble in the reverse order of disassembly.

CAUTION:
Always replace O-ring with a new one.
