CONSULT-III Function

ON BOARD DIAGNOSTIC (OBD) SYSTEM


CONSULT-III Function

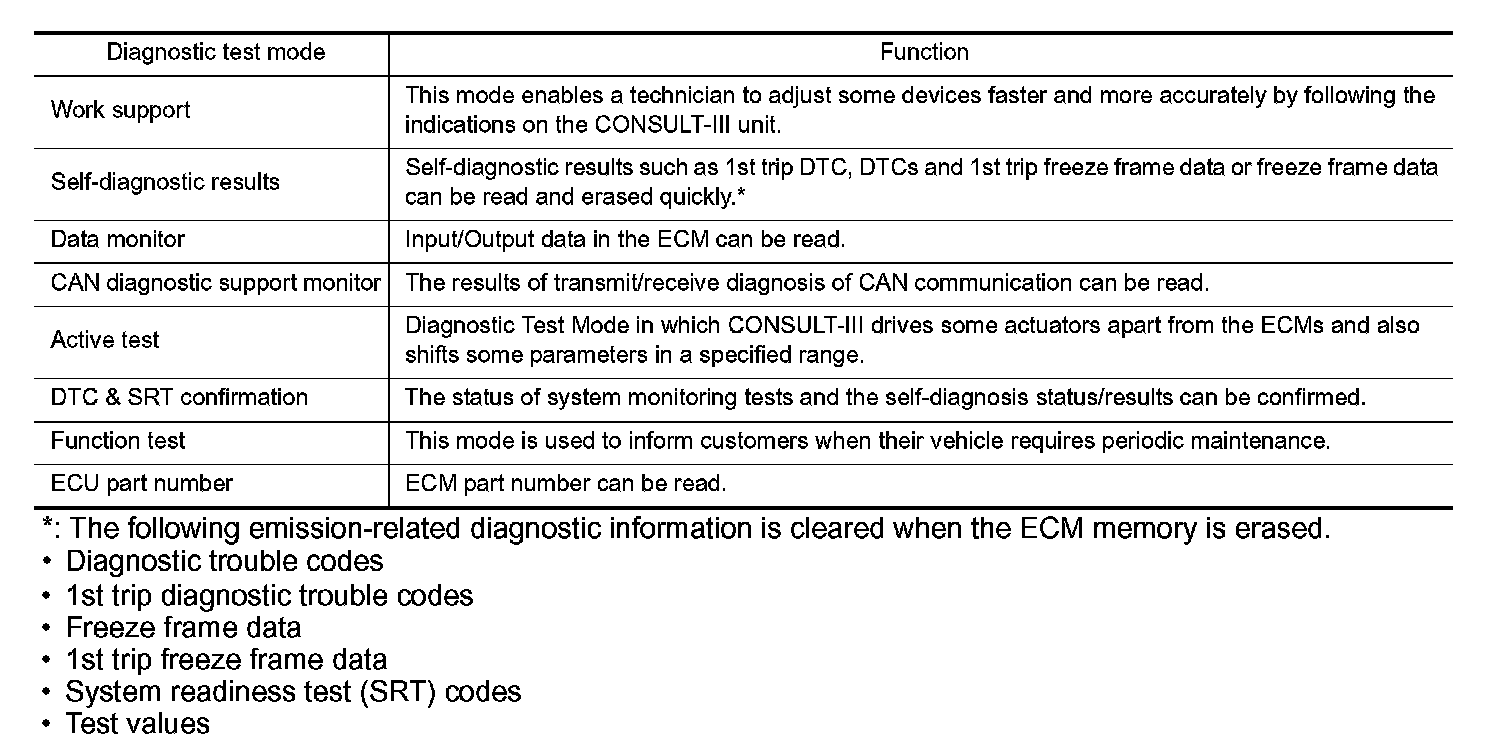

FUNCTION

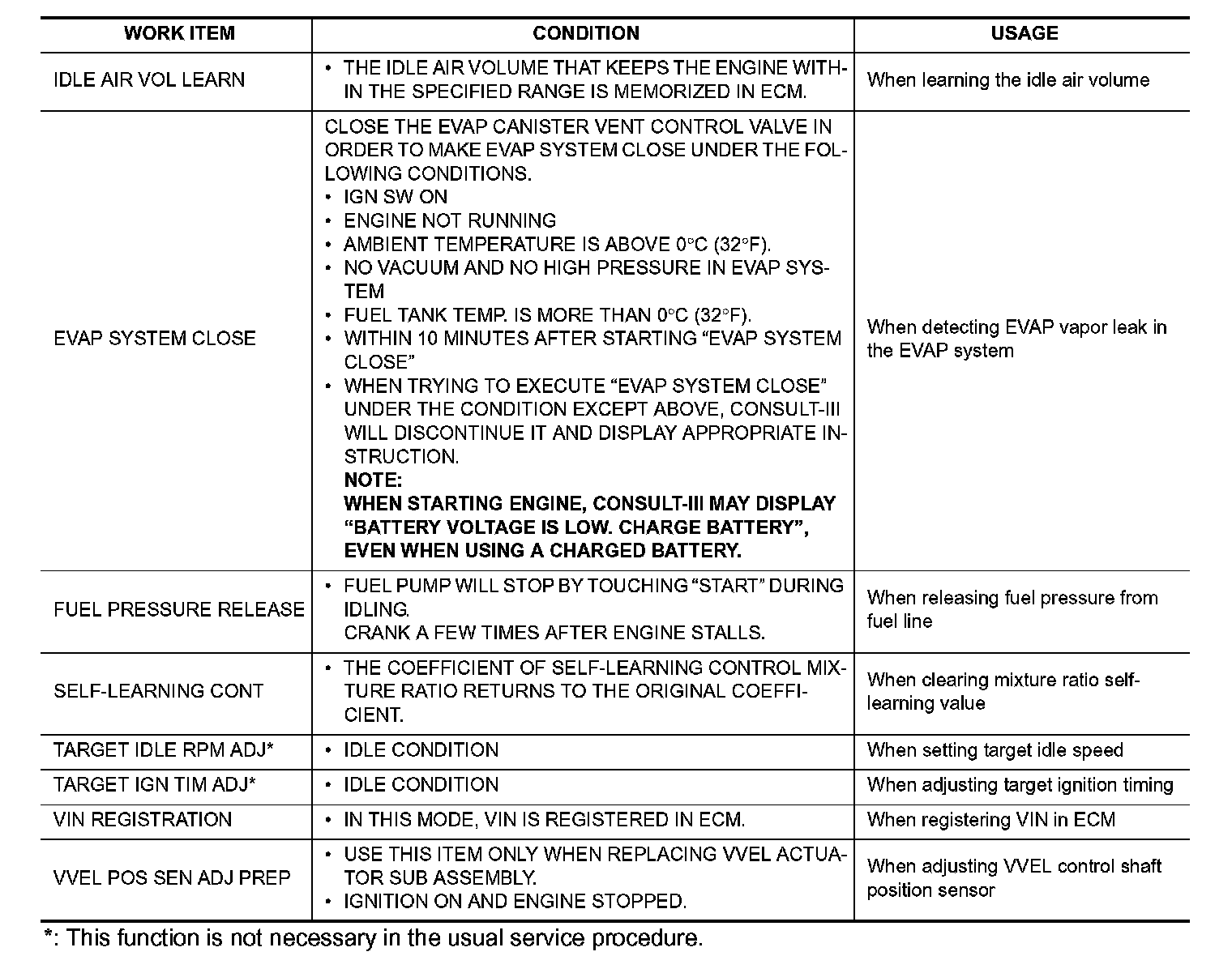

WORK SUPPORT MODE

Work Item





SELF-DIAG RESULTS MODE

Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, Testing and Inspection.

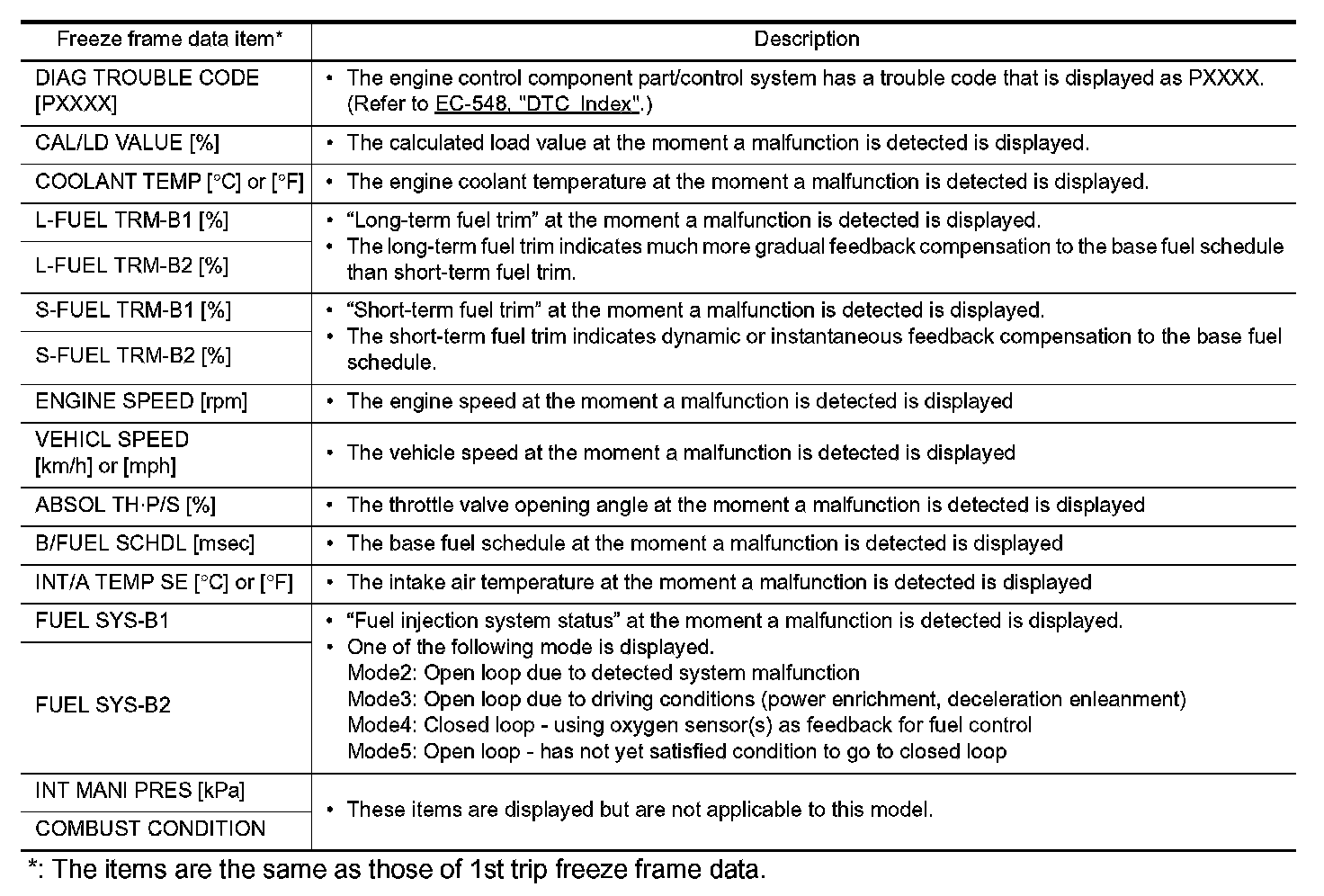

Freeze Frame Data and 1st Trip Freeze Frame Data






DATA MONITOR MODE

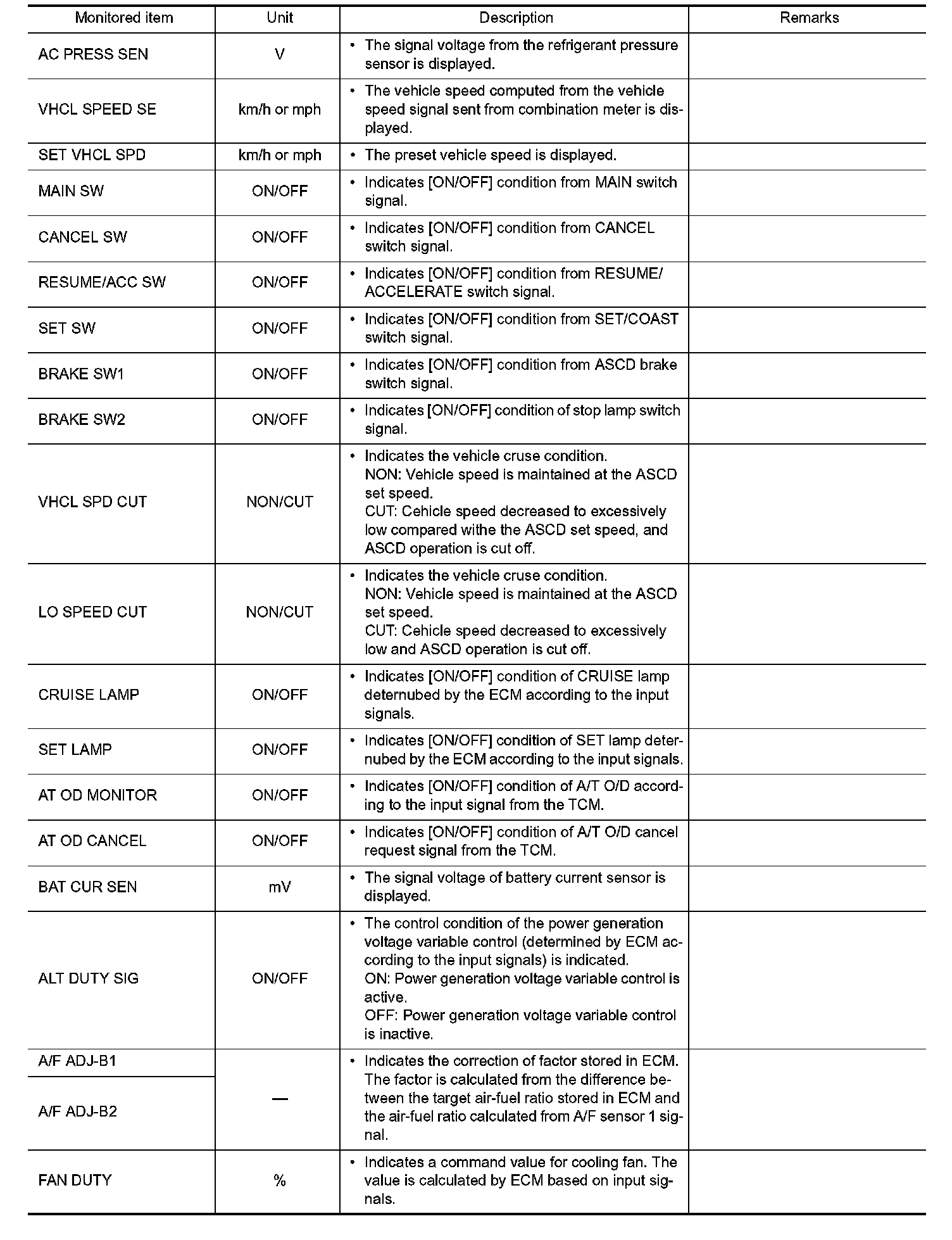

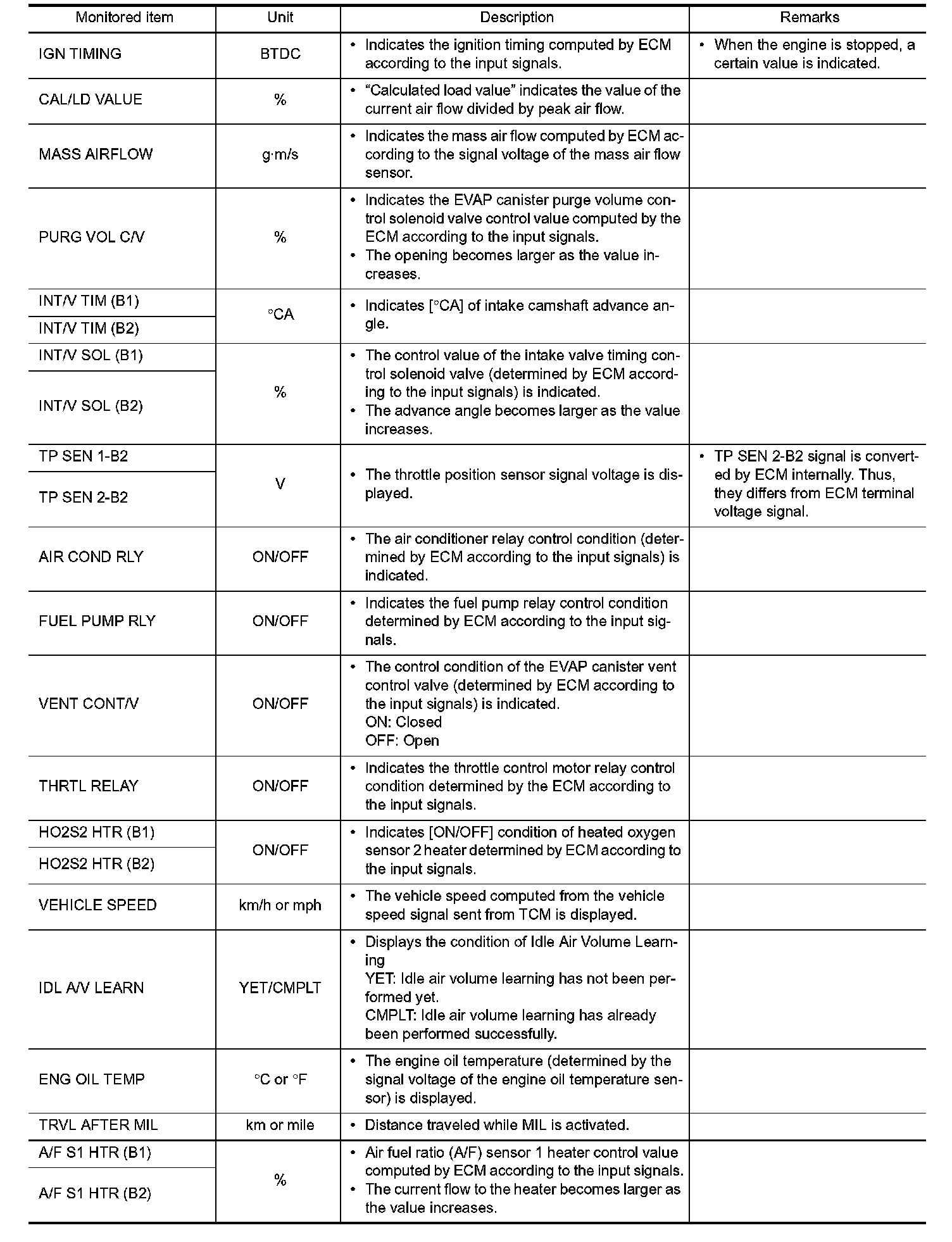

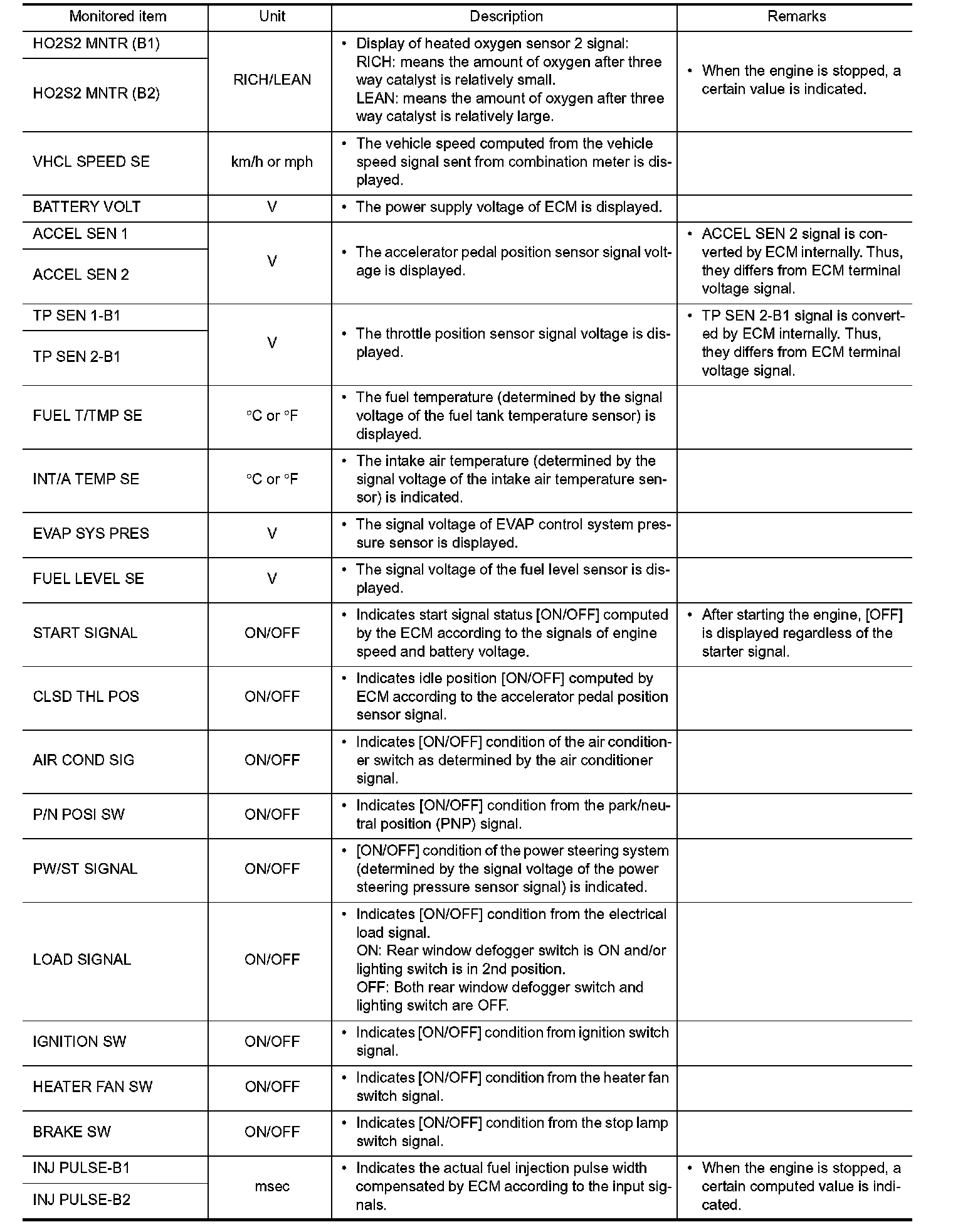

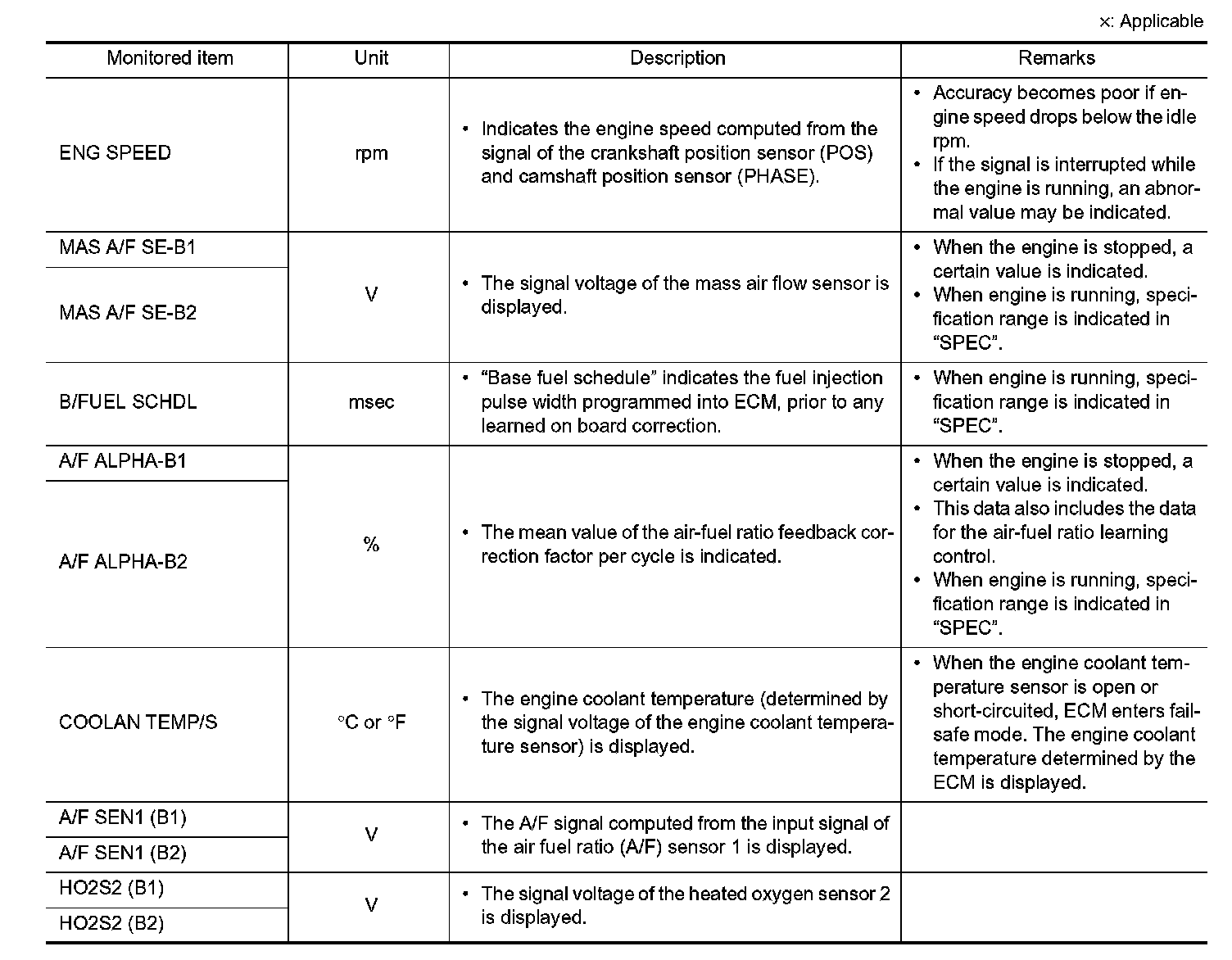

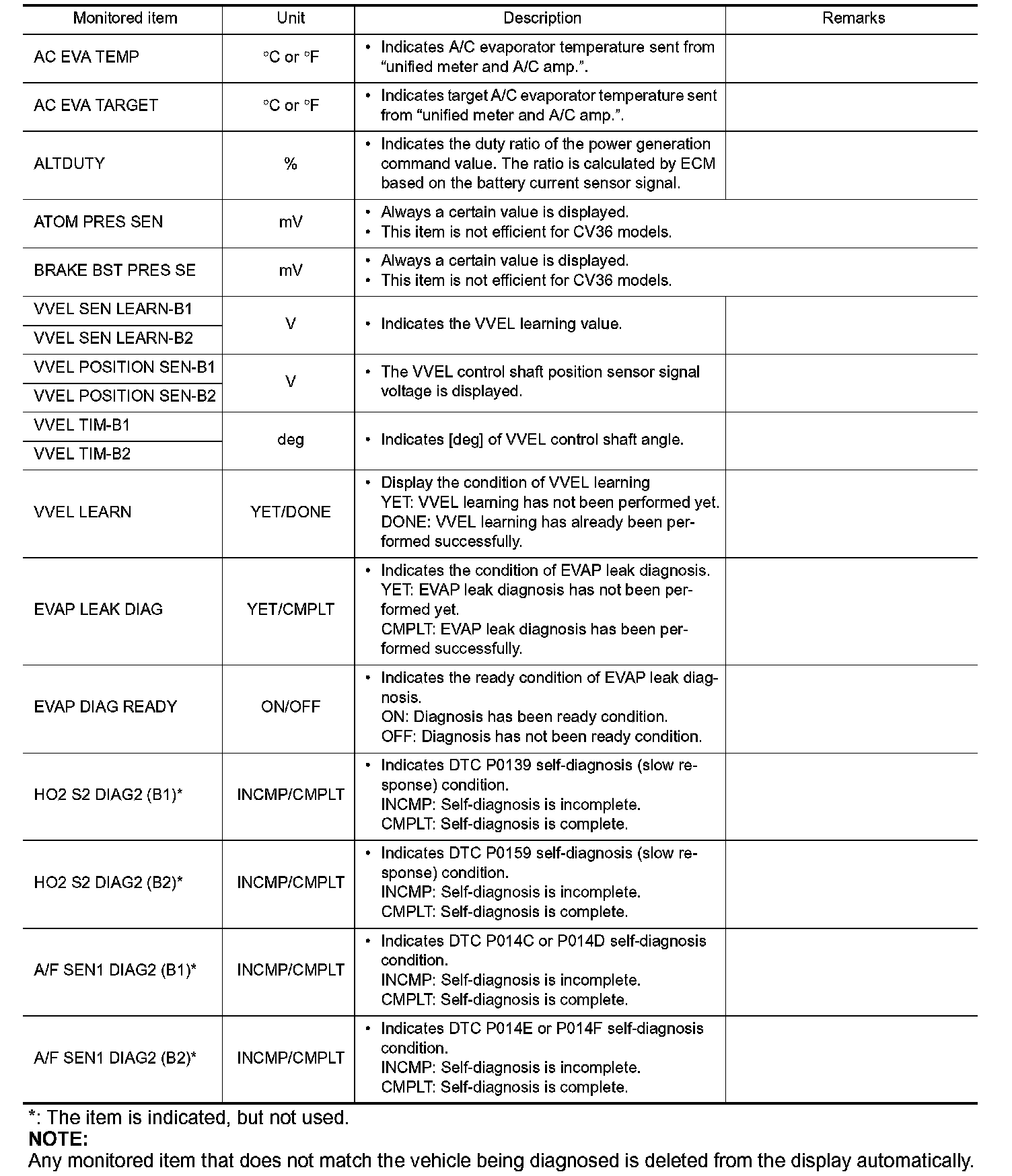

Monitored Item


























ACTIVE TEST MODE

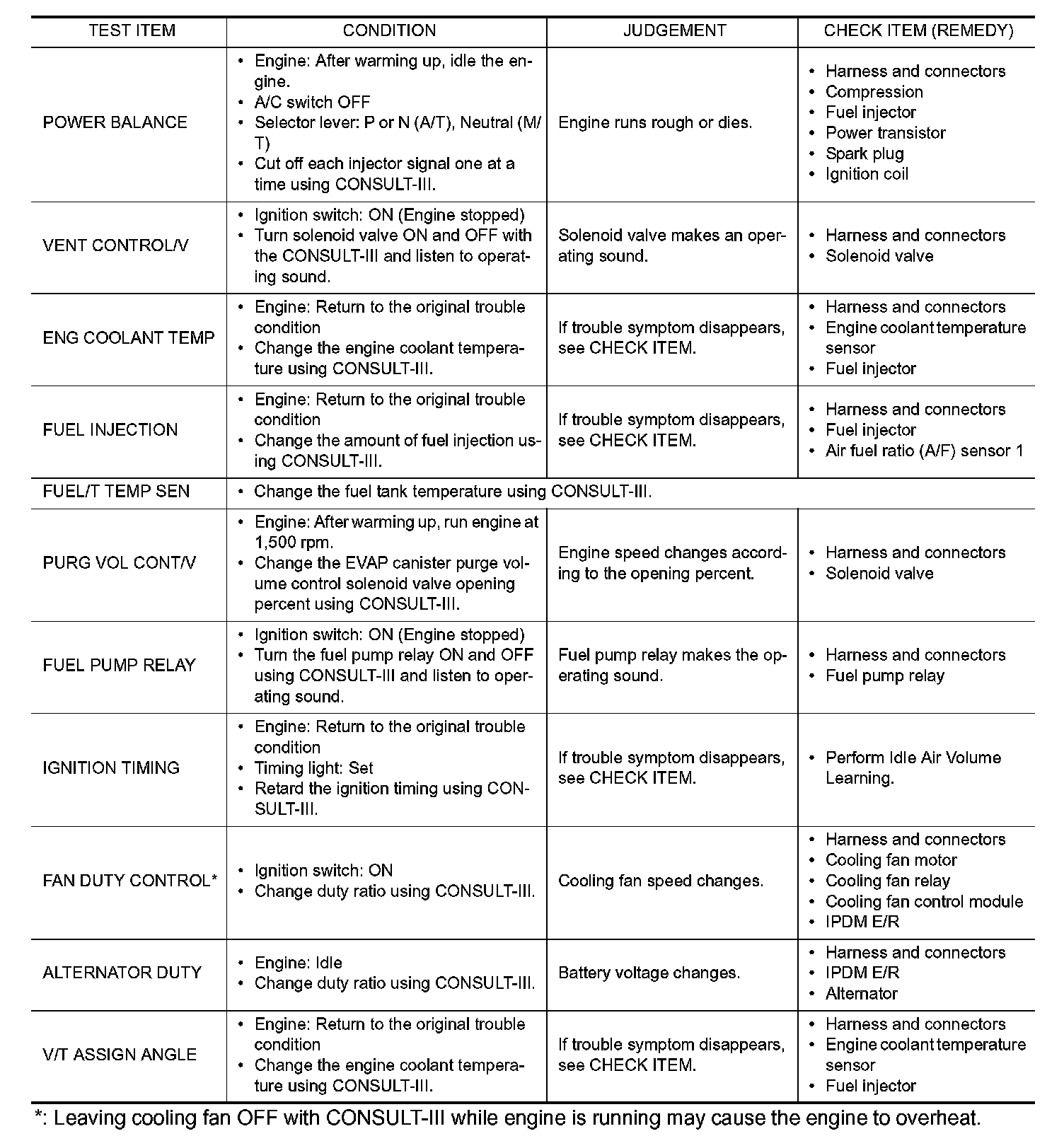

Test Item





DTC & SRT CONFIRMATION MODE

SRT STATUS Mode
For details, Diagnosis Description.

PERMANENT DTC STATUS Mode
For details, Diagnosis Description.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.

NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.

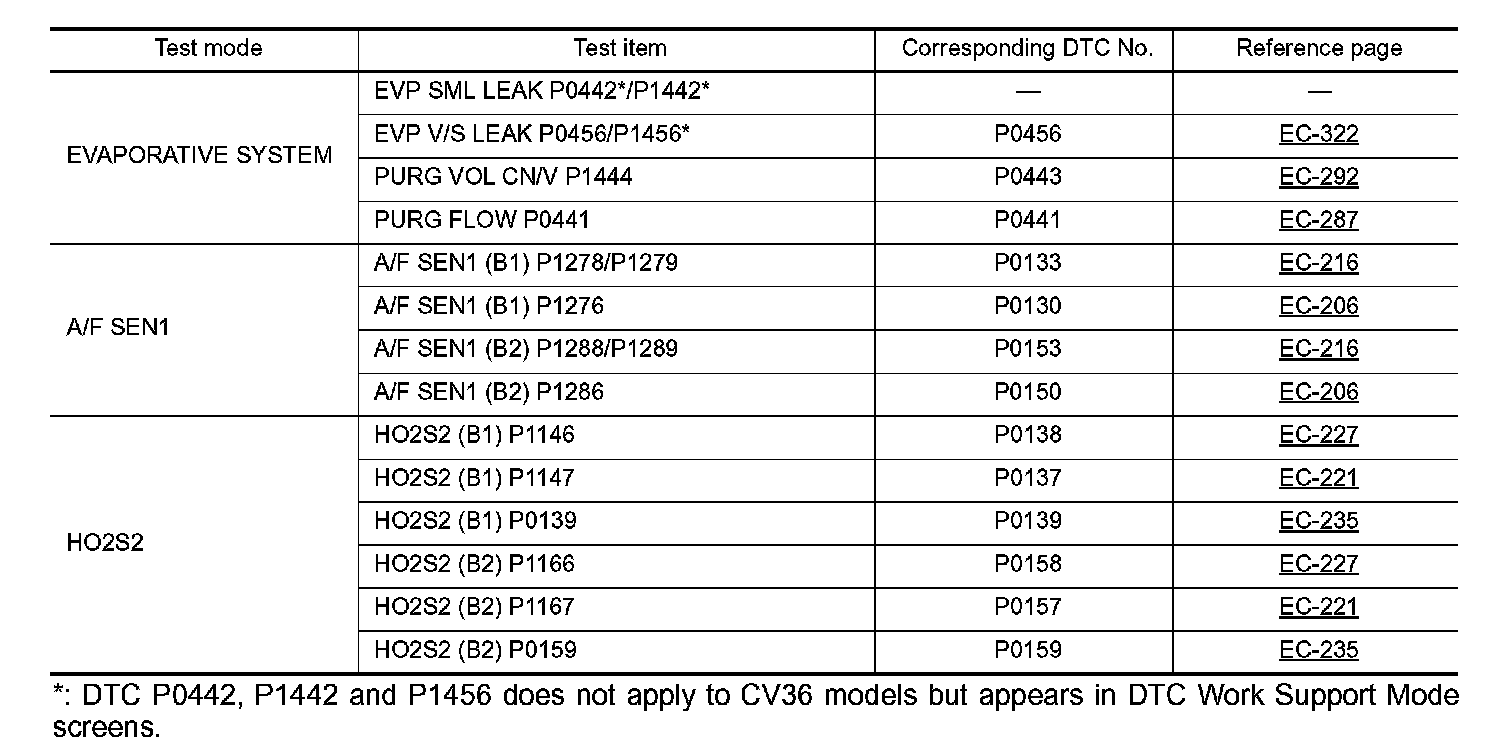

DTC WORK SUPPORT Mode
