Fail Safe
>>
ECM
ECM
ECM
Fail safe
NON DTC RELATED ITEM

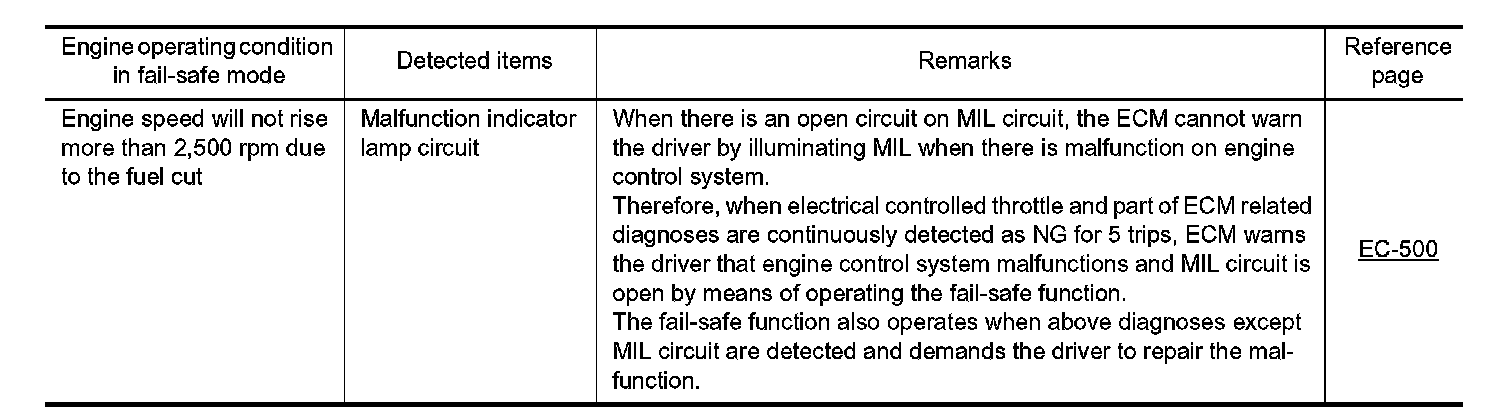

Fail-Safe Chart - Non DTC Related Item:
DTC RELATED ITEM

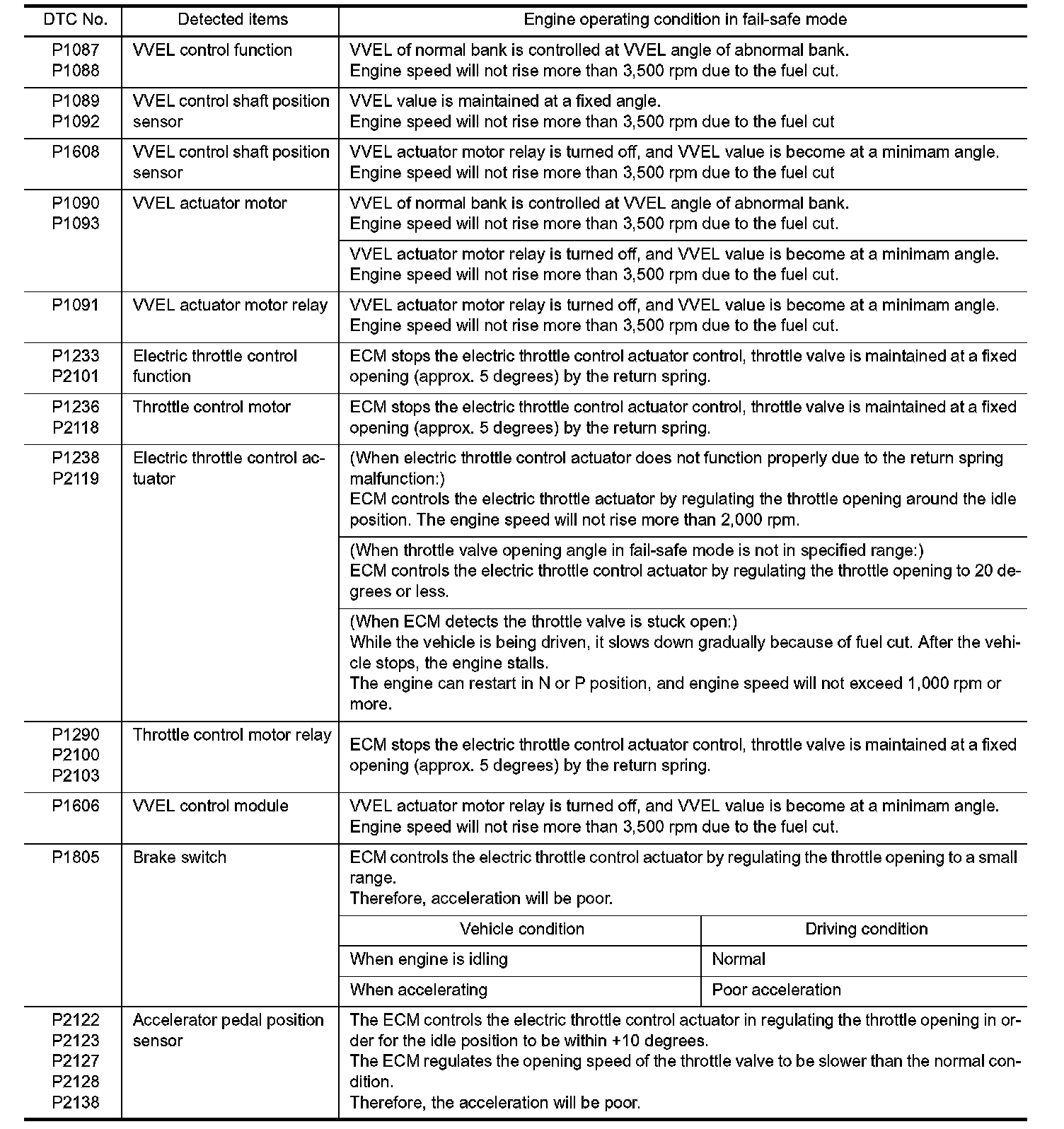

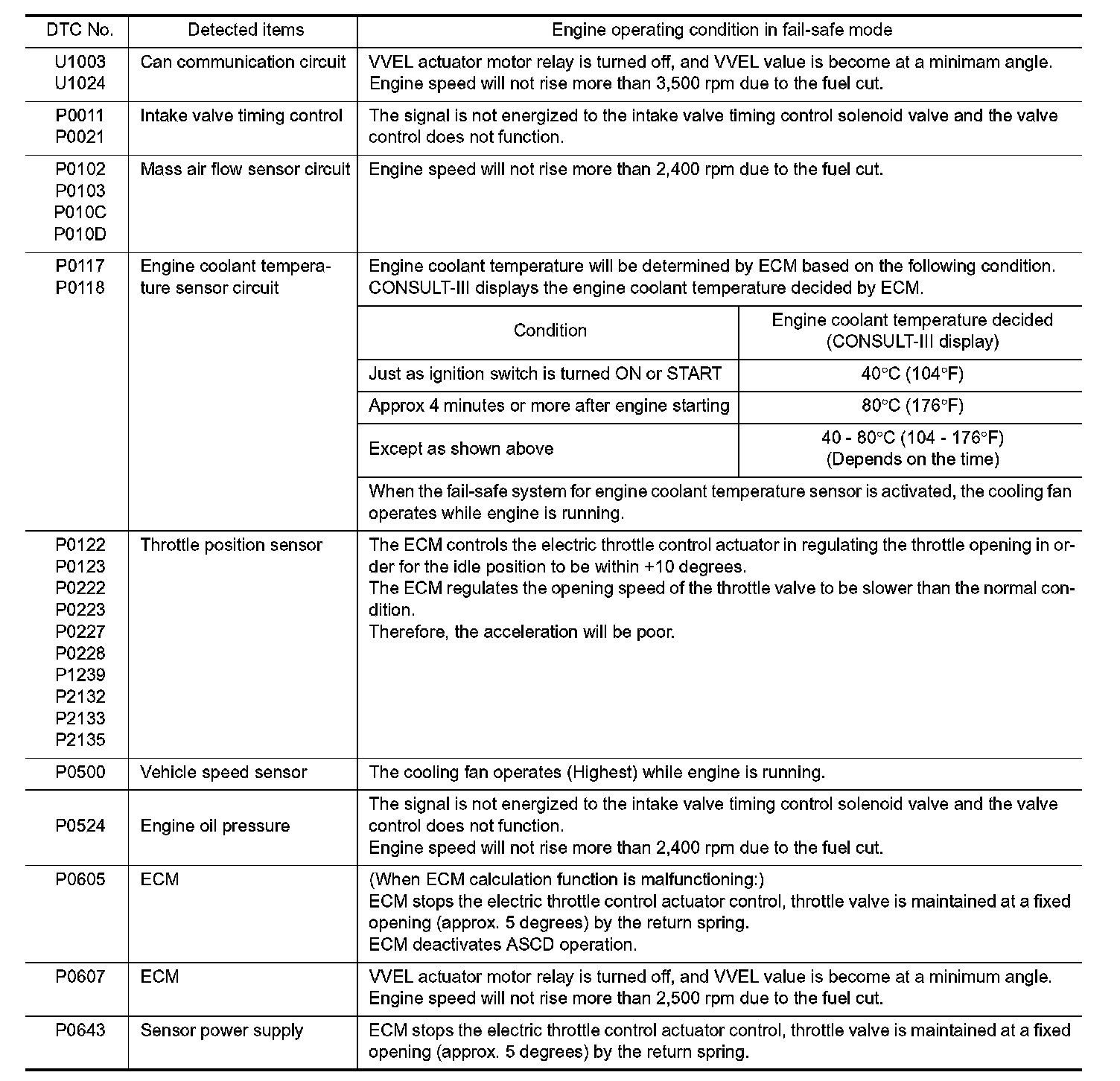

Fail-Safe Chart - DTC Related Item (Part 1):
Fail-Safe Chart - DTC Related Item (Part 2):
