CAN

IPDM-E BRANCH LINE CIRCUIT


Diagnosis Procedure

1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the IPDM E/R for damage, bend and loose connection (unit side and connector side).
Is the inspection result normal?
YES - GO TO 2.
NO - Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of IPDM E/R.

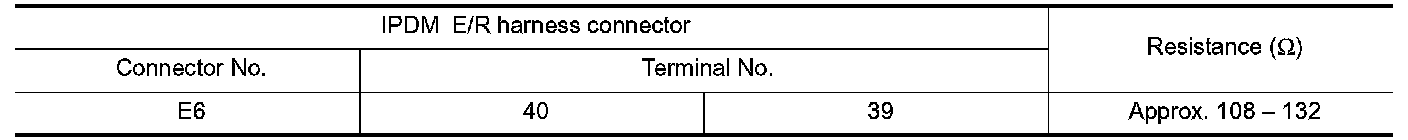

2. Check the resistance between the IPDM E/R harness connector terminals.





Is the measurement value within the specification?
YES - GO TO 3.
NO - Repair the IPDM E/R branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the IPDM E/R. Power Supply and Ground Circuit.
Is the inspection result normal?
YES (Present error)-Replace the IPDM E/R. Exploded View.
YES (Past error)-Error was detected in the IPDM E/R branch line.
NO - Repair the power supply and the ground circuit.
