Front Combination Lamp
>>
Exploded View
Exploded View
FRONT COMBINATION LAMP

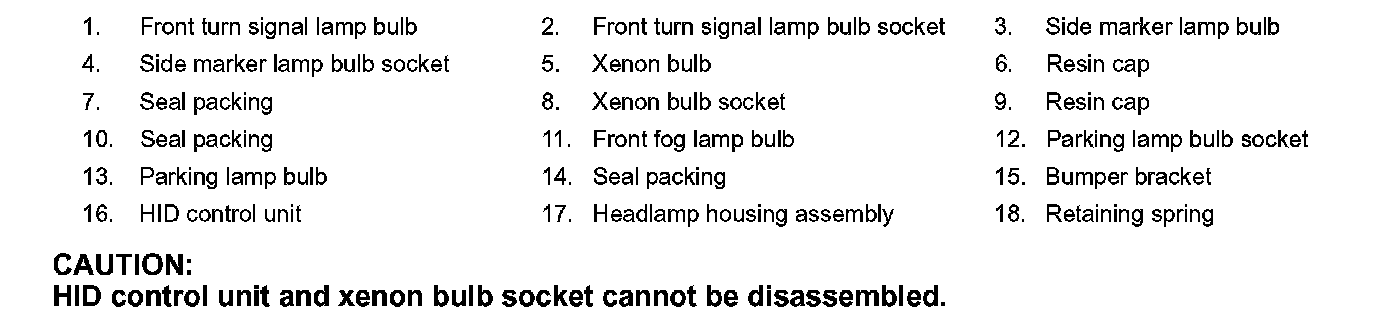

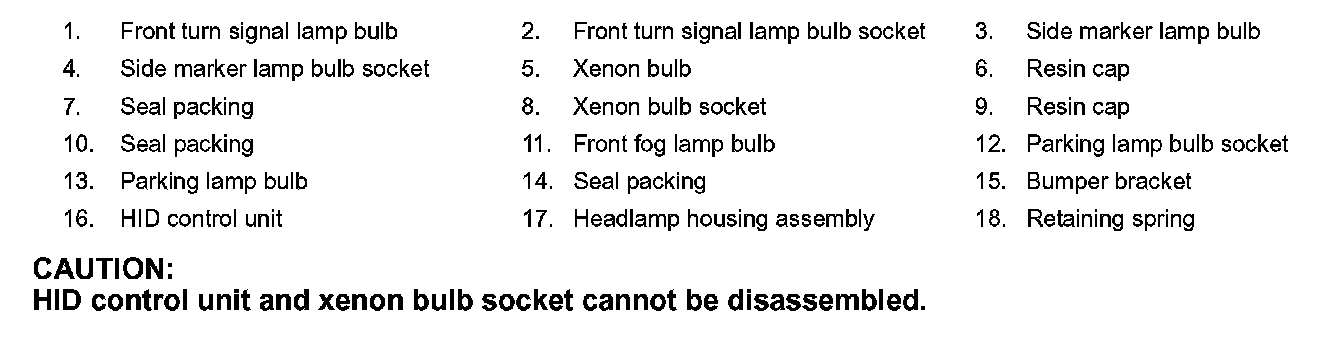

Exploded View

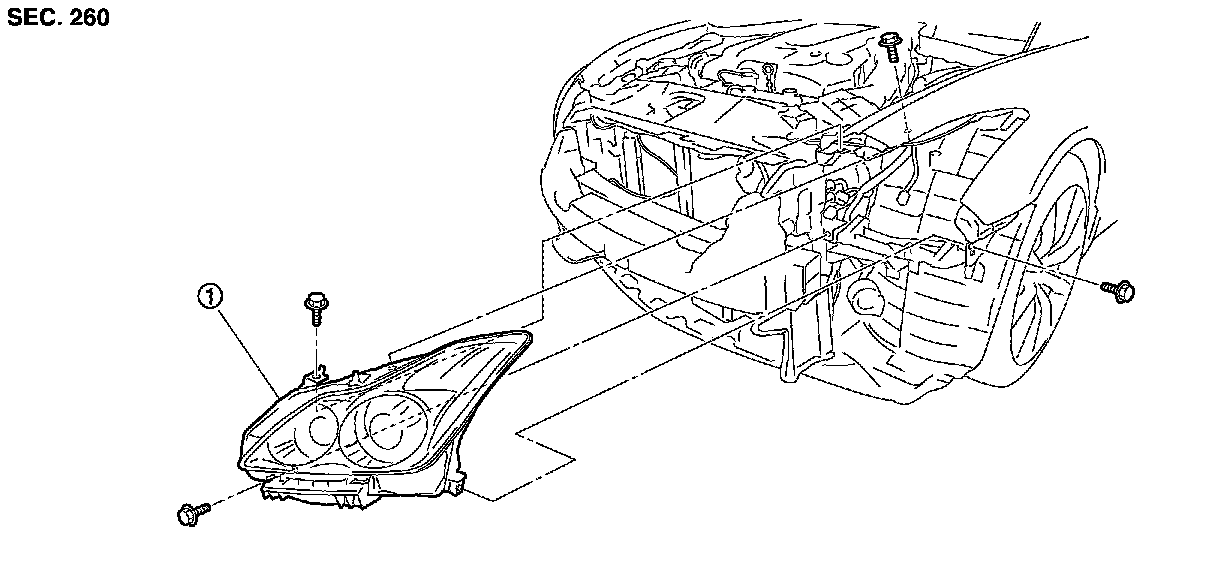

REMOVAL
DISASSEMBLY
Without AFS
With AFS
