Interior Lighting





BCM (BODY CONTROL MODULE)


Reference Value

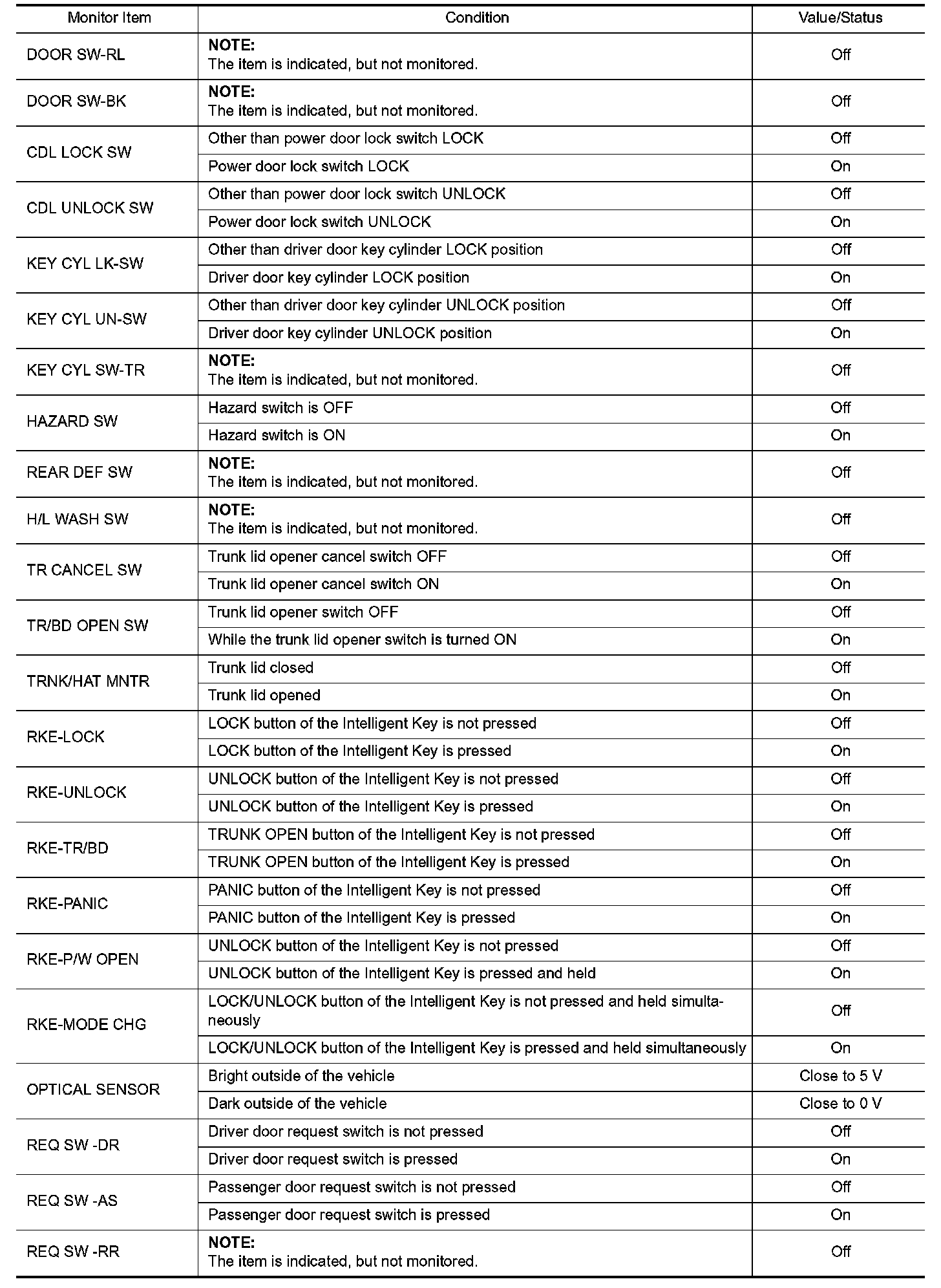

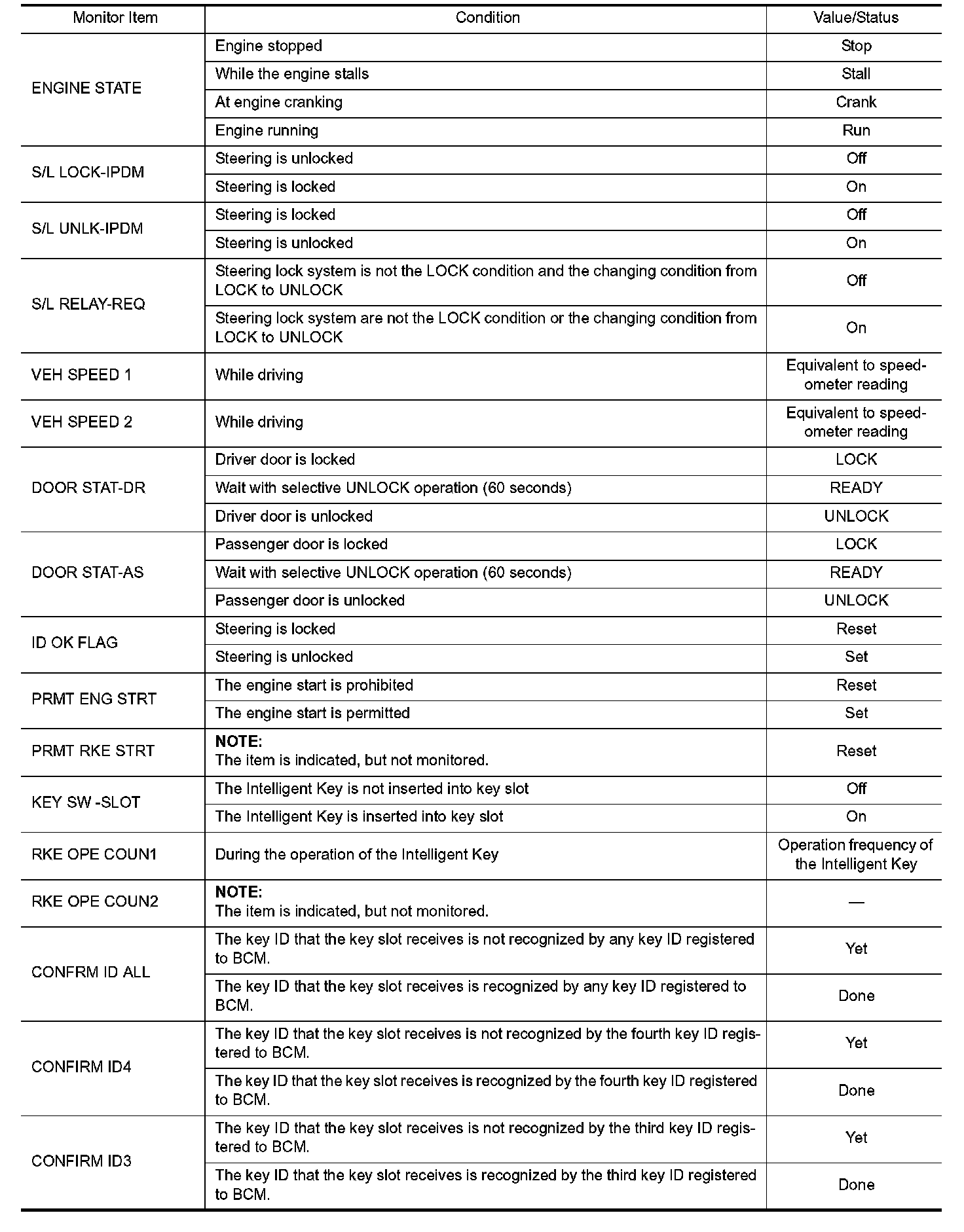

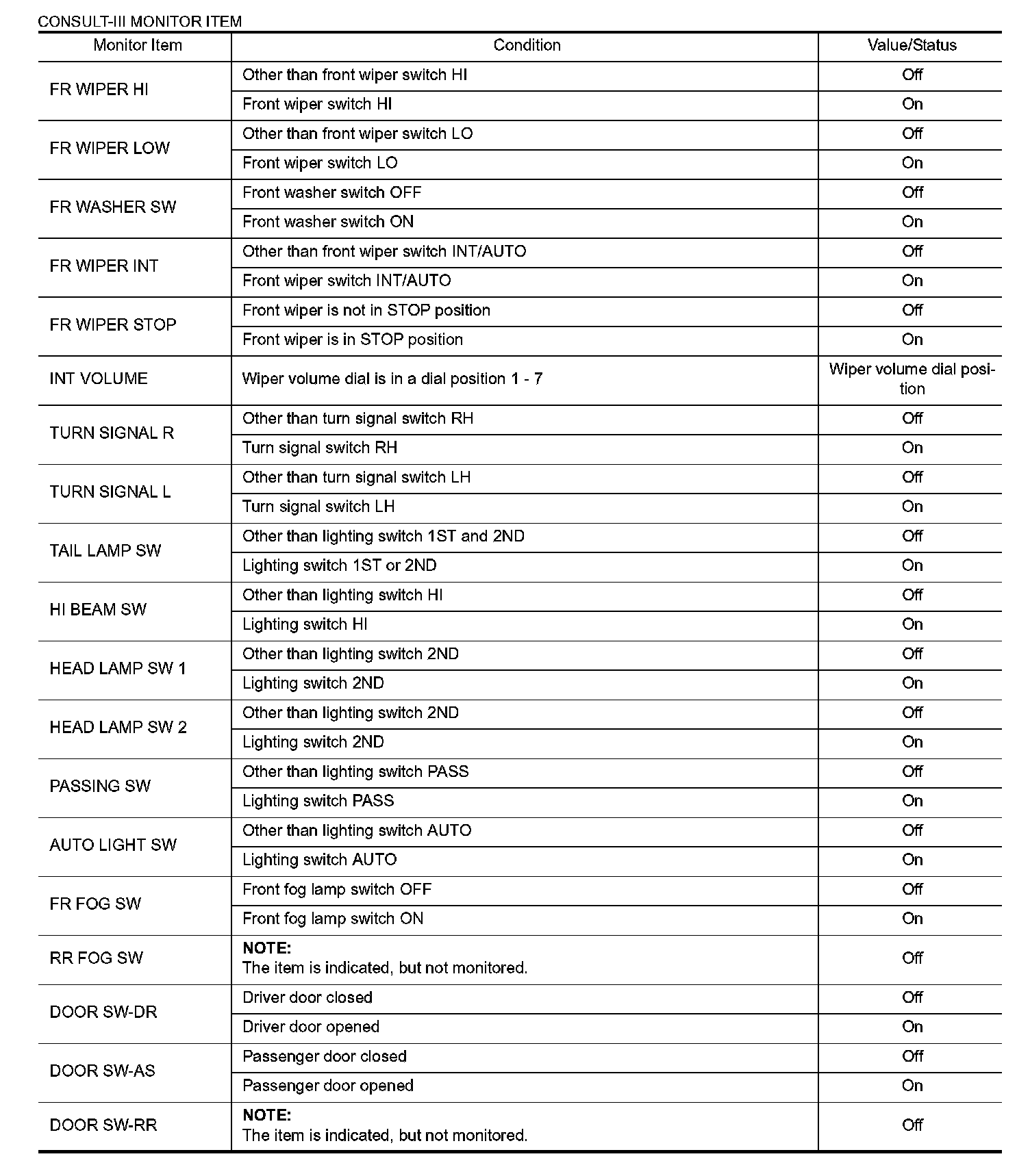

VALUES ON THE DIAGNOSIS TOOL

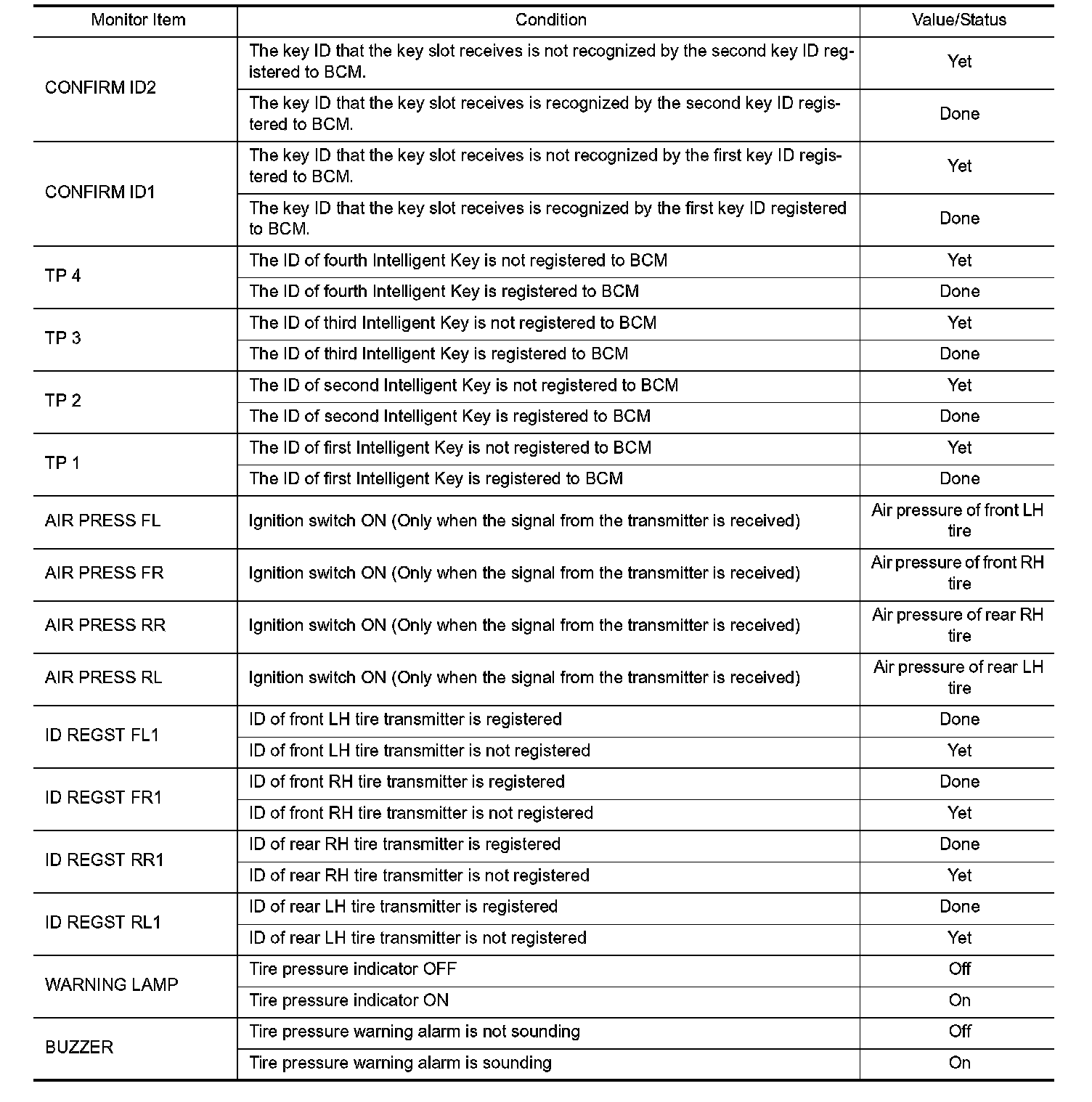

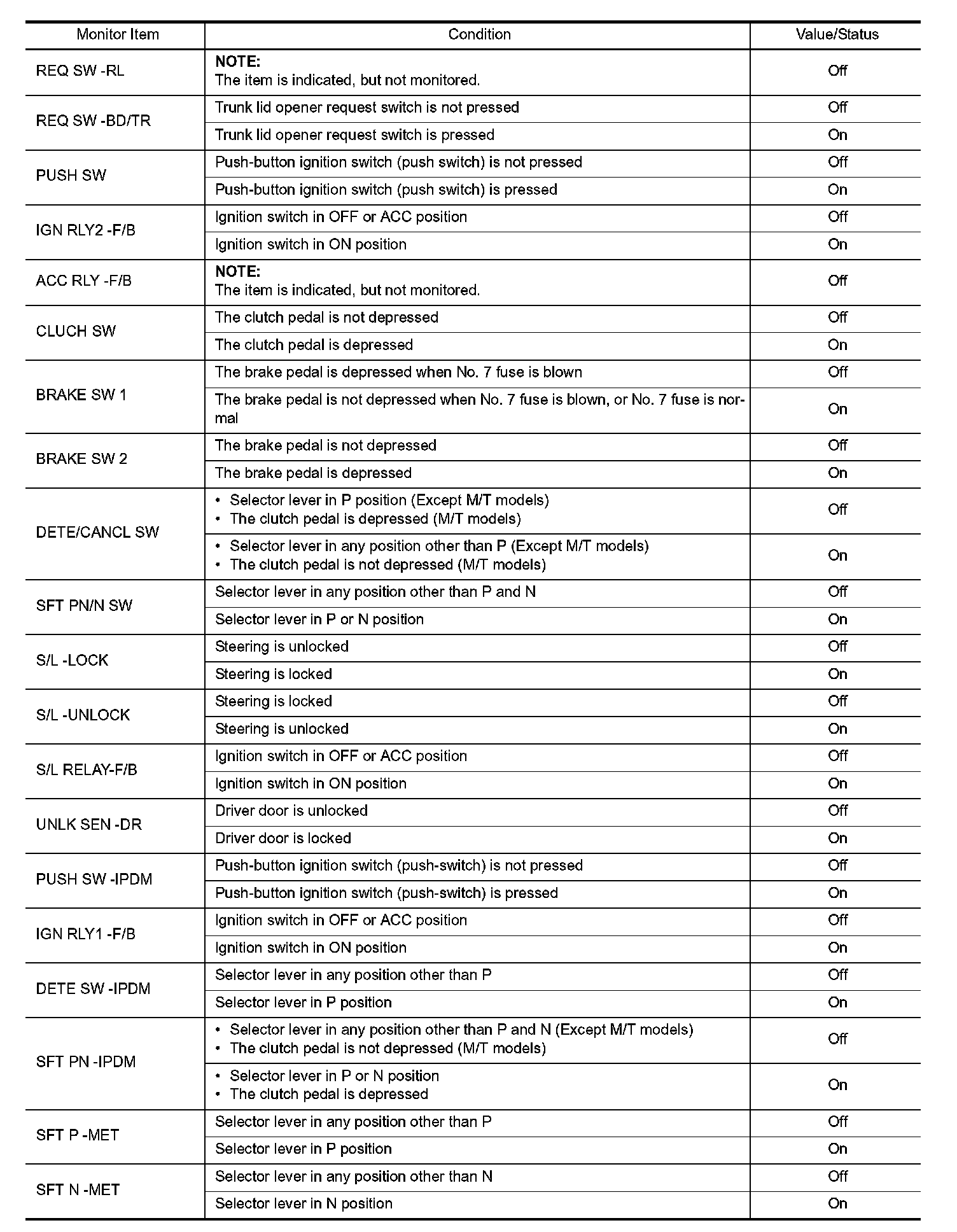

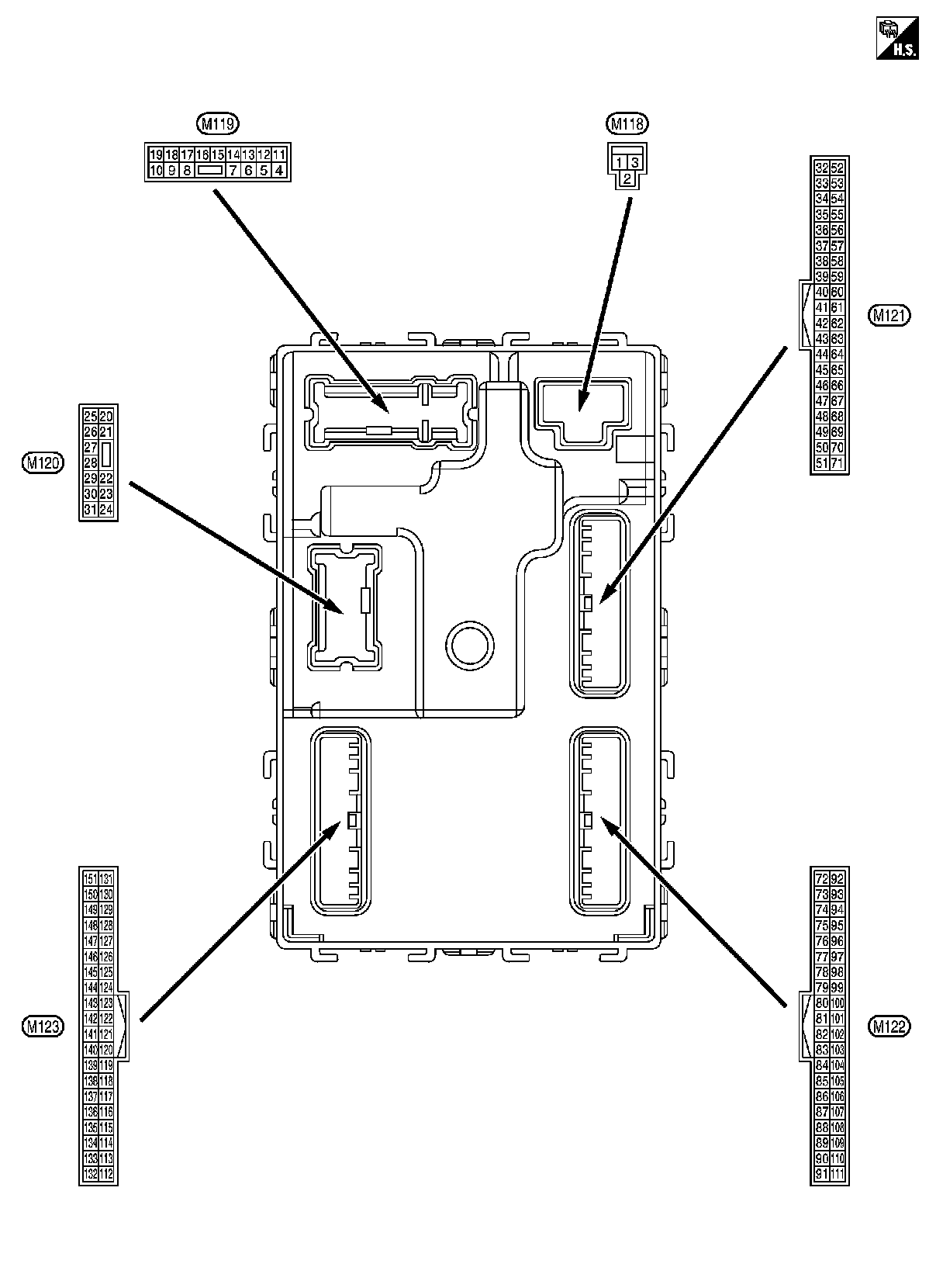

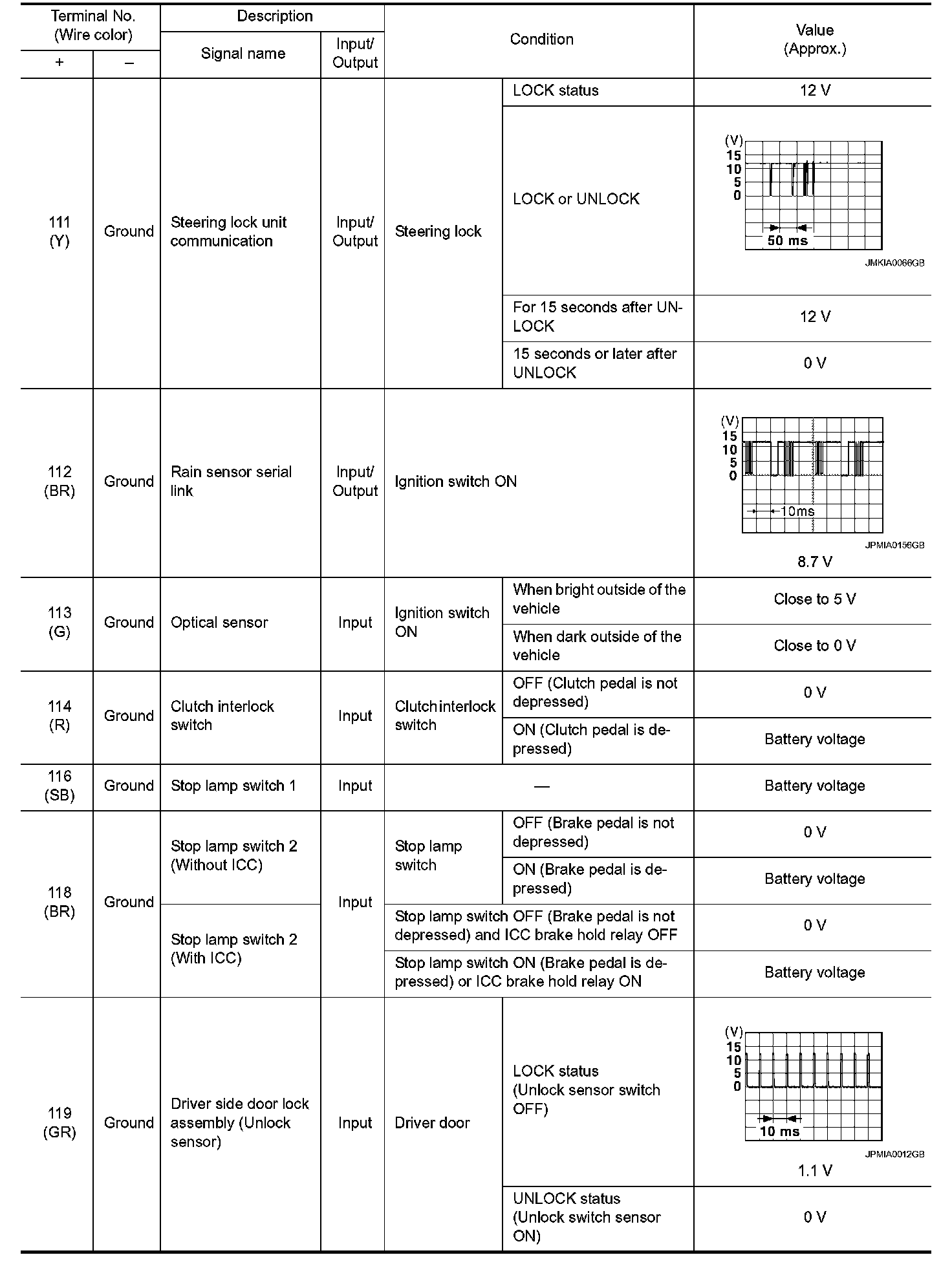

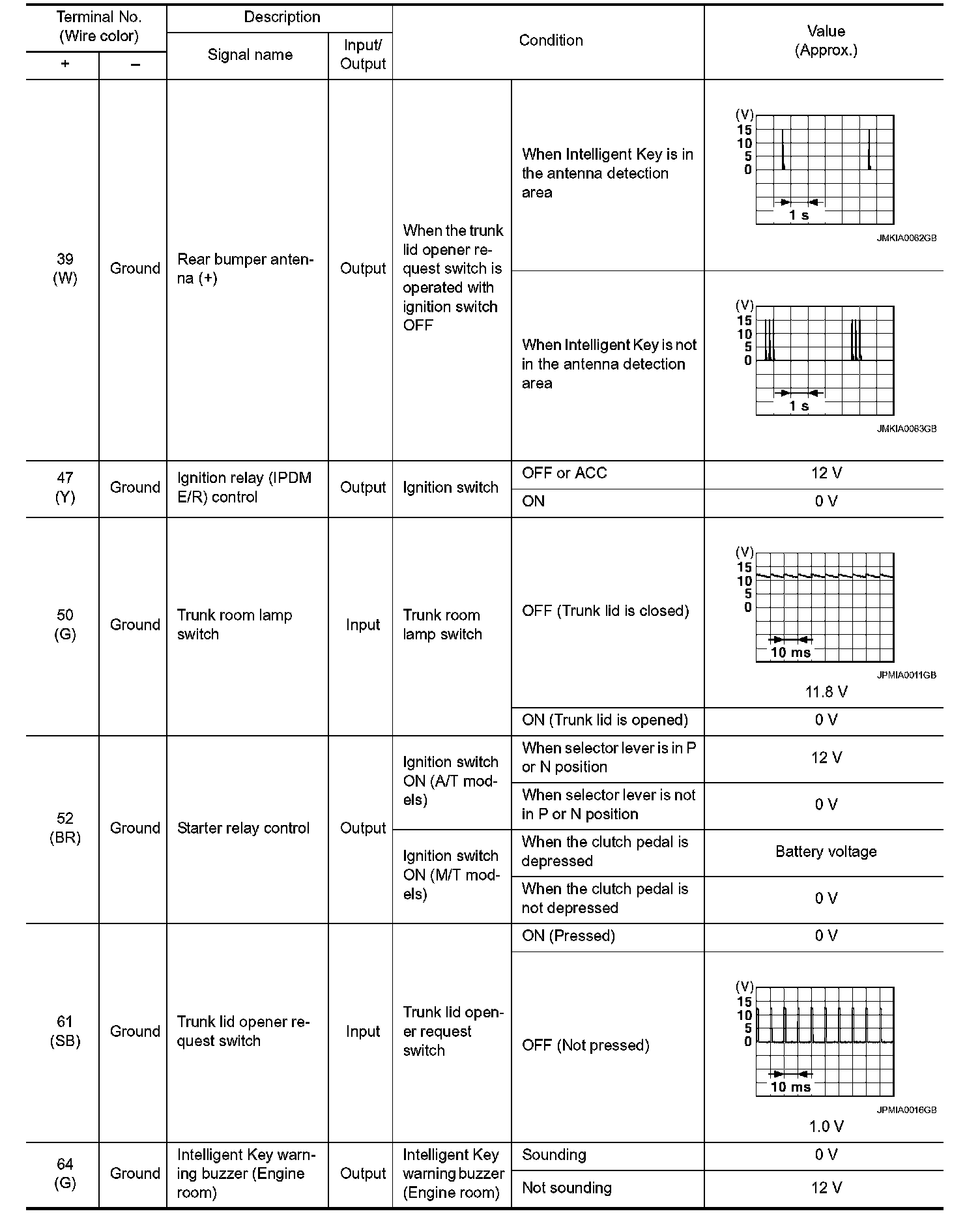

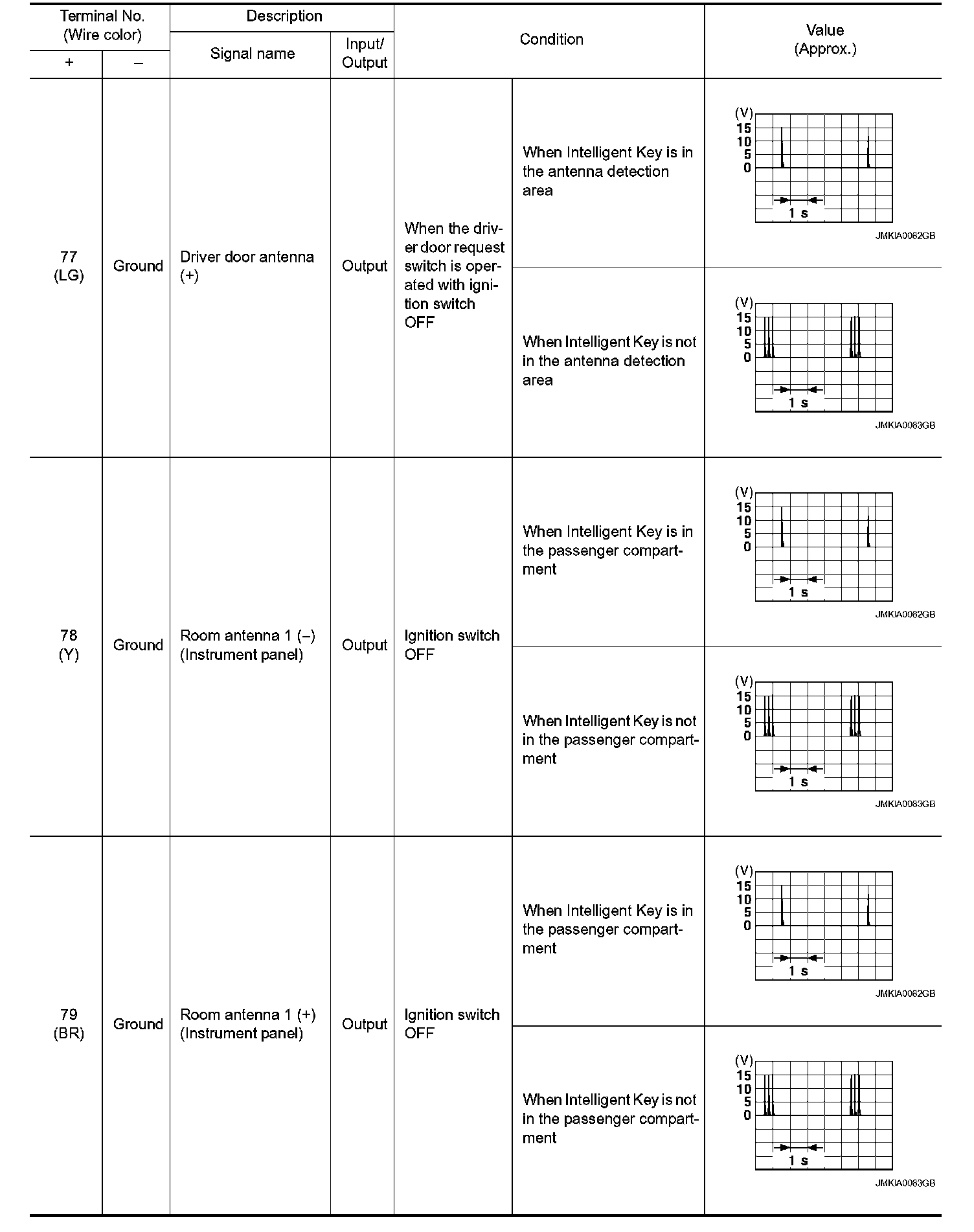

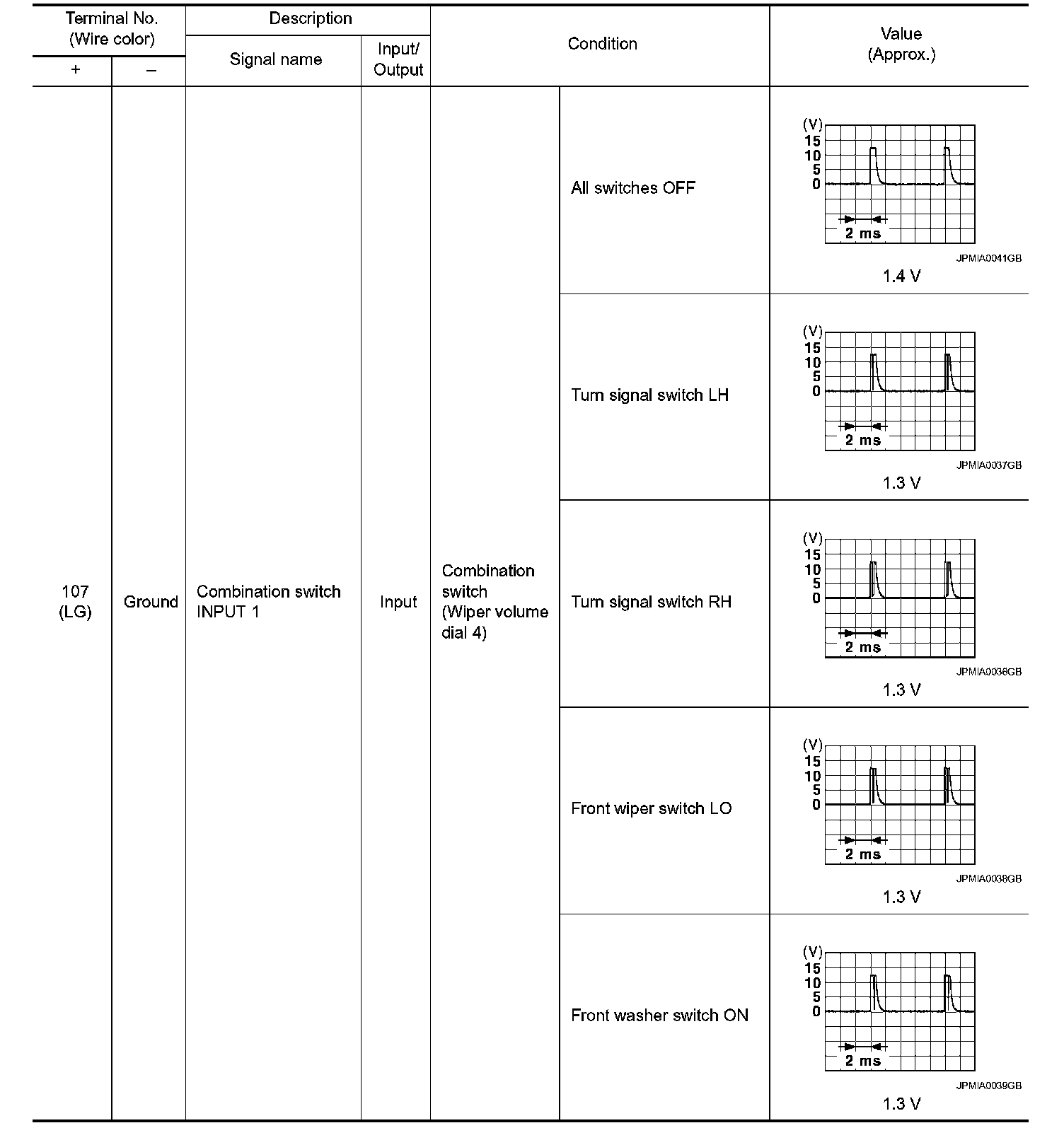

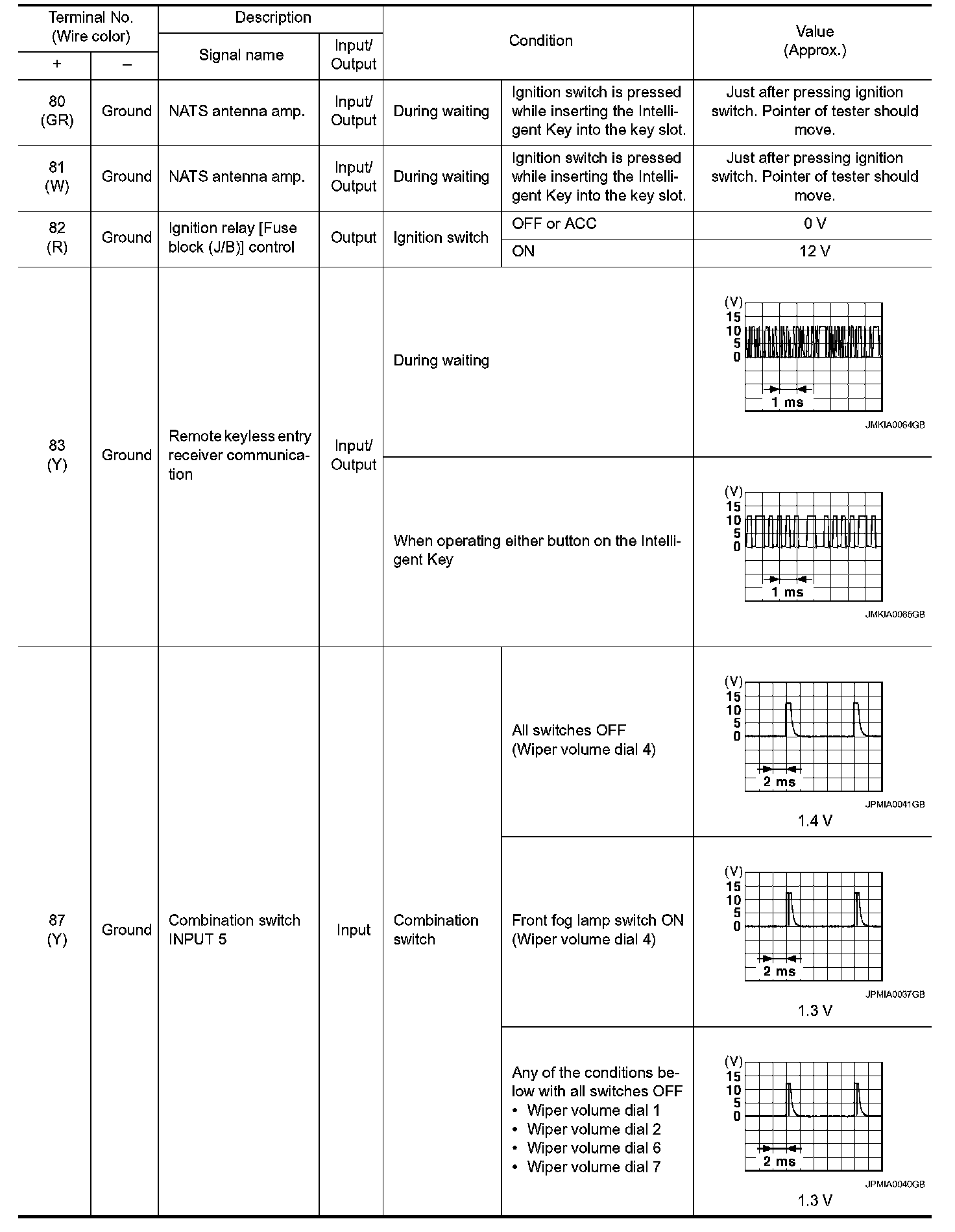

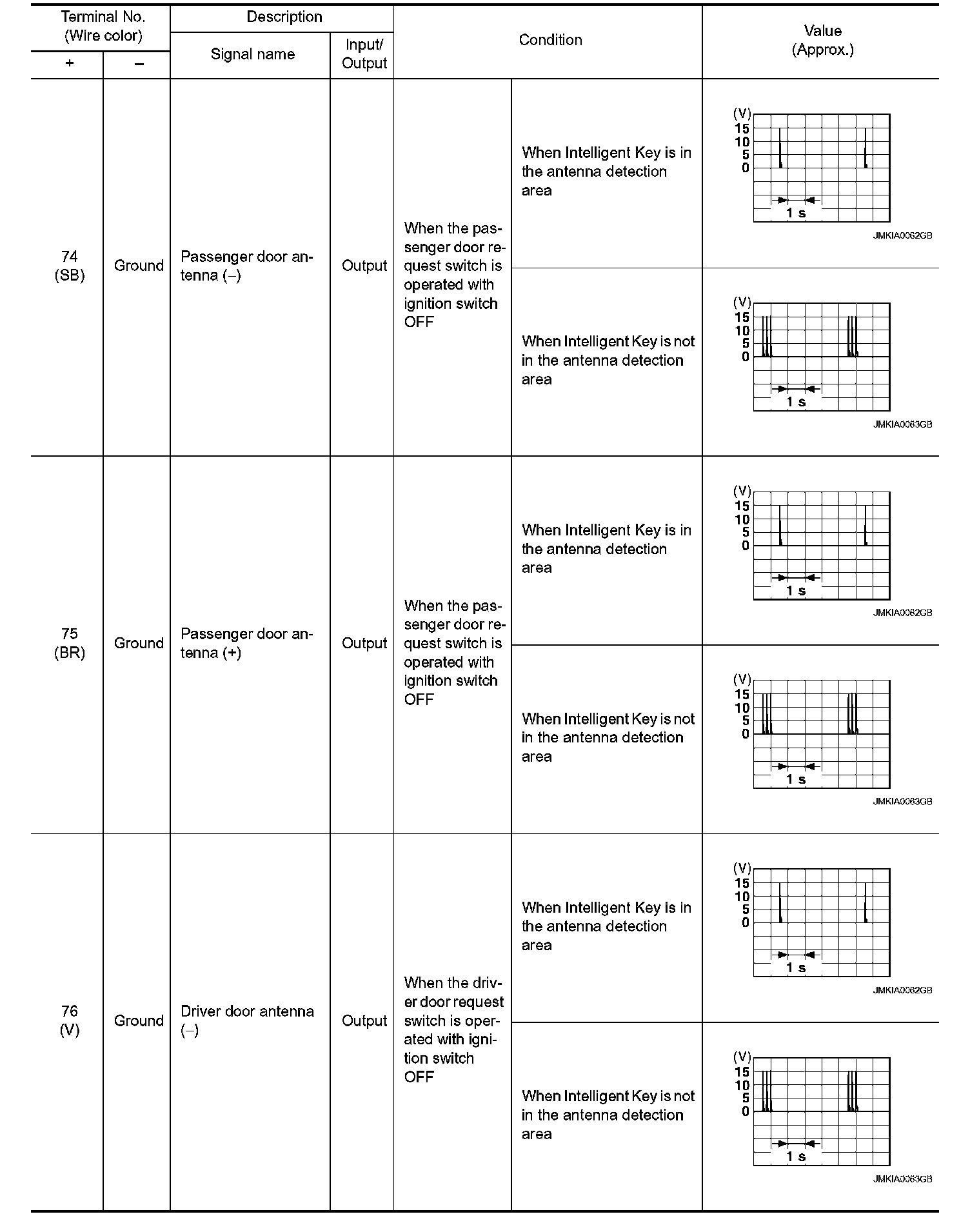

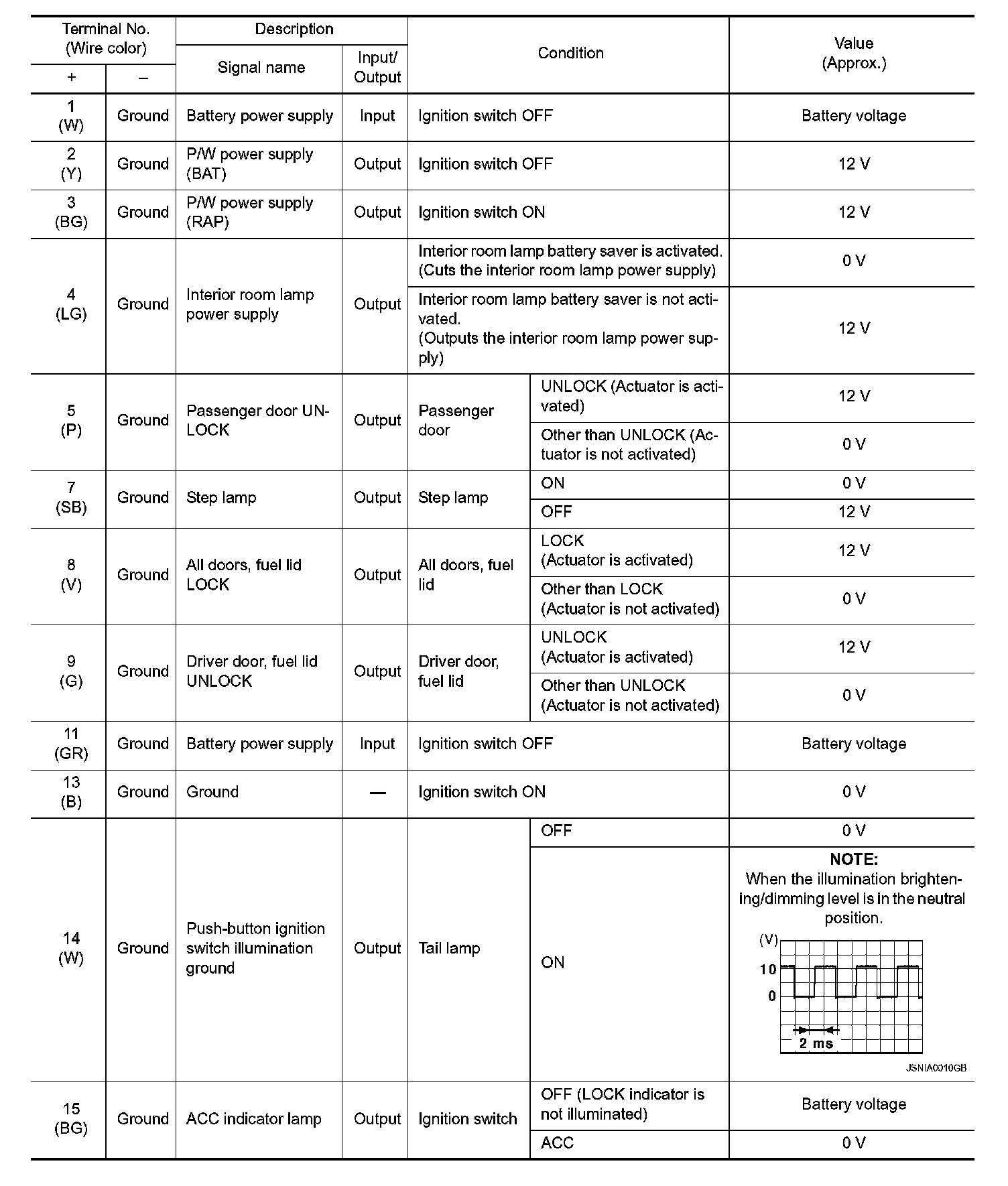

TERMINAL LAYOUT

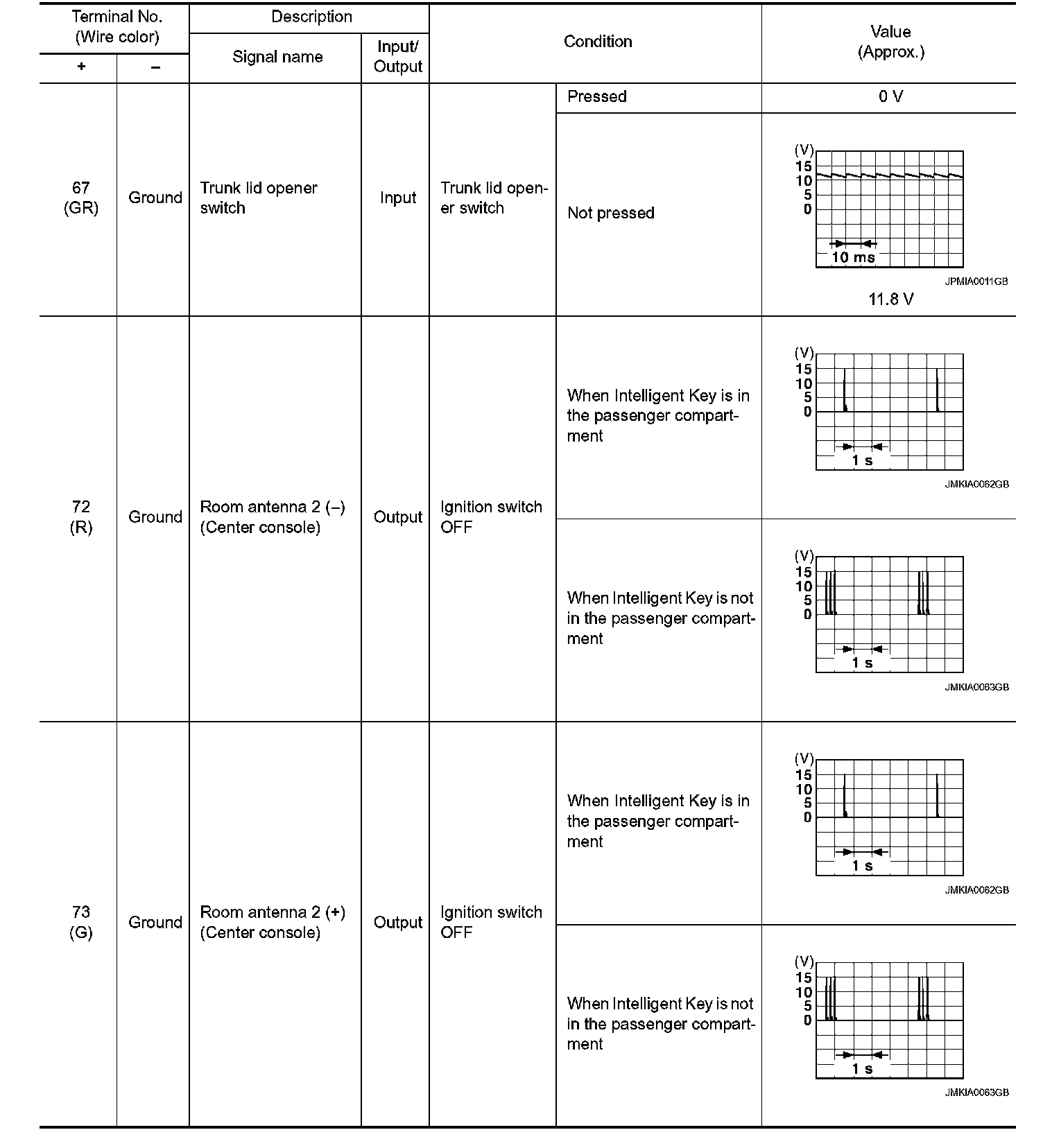

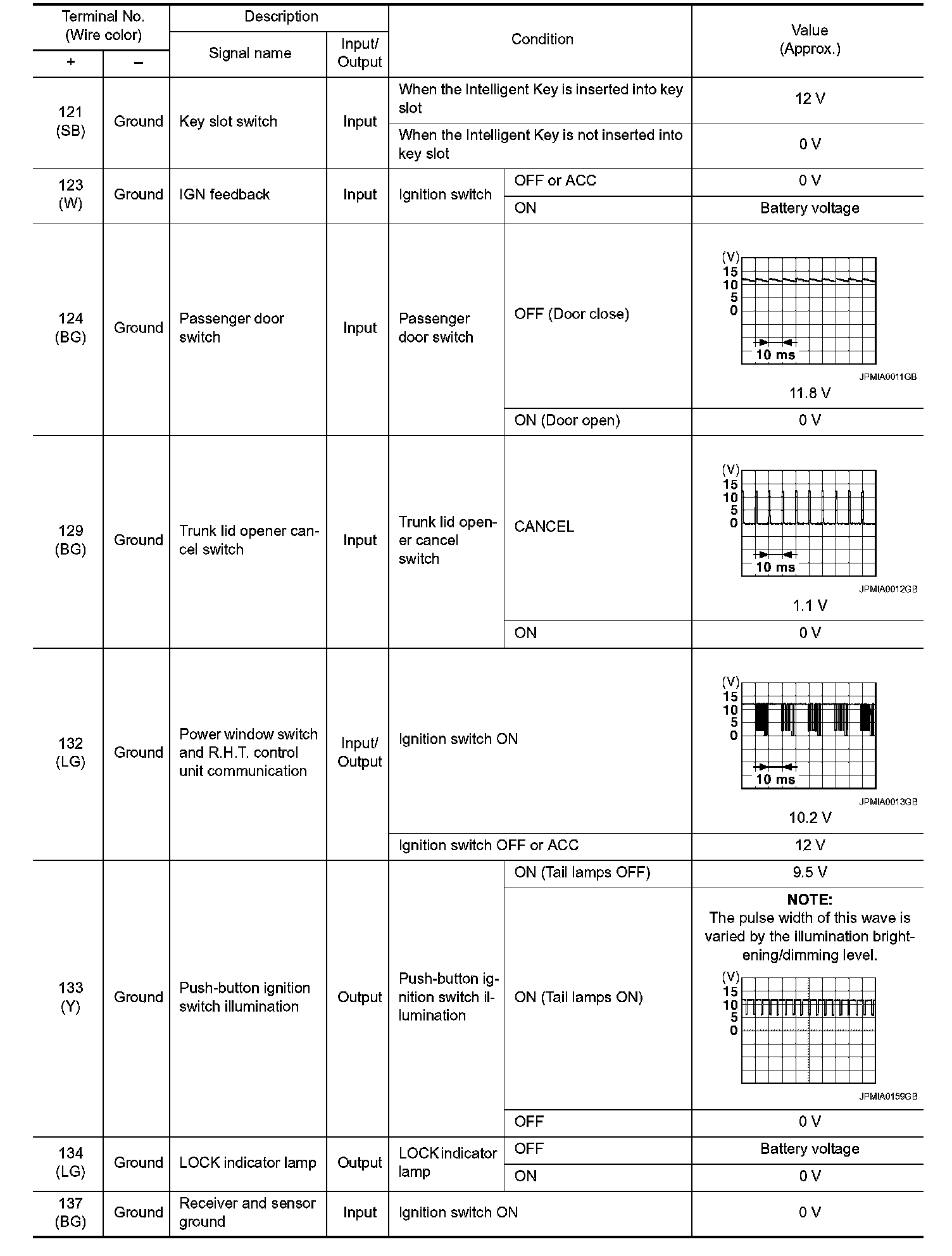

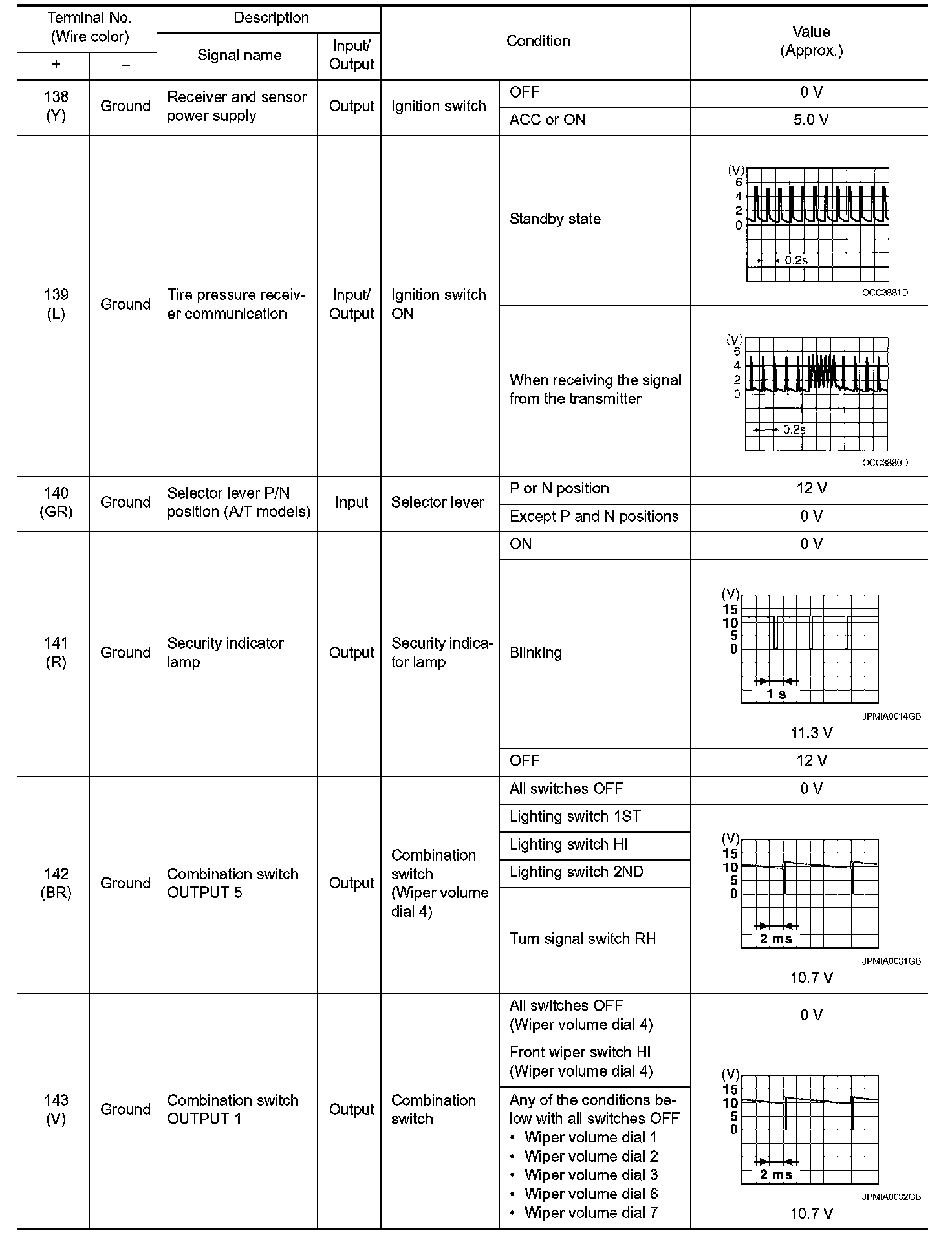

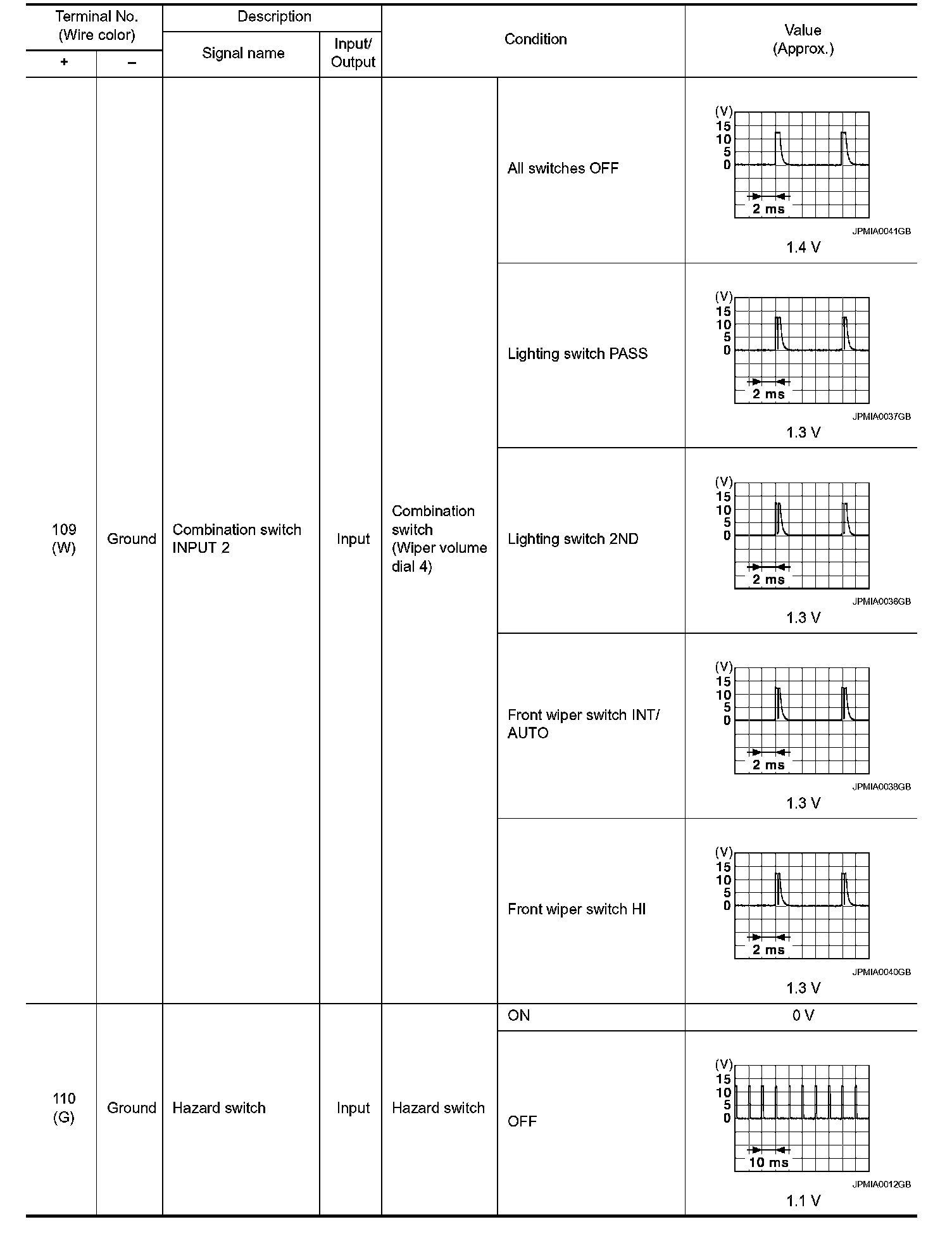

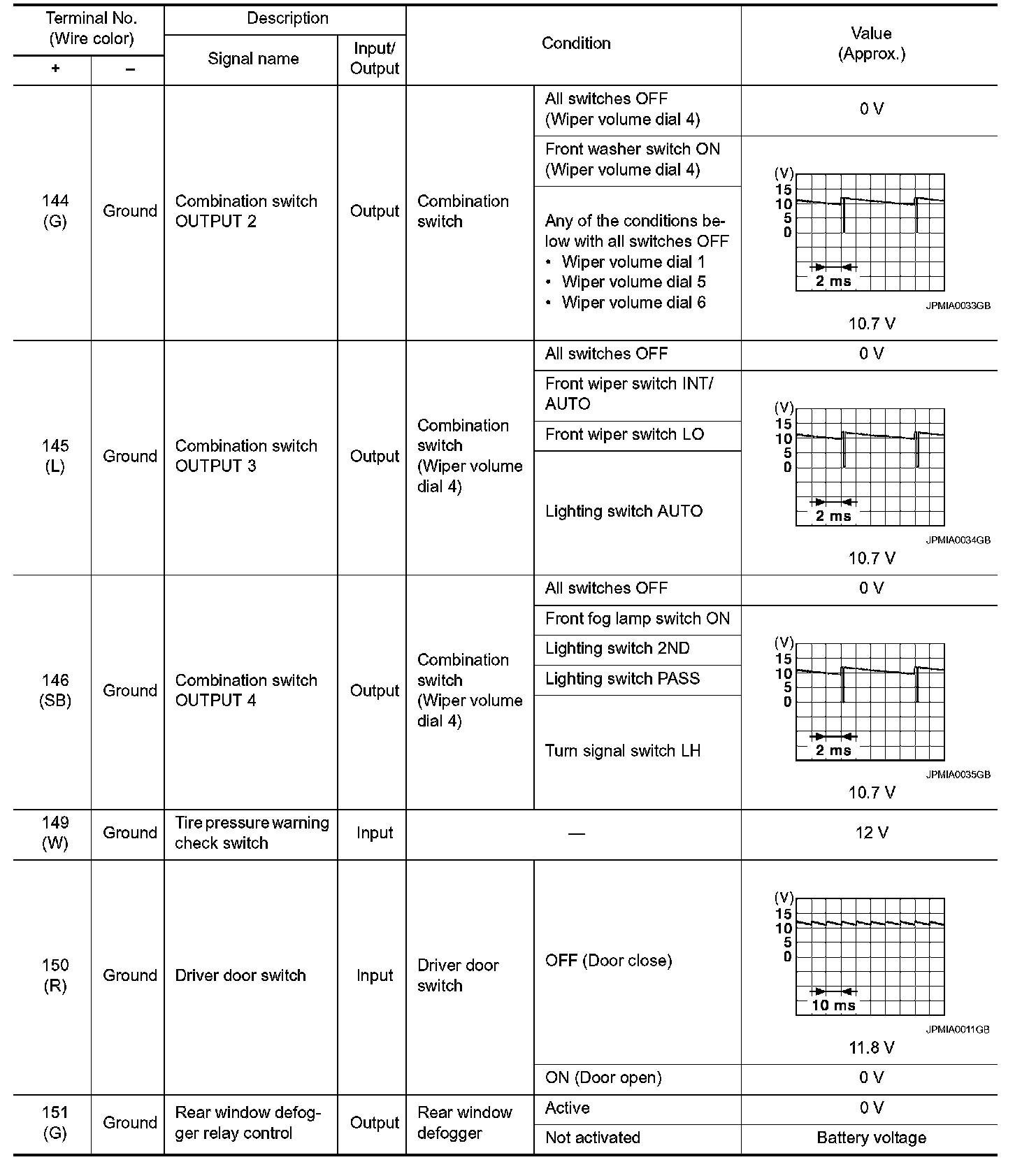

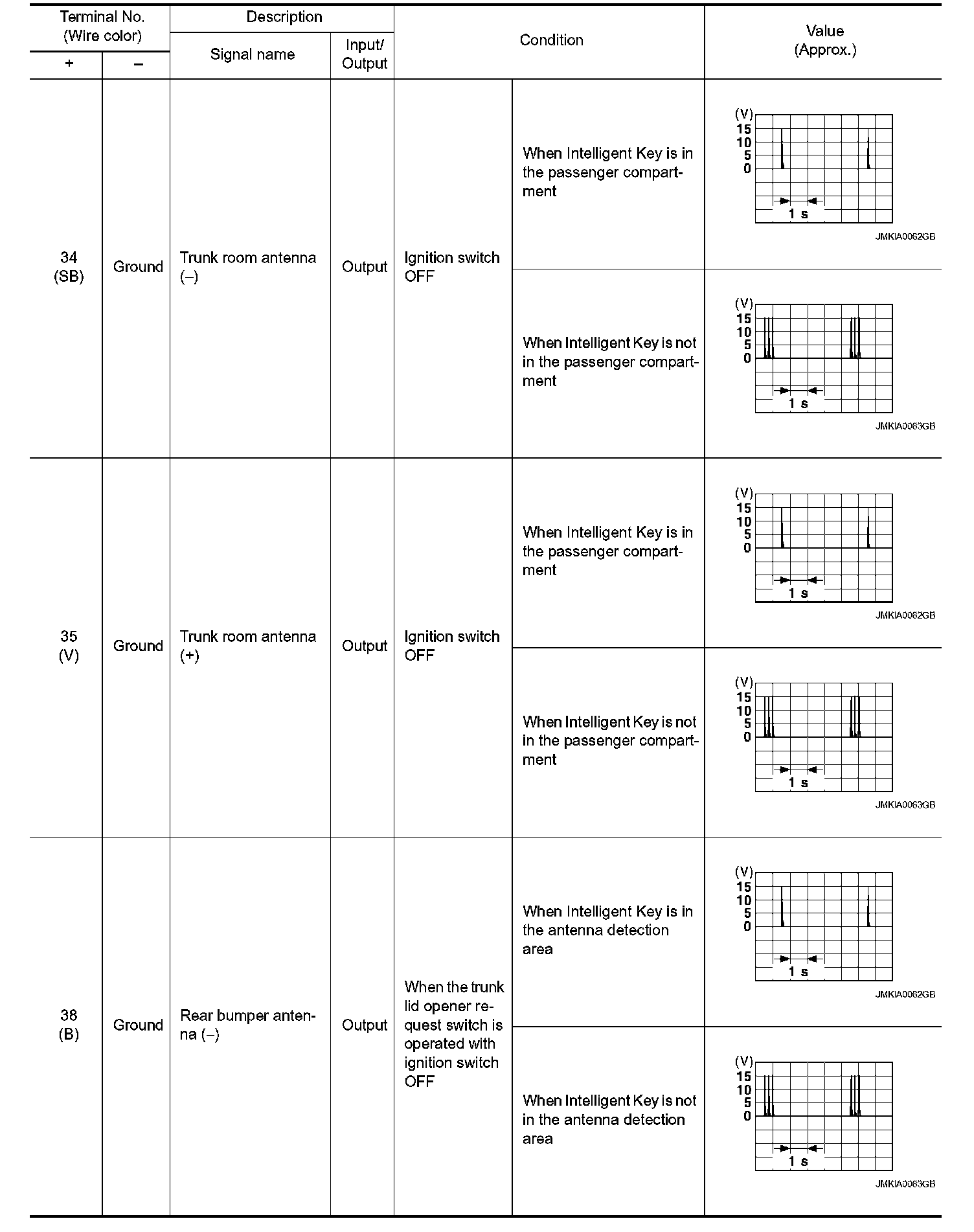

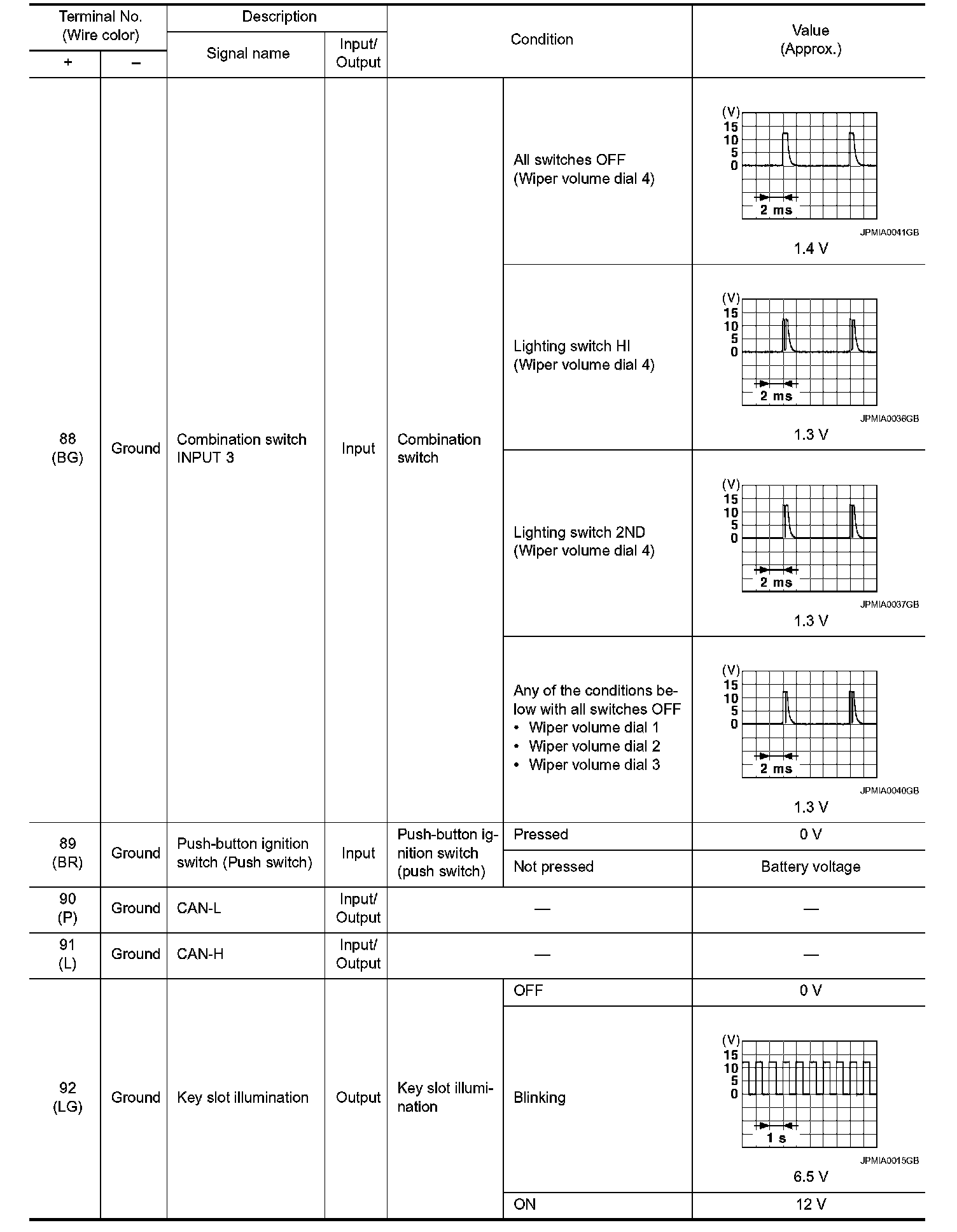

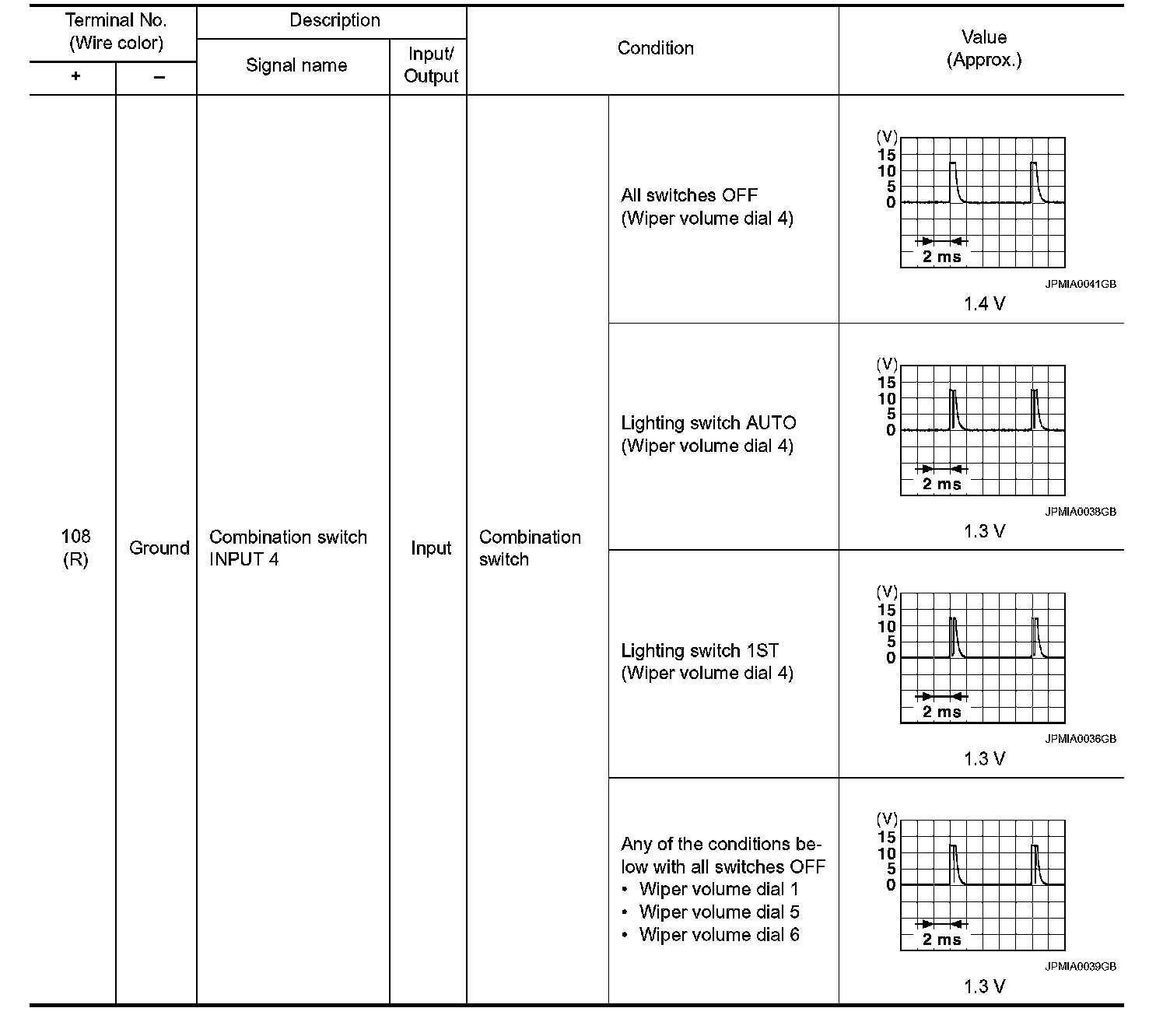

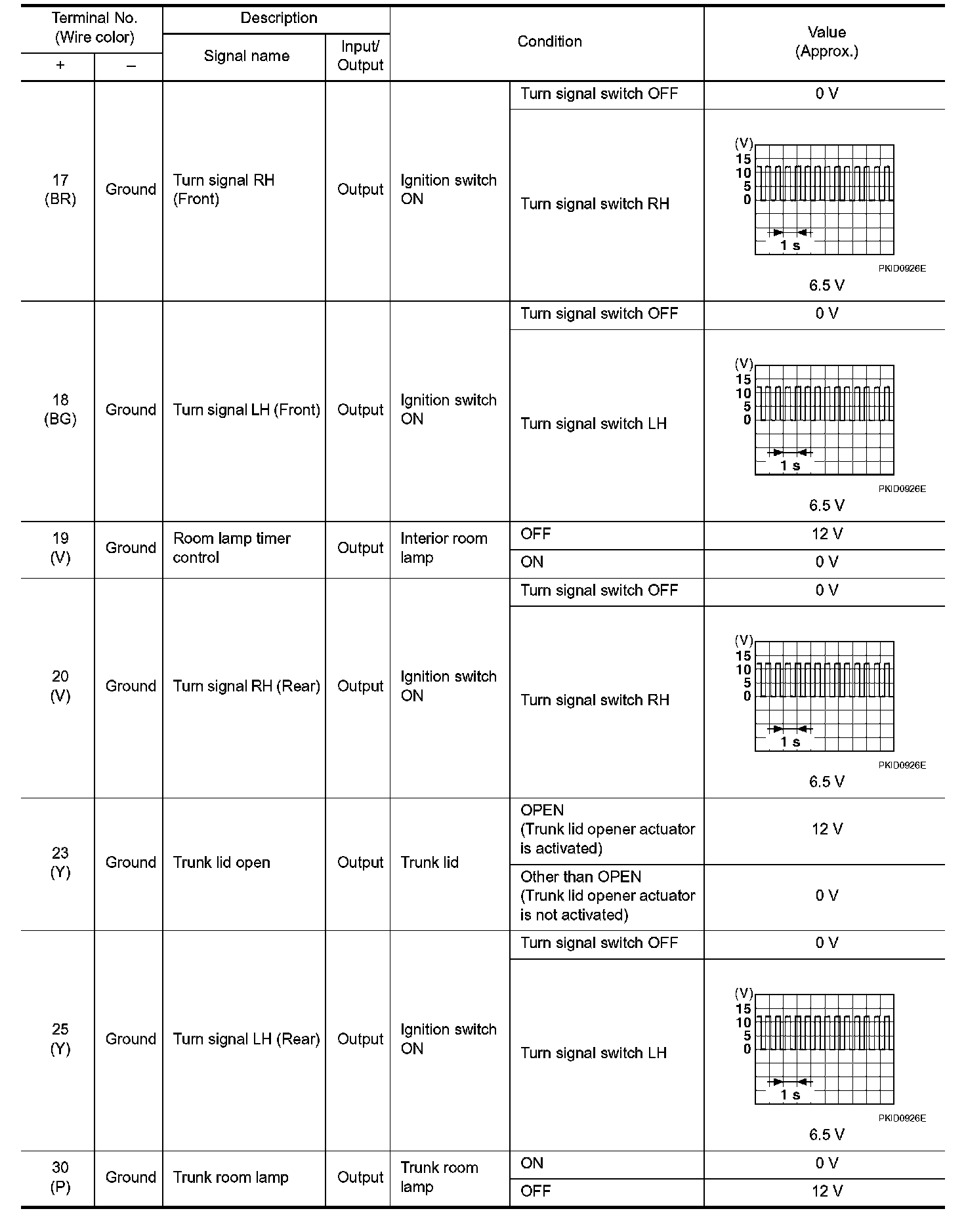

PHYSICAL VALUES
