Interior Lighting





BCM (BODY CONTROL MODULE)


Fail-safe


FAIL-SAFE CONTROL BY DTC
BCM performs fail-safe control when any DTC are detected.

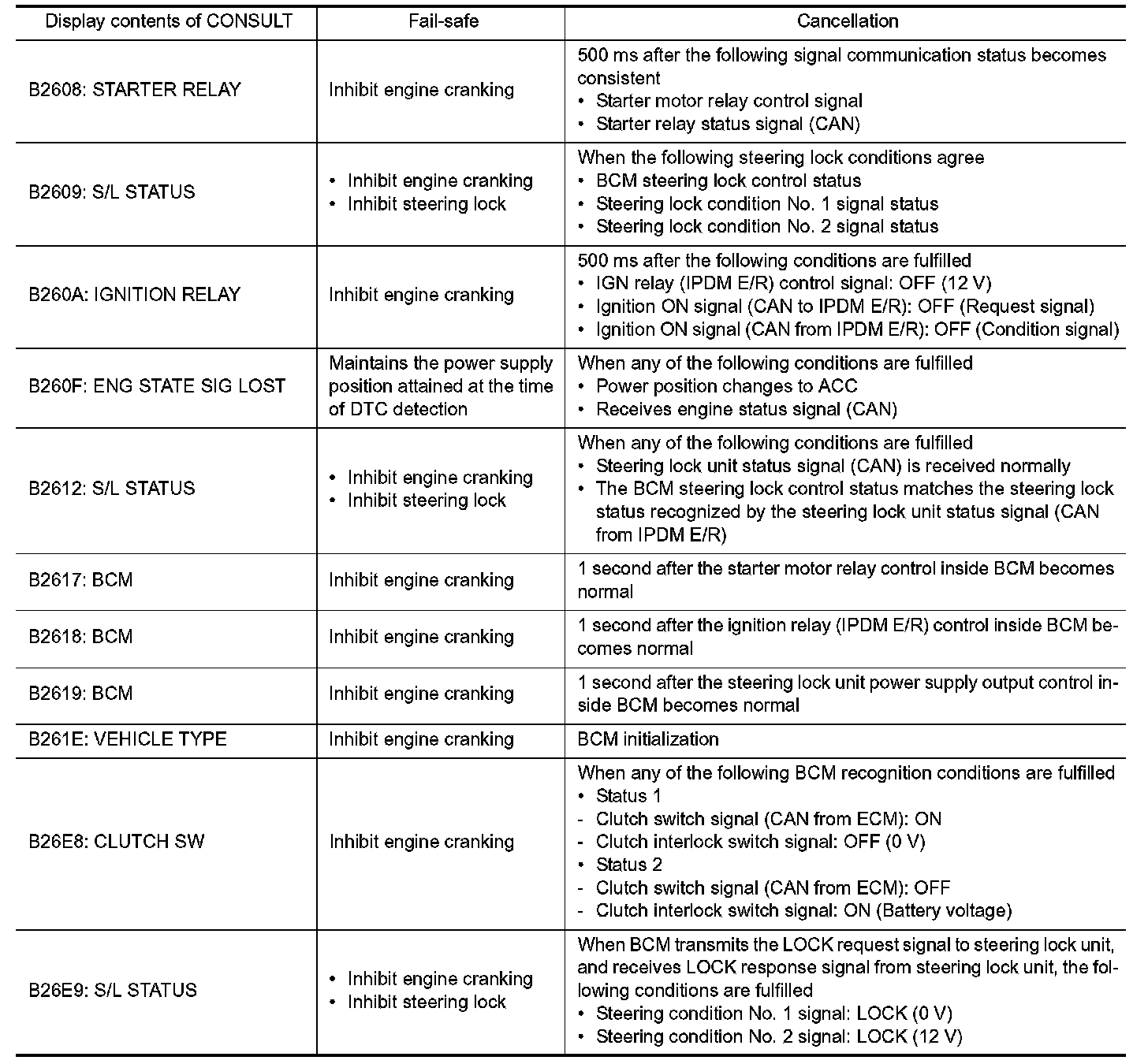

Fail-Safe Chart (Part 1):






Fail-Safe Chart (Part 2):
