Component Function Check

HAZARD SWITCH


Component Function Check

1.CHECK HAZARD SWITCH SIGNAL BY CONSULT-III
CONSULT-III DATA MONITOR
1. Turn the ignition switch ON.
2. Select "HAZARD SW" of BCM (FLASHER) data monitor item.

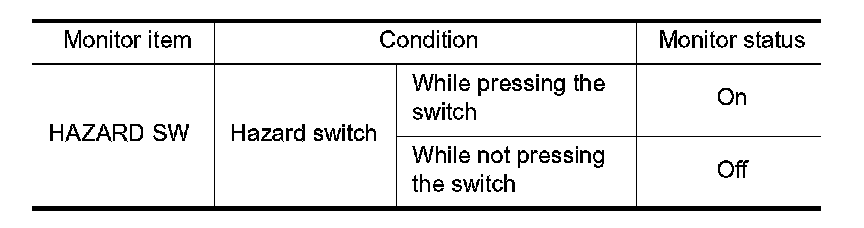

3. With operating the hazard switch, check the monitor status.





Is the item status normal?
YES - Hazard switch circuit is normal.
NO - Diagnosis Procedure.
