Component Function Check

BACK-UP LAMP CIRCUIT


Component Function Check

1.CHECK FUNCTION

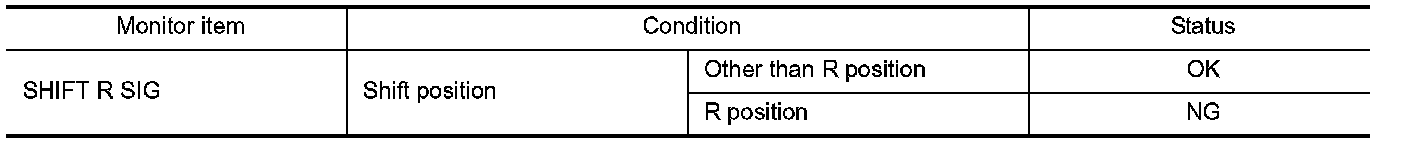

Check "SHIFT R SIG" in "Data Monitor" mode of "RETRACTABLE HARD TOP" using CONSULT-III.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to Parcel Shelf Motor (Draw).
