Turn Signal and Hazard Warning Lamp System
Turn Signal and Hazard Warning Lamp System
COMPONENT PARTS

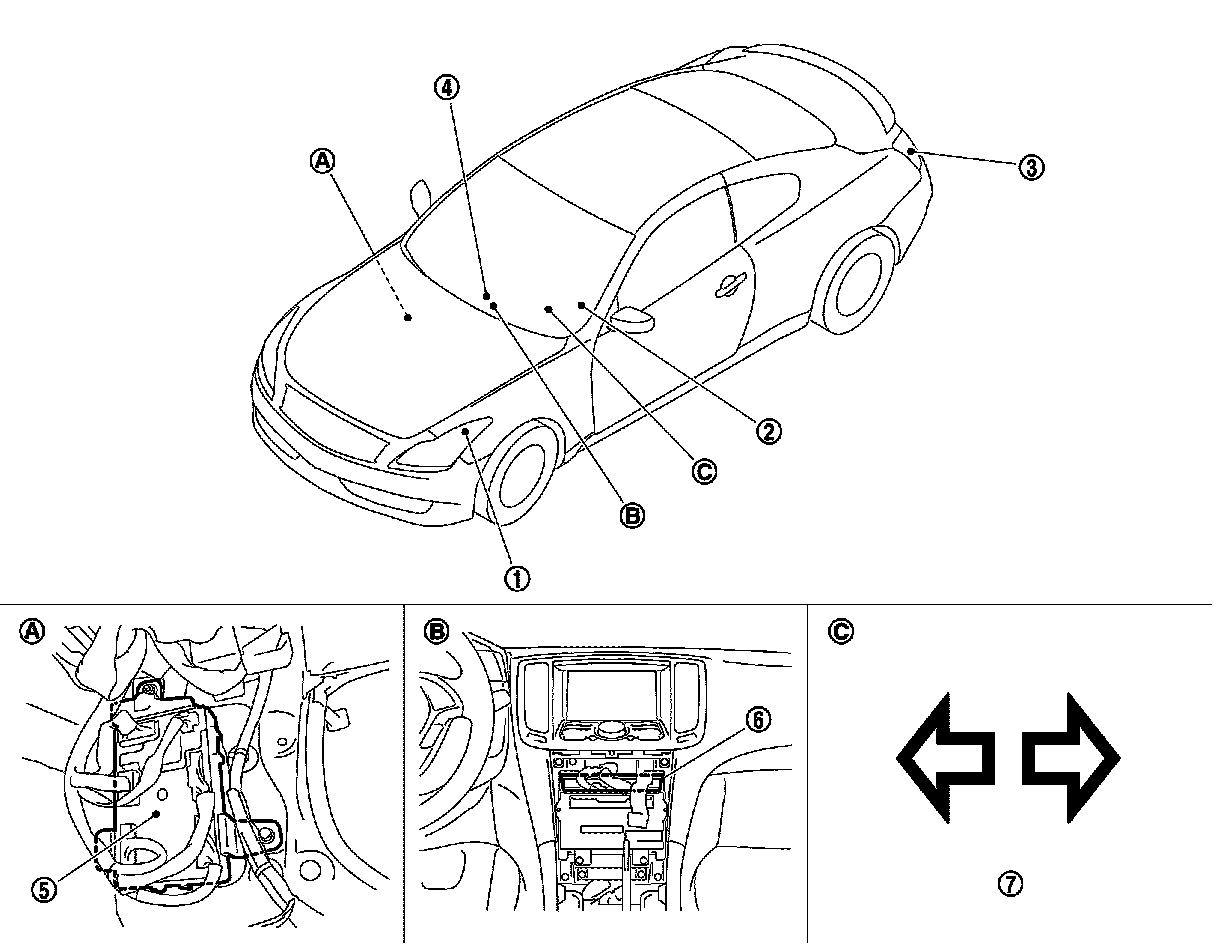

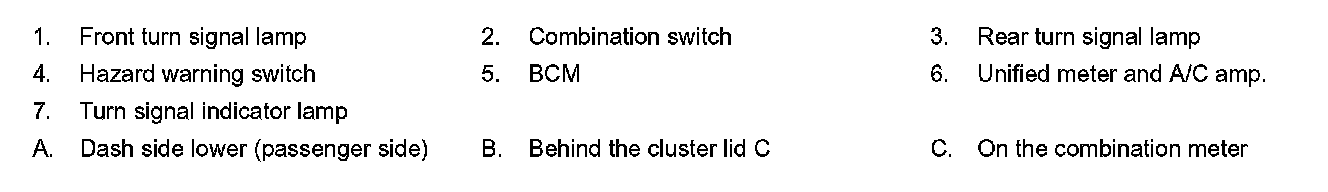

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : Component Parts Location
