Home >> Infiniti >> 2010 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Lighting and Horns >> Locations >> Parking, License Plate and Tail Lamp System

Parking, License Plate and Tail Lamp System





COMPONENT PARTS

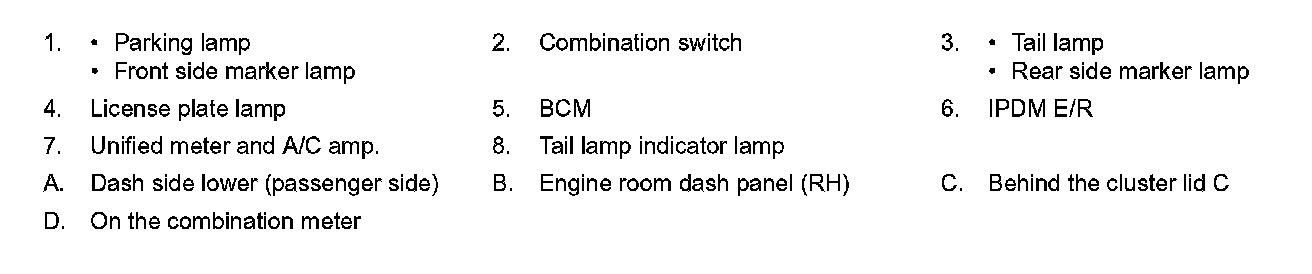

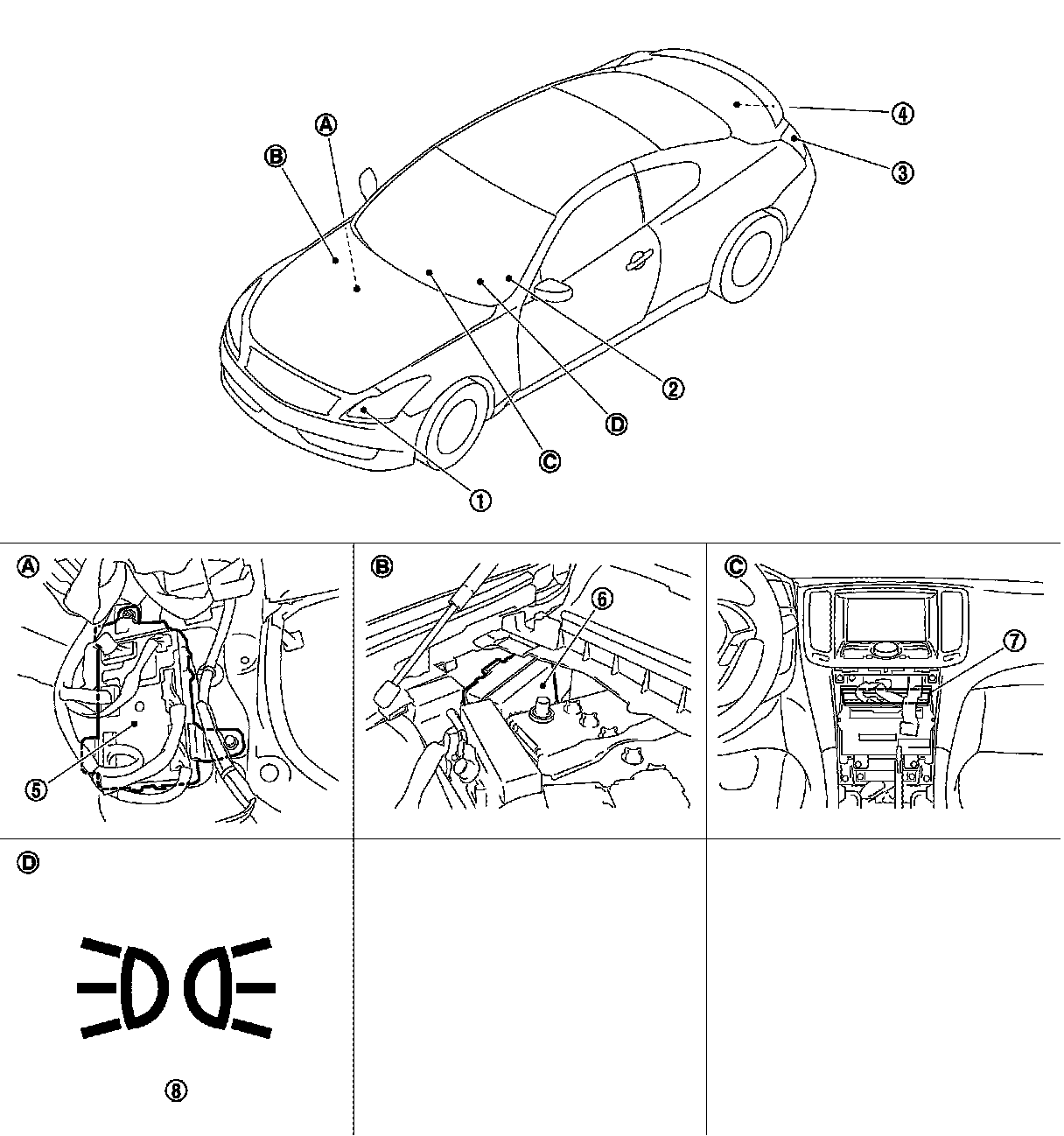

PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : Component Parts Location
