FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Headlamp System
Headlamp System
COMPONENT PARTS

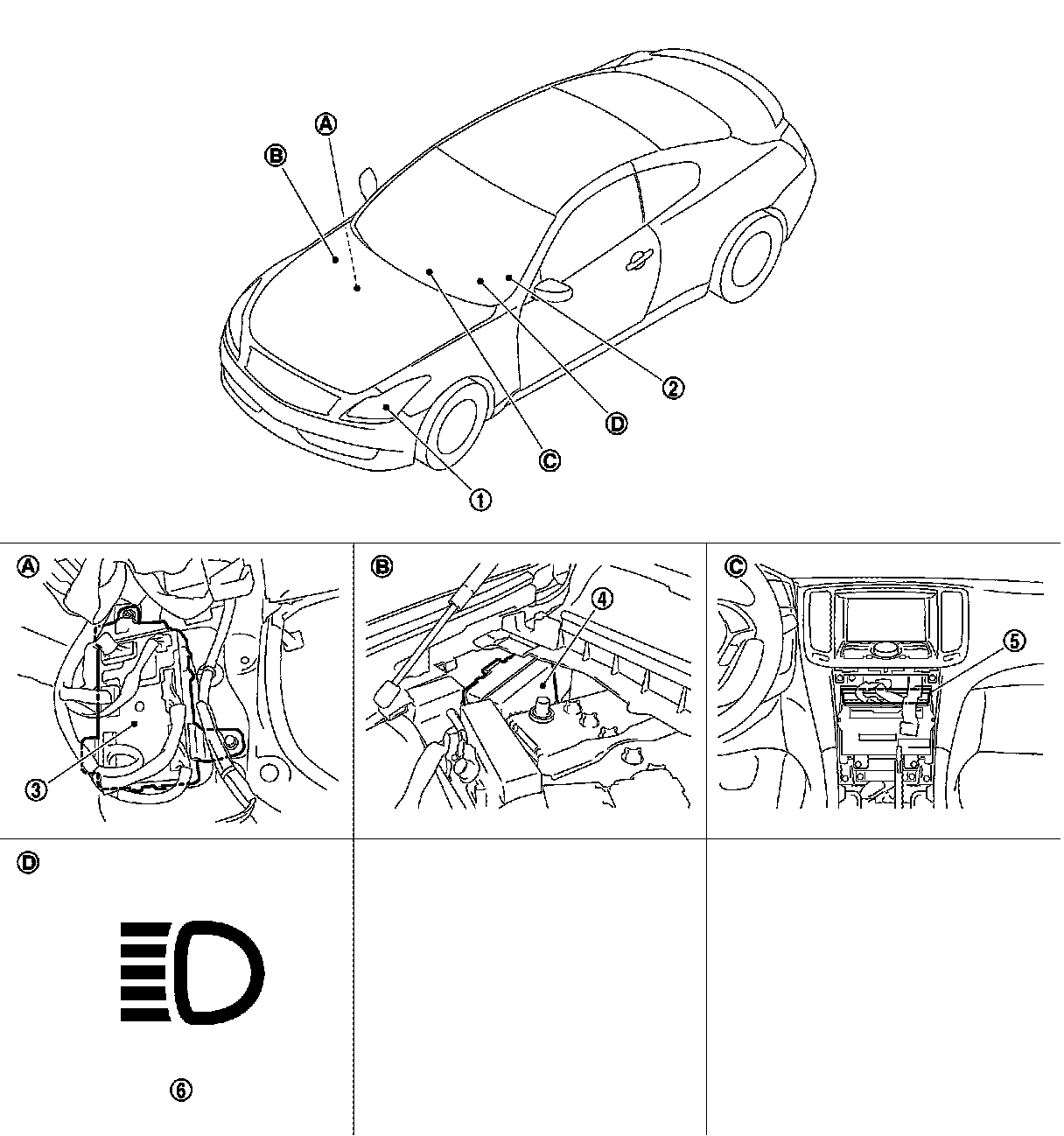

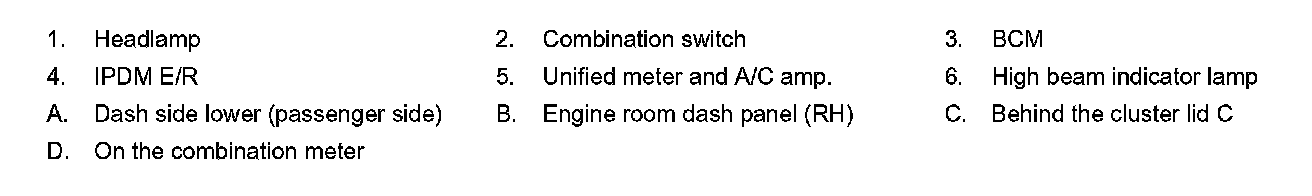

HEADLAMP SYSTEM : Component Parts Location
